Needle Detector Detecting And Testing Machine For Metal Buttons Pearl Cotton
Application Industry :
The needle detector is widely used in clothing production, plastic toy processing industry, shoes, bedding, metal buttons, zipper head, pearl cotton, chemical rubber raw material industry, food production industry, pharmaceutical manufacturing industry, fishery processing industry, meat processing industry and other industries that need to detect metal foreign bodies.
Machine Parameters:
| Model | PT-JZ080 Needle Detector | |||
| Detection Method | magnetic field induced | |||
| Sensitivity | ≥Fe0.8 | ≥Fe1.0 | ≥Fe1.2 | ≥Fe1.5 |
| Detection Height | 100mm | 120mm | 150mm | 200mm |
| Detection width | 600mm | |||
| Detection Adjustment | 0 to 10 level , adjustable | |||
| Alarm Method | sound and light alarm stop back and start up | |||
| Belt Speed | 35m/min (constant speed motor) | |||
| Power supply | Ac220V 50-60Hz | |||
| Capacity | 100W | |||
| Machine Weight | About 180kg | |||
| Machine Size | 1650×1050×900mm (L*W*H) | |||
Machine Features :
1. Adopting Japanese technology, imported movement components and food-grade conveyor belt.
2. Eight functions can be selected (automatic detection function, sensitivity stepless adjustment, counter function, automatic induction start, power saving function, safety protection, conveyor belt stop or automatic return setting function.
3. Able to adapt to long working hours, with 100% effective rate according to regulations.
4. When a broken needle or iron object is detected, sound and light will alarm, and machine will stop and go back to the starting point, operate automatically again.
5. sensitivity 0-10 level adjustment, light touch type operation panel, extremely simple operation.
6. With counting function, distinguish between good and bad products.
7. The machine display date, time and other functions, such as year, month and time.
8. According to different detection requirements, it is equipped with 0-10 level display of sensitivity and induction.
9. Advanced intelligent program control system can set the setting of conveyor belt rewind time and distance when metal detection occurs.
10. Double detection function, compared with other kinds of needle detector, at the same detection height, the sensitivity increased by 10%.

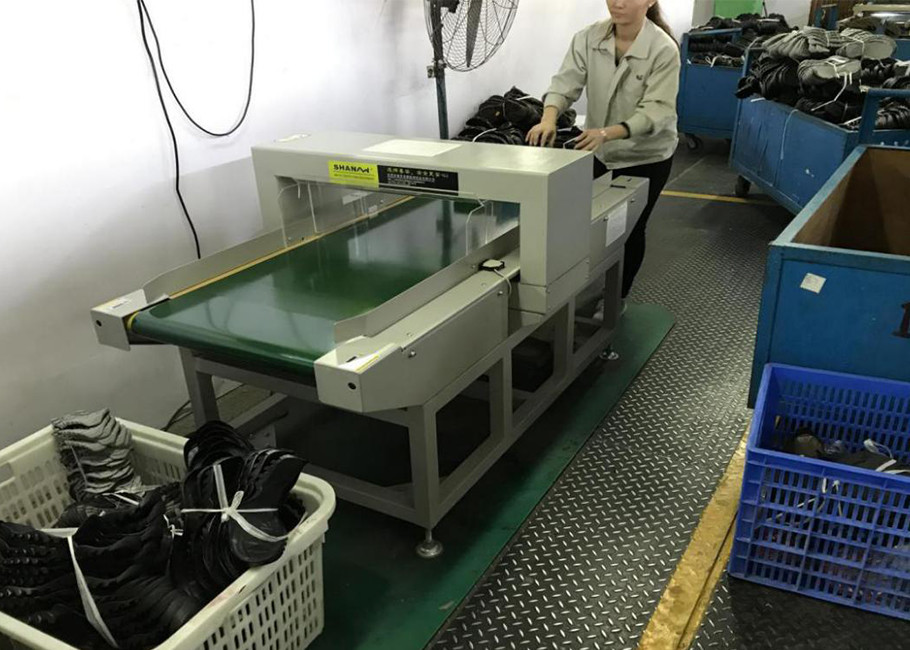

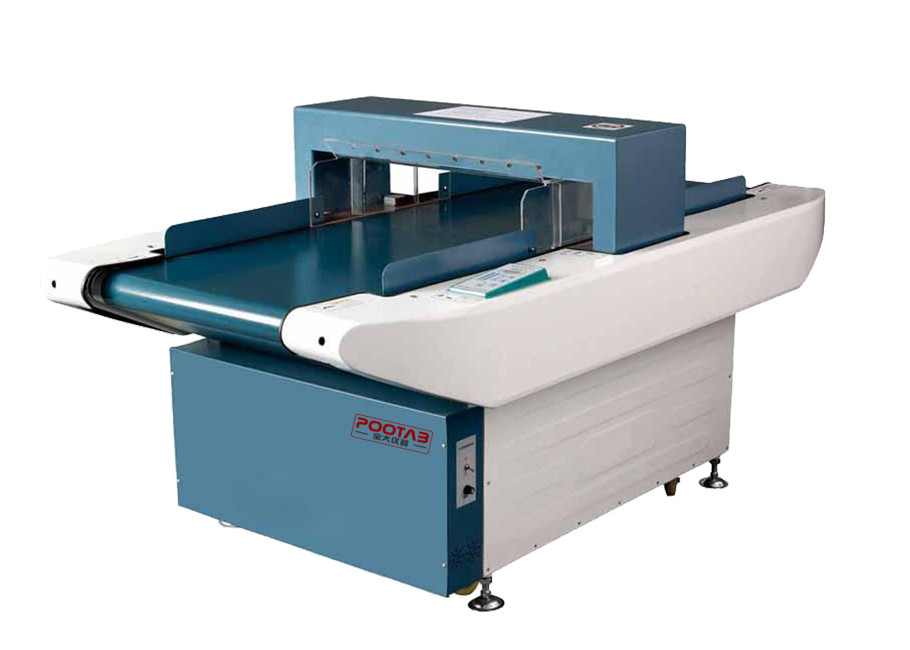

Needle Detector , Metal Detector Photo :
