1PH Hot Air Drying Oven AC220V With Accurate Temperature Control

Negotialble
MOQ
Negotialble
Price
1PH Hot Air Drying Oven AC220V With Accurate Temperature Control
Features Gallery Product Description Request A Quote
Features
Specifications
Accessories: Stainless Steel Tray
Chamber Size: 400*400*400mm
Control System: Digital Display
Heating Source: Electricity
Material: Stainless Steel
Power: 2.0KW
Product Name: Hot Air Drying Oven
Safety Protection: Over Temperature Protection
Temperature Accuracy: ±1℃
Temperature Range: 50-300℃
Temperature Uniformity: ±2℃
Timing Range: 1-9999min
Voltage: 220V/50Hz
Warranty: 1 Year
High Light:

Hot Air Drying Digital Display Oven

,

AC220V Hot Air Drying Digital Oven

,

1PH Drying Hot Air Digital Oven

Basic Infomation
Place of Origin: Guangdong
Brand Name: Pootab
Model Number: PT-2010
Payment & Shipping Terms
Packaging Details: Negotialble
Payment Terms: Negotialble
Product Description

Product Description:

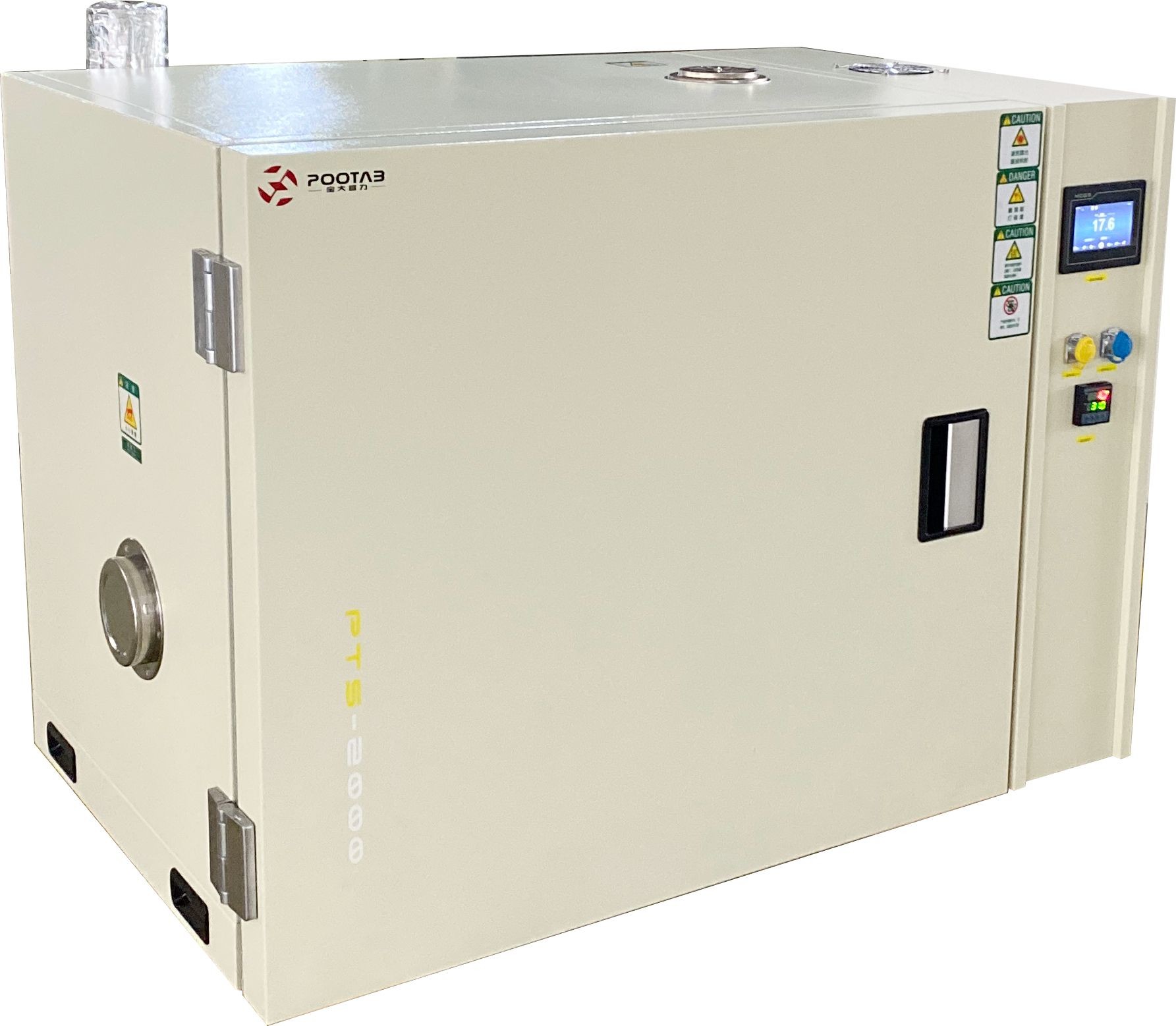

The PT-2010 Precision Oven is a high-quality and reliable oven designed for drying, baking, and preheating various materials or samples. It employs a hot air circulation system to ensure uniform temperature distribution within the chamber.



Features:

  • Innovative streamlined arc design with a cold-rolled steel plate exterior and electrostatic spray coating.
  • Microcomputer single-chip technology for temperature control, timing, and over-temperature alarm.
  • Well-designed air duct and circulation system for minimal temperature deviation inside the working chamber.
  • Intelligent digital temperature control display for accurate and intuitive readings, with parameter adjustment through a keypad.
  • Capacitive-type imported temperature sensors for precise temperature measurement.
  • Equipped with timing and countdown functions.
  • Mirror-finished stainless steel interior with rounded corners for easy cleaning.
  • Adjustable height and number of shelves in the working chamber to meet user requirements.
  • Micro-motor and fan for gentle air circulation, eliminating concerns about blowing away small or powdered items.
  • Large-angle insulated tempered glass door for easy observation, featuring nano-material door seals and insulation materials for superior performance.


Technical Parameters:


Model PT-2010A PT-2010B
Internal Dimensions (W×D×H) 40×40×45 cm 50×50×60 cm
External Dimensions (W×D×H) 62×52×91 cm 67×62×111 cm
Temperature Range Ambient +5℃ to 200℃
Control Mode P.I.D. Automatic Temperature Calculation
Temperature Resolution 0.1℃
Temperature Sensor PT100, Class A
Control Accuracy ±0.3 ℃
Distribution Accuracy ±1%(1℃) at - room100℃
Time Control 0~999.9 hours (minutes) with TIMER and HOLD switches
Standard Accessories Adjustable shelves (2 pieces), observation window (no observation window above 200℃)
Heating Method Hot air circulation
Safety Protection Independent EGO over-temperature power-off, safety overload switch
Manufacturing Material Internal: SUS#304 stainless steel plate, External: baked enamel coating
Power Supply 1PH, AC220V, 50/60Hz, 10A


Structure:

Classic Taiwanese design with electrical components placed at the bottom to avoid aging due to high temperatures, prolonging the lifespan.
Adjustable door closure tightness with a molded silicone rubber door seal, ensuring a tight seal.
Thickened insulation layer for high-temperature safety.

Control and Execution System:

Intelligent digital temperature control instrument for temperature regulation.
Pt100 platinum resistance temperature sensor for temperature measurement.



Protection System:

Over-temperature protection and alarm device for comprehensive machine protection.
Ensures the integrity of executing components and test samples.



Product Specifications:

Suitable for drying, baking, and preheating various materials or samples. The internal chamber adopts a hot air circulation method, ensuring uniform temperature distribution.

Model Internal Dimensions (W×D×H) External Dimensions (W×D×H) Temperature Range Control Mode Temperature Resolution Temperature Sensor Control Accuracy Distribution Accuracy Time Control Standard Accessories Heating Method Safety Protection Manufacturing Material Power Supply
PT-2010A 40×40×45 cm 62×52×91 cm Ambient +5℃ to 200℃ P.I.D. Automatic Temperature Calculation 0.1℃ PT100, Class A ±0.3 ℃ ±1%(1℃) at - room100℃ 0~999.9 hours (minutes) with TIMER and HOLD switches Adjustable shelves (2 pieces), observation window (no observation window above 200℃) Hot air circulation Independent EGO over-temperature power-off, safety overload switch Internal: SUS#304 stainless steel plate, External: baked enamel coating 1PH, AC220V, 50/60Hz, 10A



FAQ:

What is the temperature range of the PT-2010 Precision Oven?
The temperature range is from ambient +5℃ to 200℃.

What is the control accuracy of the oven?
The control accuracy is ±0.3℃.

Can I adjust the shelves inside the working chamber?
Yes, the shelves are adjustable in terms of height and quantity according to user requirements.

Does the oven have a timer function?
Yes, it has a time control feature with a range of 0 to 999.9 hours (or minutes).

What safety features are included in the oven?
The oven is equipped with an independent EGO over-temperature power-off system and a safety overload switch.
