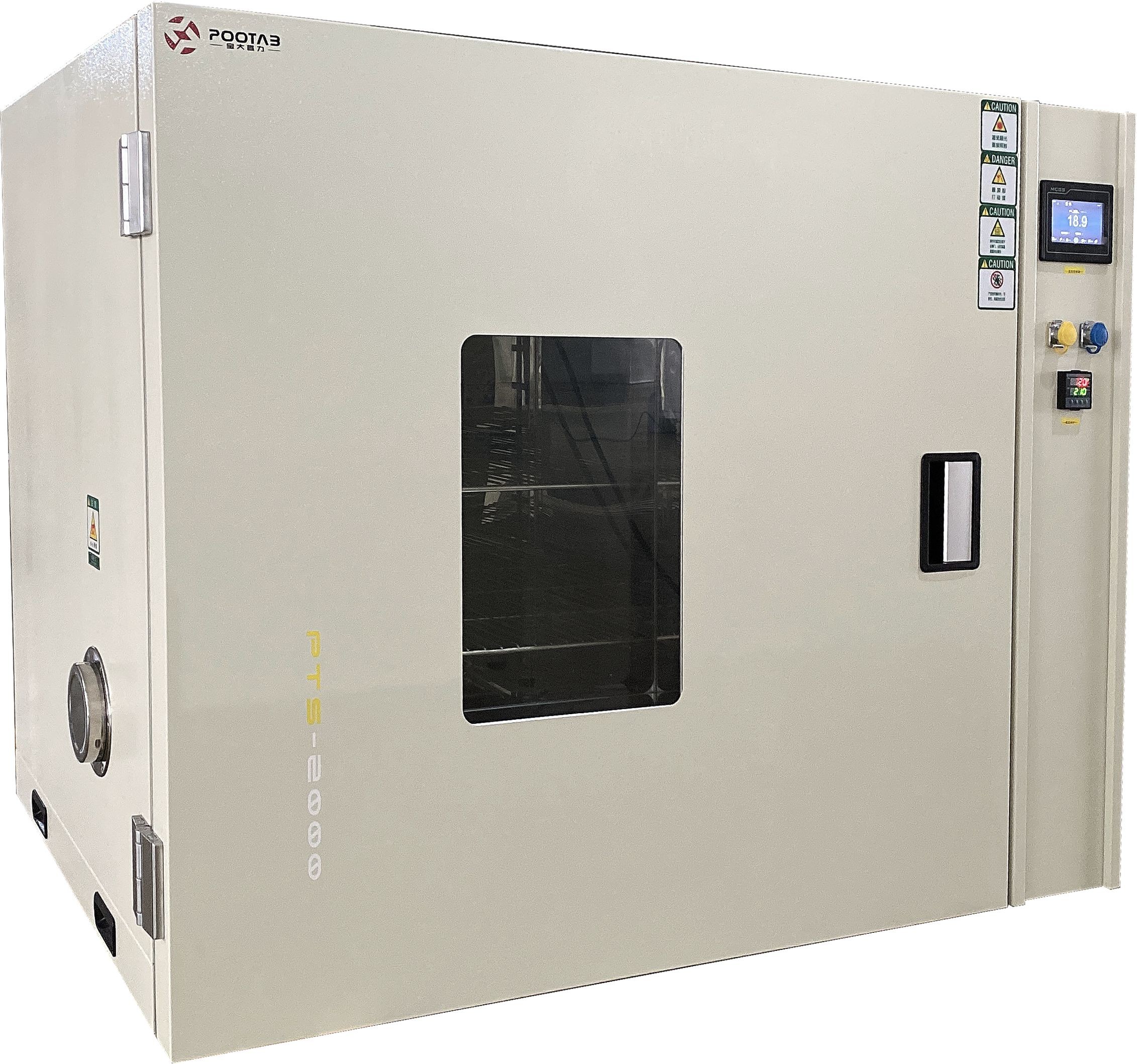

Electricity Hot Air Drying Stainless Oven 2.0KW With Accurate Temperature Control

Electricity Hot Air Drying Stainless Oven 2.0KW With Accurate Temperature Control
Features Gallery Product Description Request A Quote
Accessories: Stainless Steel Tray
Chamber Size: 400*400*400mm
Control System: Digital Display
Heating Source: Electricity
Material: Stainless Steel
Power: 2.0KW
Product Name: Hot Air Drying Oven
Safety Protection: Over Temperature Protection
Temperature Accuracy: ±1℃
Temperature Range: 50-300℃
Temperature Uniformity: ±2℃
Timing Range: 1-9999min
Voltage: 220V/50Hz
Warranty: 1 Year
High Light:

Electricity Hot Air Drying Stainless Oven


400*400*400mm Hot Air Drying Stainless Oven


2.0KW Electricity Hot Air Drying Oven

Basic Infomation
Place of Origin: Guangdong
Brand Name: Pootab
Model Number: PT-2010
Payment & Shipping Terms
Packaging Details: Negotialble
Payment Terms: Negotialble
Product Description

Product Description:

The PT-2010 Precision Oven is a versatile drying and heating equipment designed for various materials and samples. It utilizes a hot air circulation system to ensure uniform temperature distribution within its chamber. The oven features a sleek and ergonomic design with a robust construction using cold-rolled steel plates and electrostatic powder coating. It is equipped with an intelligent microcomputer-based temperature control system, providing precise temperature regulation, timing functions, and over-temperature alarm capabilities. The interior chamber is made of mirror-finished stainless steel for easy cleaning, and the oven door is fitted with a large viewing angle insulated tempered glass for convenient observation. The PT-2010 oven is suitable for applications such as drying, baking, and preheating in research laboratories, industrial facilities, and quality control departments.



  • Innovative streamlined arc design with a cold-rolled steel plate exterior and electrostatic spray coating.
  • Microcomputer single-chip technology for temperature control, timing, and over-temperature alarm.
  • Well-designed air duct and circulation system for minimal temperature deviation inside the working chamber.
  • Intelligent digital temperature control display for accurate and intuitive readings, with parameter adjustment through a keypad.
  • Capacitive-type imported temperature sensors for precise temperature measurement.
  • Equipped with timing and countdown functions.
  • Mirror-finished stainless steel interior with rounded corners for easy cleaning.
  • Adjustable height and number of shelves in the working chamber to meet user requirements.
  • Micro-motor and fan for gentle air circulation, eliminating concerns about blowing away small or powdered items.
  • Large-angle insulated tempered glass door for easy observation, featuring nano-material door seals and insulation materials for superior performance.

Technical Parameters:

Model PT-2010A PT-2010B
Internal Dimensions (W×D×H) 40×40×45 cm 50×50×60 cm
External Dimensions (W×D×H) 62×52×91 cm 67×62×111 cm
Temperature Range Ambient +5℃ to 200℃
Control Mode P.I.D. Automatic Temperature Calculation
Temperature Resolution 0.1℃
Temperature Sensor PT100, Class A
Control Accuracy ±0.3 ℃
Distribution Accuracy ±1%(1℃) at - room100℃
Time Control 0~999.9 hours (minutes) with TIMER and HOLD switches
Standard Accessories Adjustable shelves (2 pieces), observation window (no observation window above 200℃)
Heating Method Hot air circulation
Safety Protection Independent EGO over-temperature power-off, safety overload switch
Manufacturing Material Internal: SUS#304 stainless steel plate, External: baked enamel coating
Power Supply 1PH, AC220V, 50/60Hz, 10A


Classic Taiwanese design with electrical components placed at the bottom to avoid aging due to high temperatures, prolonging the lifespan.
Adjustable door closure tightness with a molded silicone rubber door seal, ensuring a tight seal.
Thickened insulation layer for high-temperature safety.

Control and Execution System:

Intelligent digital temperature control instrument for temperature regulation.
Pt100 platinum resistance temperature sensor for temperature measurement.


Protection System:

Over-temperature protection and alarm device for comprehensive machine protection.
Ensures the integrity of executing components and test samples.


Support and Services:

For any inquiries, technical support, or service-related issues, please contact our customer support team at [contact information]. Our knowledgeable staff is available to assist you with any questions or concerns you may have regarding the PT-2010 Precision Oven.



What is the temperature range of the PT-2010 Precision Oven?
The temperature range is ambient +5℃ to 200℃.

What is the control accuracy of the oven?
The control accuracy is ±0.3 ℃.

What is the power supply requirement for the oven?
The oven operates on a 1-phase AC220V supply at 50/60Hz, with a current rating of 10A.

How many shelves are included with the oven?
The oven comes with 2 adjustable shelves as standard.
