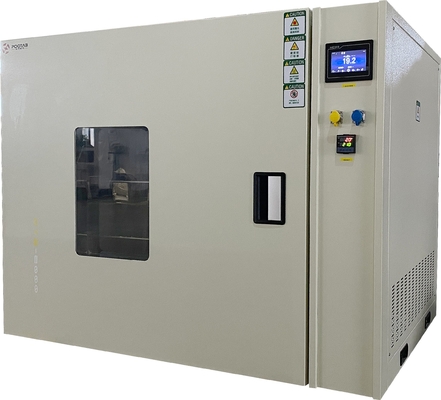

Digital Display Hot Air Drying Oven 400*400*400mm 2.0KW With Temperature Control

Negotialble
MOQ
Negotialble
Price
Digital Display Hot Air Drying Oven 400*400*400mm 2.0KW With Temperature Control
Features Gallery Product Description Request A Quote
Features
Specifications
Accessories: Stainless Steel Tray
Chamber Size: 400*400*400mm
Control System: Digital Display
Heating Source: Electricity
Material: Stainless Steel
Power: 2.0KW
Product Name: Hot Air Drying Oven
Safety Protection: Over Temperature Protection
Temperature Accuracy: ±1℃
Temperature Range: 50-300℃
Temperature Uniformity: ±2℃
Timing Range: 1-9999min
Voltage: 220V/50Hz
Warranty: 1 Year
High Light:

Digital Display Hot Air Drying Oven

,

2.0KW Hot Air Drying Oven

,

400*400*400mm Drying Hot Air Oven

Basic Infomation
Place of Origin: Guangdong
Brand Name: Pootab
Model Number: PT-2010
Payment & Shipping Terms
Packaging Details: Negotialble
Payment Terms: Negotialble
Product Description

Product Description:

The PT-2010 Precision Oven is a high-precision drying and baking equipment designed for various materials and samples. It features a streamlined arc design, with a cold-rolled steel plate housing that is surface-coated with electrostatic powder for durability. The oven is equipped with an advanced microcomputer single-chip temperature control system, ensuring precise temperature control, timing functions, and over-temperature alarm. It has a well-designed air duct and circulation system that minimizes temperature variation within the chamber. The oven also features an intelligent digital temperature control display, allowing for accurate and intuitive readings, and parameter adjustment through keypad operation. The interior chamber is made of mirror-finished stainless steel, making it easy to clean, and the shelves can be adjusted according to user requirements. With its motor and fan for gentle air circulation, the oven eliminates concerns about blowing away small or powdery items. The door is fitted with a large viewing angle insulated tempered glass, allowing for easy observation, and it is equipped with nanomaterial door seals and insulation materials to enhance overall performance.



Features:

  • Imported original control components for product accuracy
  • Innovative streamlined arc design with a cold-rolled steel plate housing
  • Microcomputer single-chip temperature control system with precise control, timing, and over-temperature alarm
  • Well-designed air duct and circulation system for minimal temperature variation
  • Intelligent digital temperature control display for accurate and intuitive readings
  • Capacitive temperature control sensor with imported components
  • Timer and timing functions available
  • Mirror-finished stainless steel interior chamber with easy-to-clean semi-circular corners
  • Adjustable shelves and customizable interior height
  • Motor and fan for gentle air circulation
  • Large viewing angle insulated tempered glass door
  • Nanomaterial door seals and insulation materials for enhanced performance


Technical Parameters:


Model PT-2010A PT-2010B
Internal Dimensions (W×D×H) 40×40×45 cm 50×50×60 cm
External Dimensions (W×D×H) 62×52×91 cm 67×62×111 cm
Temperature Range Ambient +5℃ to 200℃
Control Mode P.I.D. Automatic Temperature Calculation
Temperature Resolution 0.1℃
Temperature Sensor PT100, Class A
Control Accuracy ±0.3 ℃
Distribution Accuracy ±1%(1℃) at - room100℃
Time Control 0~999.9 hours (minutes) with TIMER and HOLD switches
Standard Accessories Adjustable shelves (2 pieces), observation window (no observation window above 200℃)
Heating Method Hot air circulation
Safety Protection Independent EGO over-temperature power-off, safety overload switch
Manufacturing Material Internal: SUS#304 stainless steel plate, External: baked enamel coating
Power Supply 1PH, AC220V, 50/60Hz, 10A


Structure:

Classic Taiwanese design with electrical components placed at the bottom to avoid aging due to high temperatures, prolonging the lifespan.
Adjustable door closure tightness with a molded silicone rubber door seal, ensuring a tight seal.
Thickened insulation layer for high-temperature safety.

Control and Execution System:

Intelligent digital temperature control instrument for temperature regulation.
Pt100 platinum resistance temperature sensor for temperature measurement.



Protection System:

Over-temperature protection and alarm device for comprehensive machine protection.
Ensures the integrity of executing components and test samples.



Product Specifications:

Suitable for drying, baking, and preheating various materials or samples. The internal chamber adopts a hot air circulation method, ensuring uniform temperature distribution.

Model Internal Dimensions (W×D×H) External Dimensions (W×D×H) Temperature Range Control Mode Temperature Resolution Temperature Sensor Control Accuracy Distribution Accuracy Time Control Standard Accessories Heating Method Safety Protection Manufacturing Material Power Supply
PT-2010A 40×40×45 cm 62×52×91 cm Ambient +5℃ to 200℃ P.I.D. Automatic Temperature Calculation 0.1℃ PT100, Class A ±0.3 ℃ ±1%(1℃) at - room100℃ 0~999.9 hours (minutes) with TIMER and HOLD switches Adjustable shelves (2 pieces), observation window (no observation window above 200℃) Hot air circulation Independent EGO over-temperature power-off, safety overload switch Internal: SUS#304 stainless steel plate, External: baked enamel coating 1PH, AC220V, 50/60Hz, 10A



FAQ:

What is the temperature range of the PT-2010 Precision Oven?
The temperature range is from ambient +5℃ to 200℃.

What is the control accuracy of the oven?
The control accuracy is ±0.3℃.

Can I adjust the shelves inside the working chamber?
Yes, the shelves are adjustable in terms of height and quantity according to user requirements.

Does the oven have a timer function?
Yes, it has a time control feature with a range of 0 to 999.9 hours (or minutes).

What safety features are included in the oven?
The oven is equipped with an independent EGO over-temperature power-off system and a safety overload switch.
