Name: PT-8S Digital Rotational Viscometer
Brand: Perfect International Instruments Co., Ltd
SKU: PT-8S
Price: Negotiable USD
Availability: InStock

PT-8S Digital Rotational Viscometer

Negotialble

MOQ

Negotialble

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Timed Measurement Function: Available

Model: PT-8S

Measuring Range: 1 ~ 2×10⁶ MPa·s

Operation Interface: Chinese / English

Basic Infomation

Place of Origin: Guangdong

Brand Name: Pootab

Certification: CE / IS09001

Model Number: PT-8S

Payment & Shipping Terms

Packaging Details: Negotialble

Payment Terms: Negotialble

Gallery

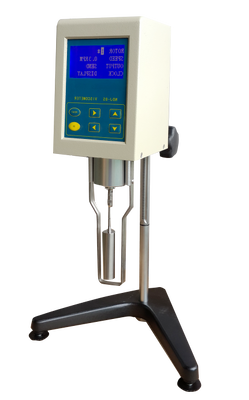

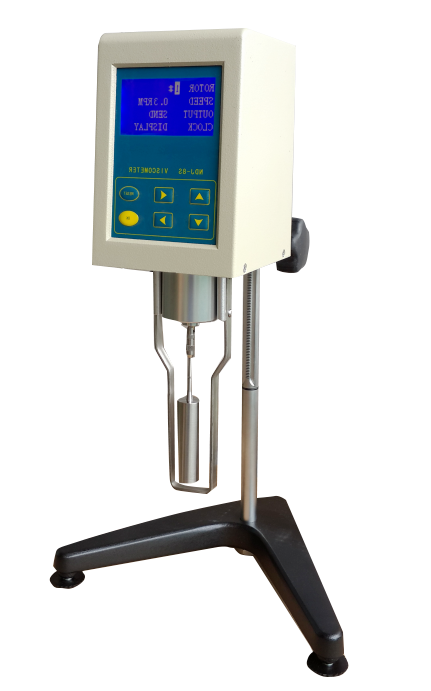

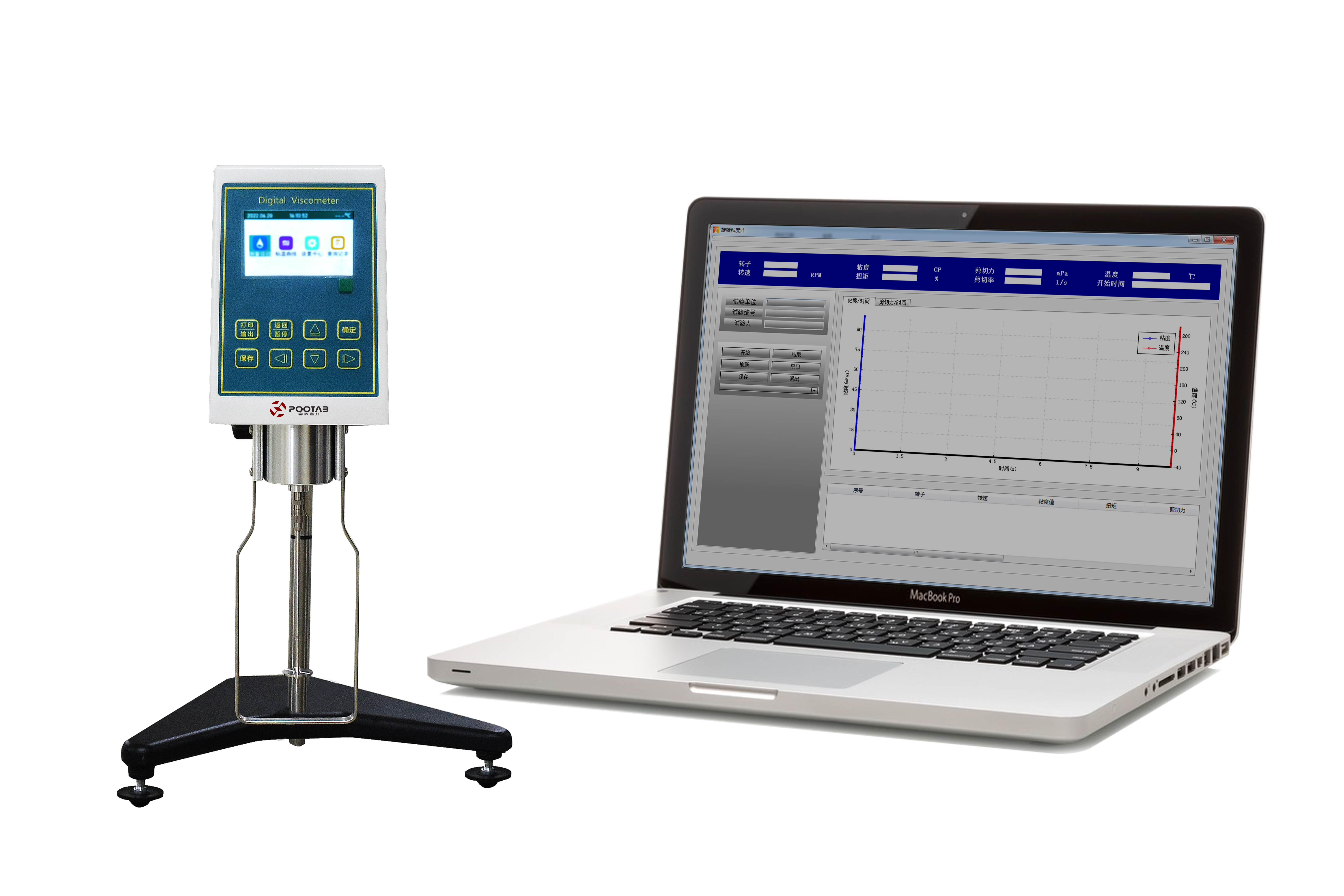

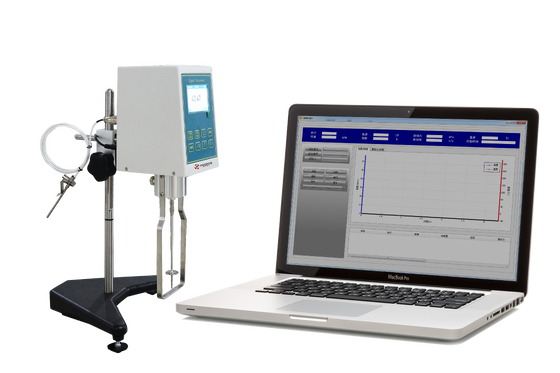

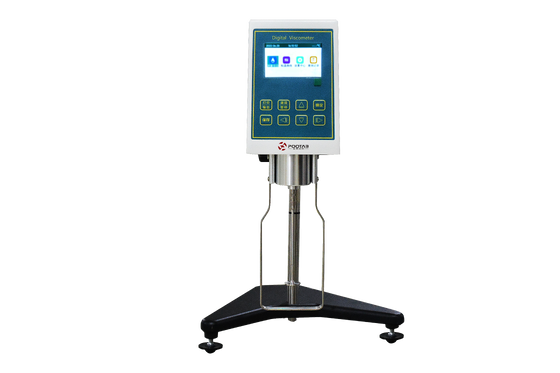

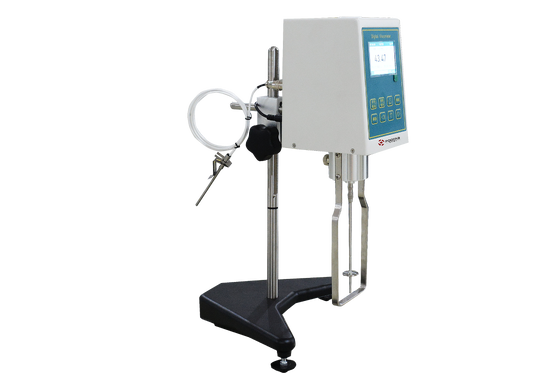

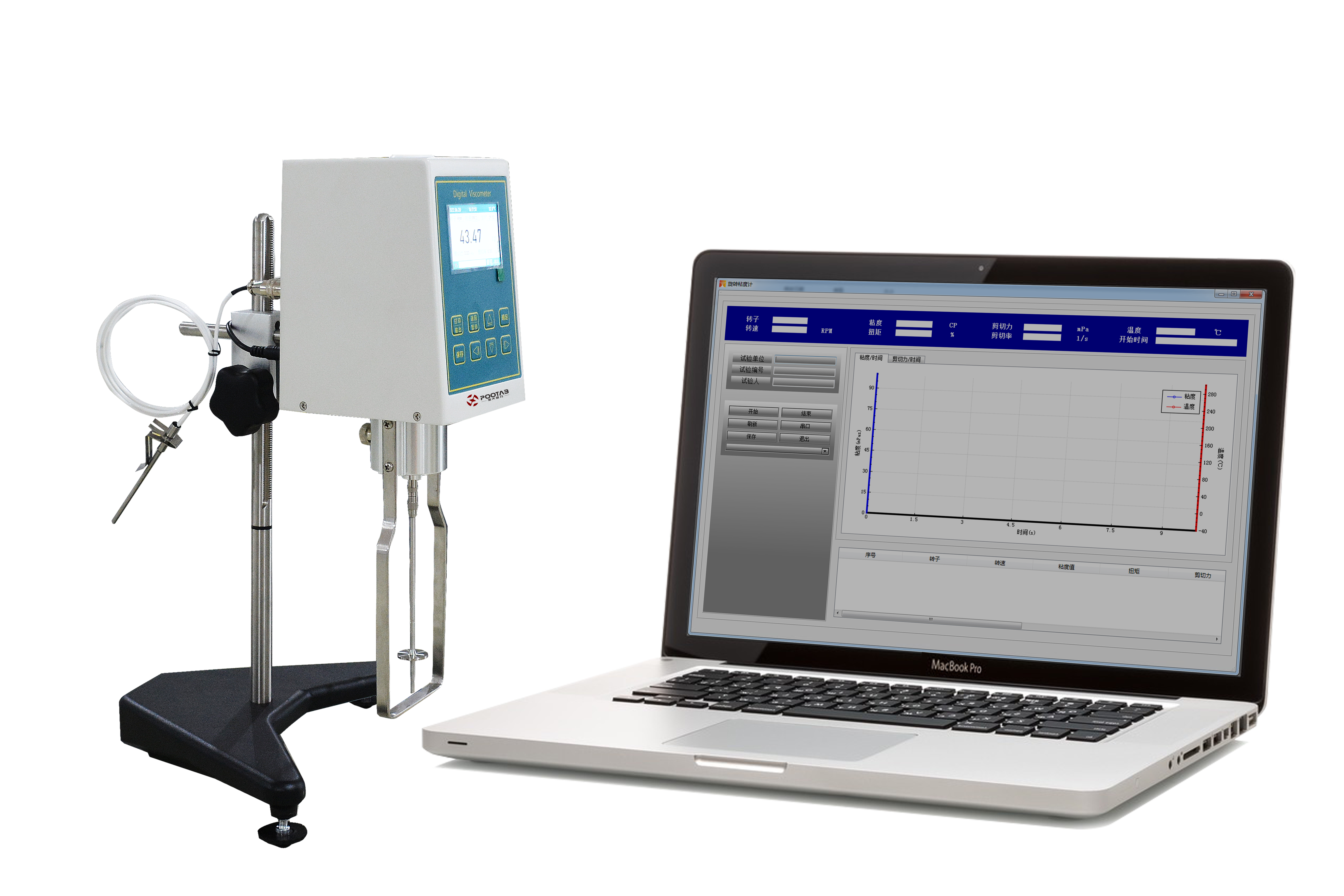

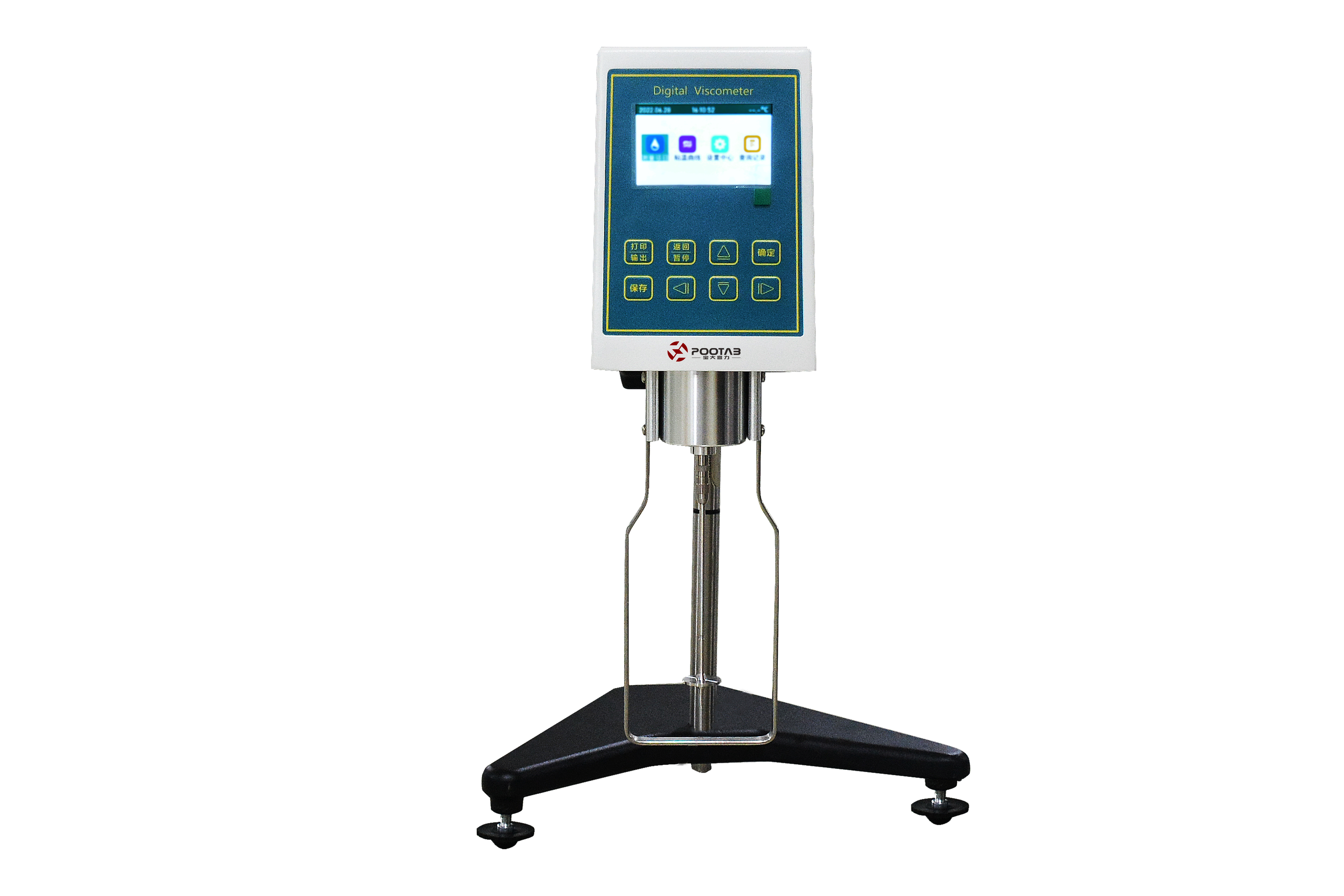

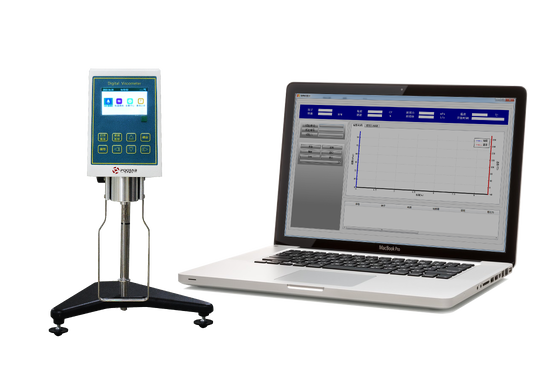

PT-8S Digital Rotational Viscometer

Product Description

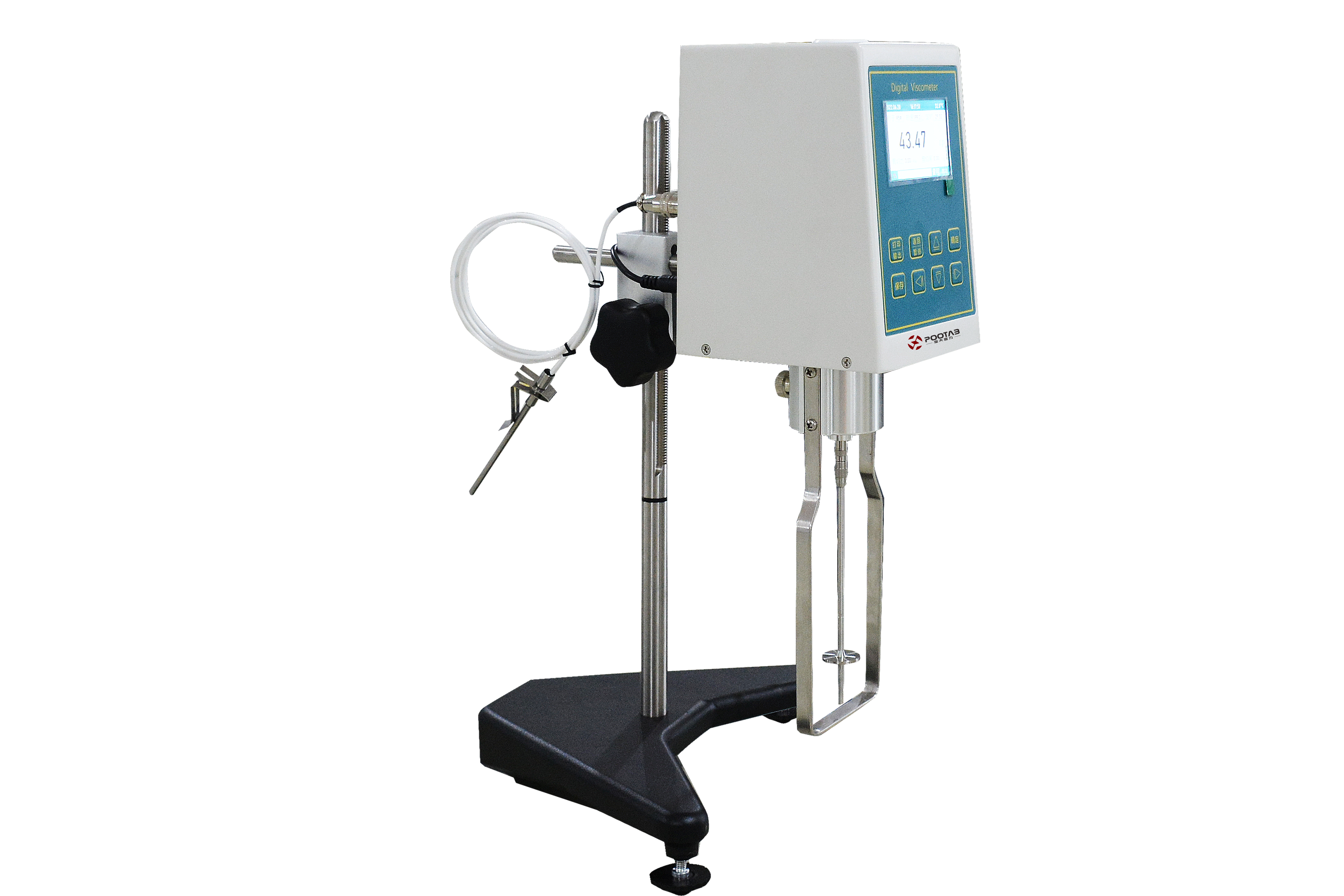

PT-8S Digital Rotational Viscometer

Features:

1. This instrument is a digital viscometer, where the motor drives the rotor at a constant speed via a speed reducer. When the rotor rotates in the liquid, the liquid generates a viscous torque acting on the rotor—the greater the viscosity of the liquid, the larger this viscous torque becomes; conversely, the smaller the viscosity of the liquid, the smaller the viscous torque. The viscous torque acting on the rotor is detected by the sensor and processed by the computer to determine the viscosity of the measured liquid.

2. This instrument utilizes microcomputer technology, allowing for convenient range setting (rotor number and speed). It digitally processes data detected by the sensor and clearly displays on the screen the set rotor number, speed, viscosity value of the measured liquid, and its full-scale percentage during measurement.

3. The instrument is equipped with four rotors (No. 1, 2, 3, and 4) and eight speed settings (0.3, 0.6, 1.5, 3, 6, 12, 30, and 60 revolutions per minute), forming 32 combinations to measure the viscosity of various liquids within the specified range.

Item	Specification
Measuring Range	1 ~ 2×10⁶ mPa·s
Rotor Specifications	Rotors No.1–4; Optional No.0 rotor for low viscosity measurement down to 0.1 mPa·s
Rotor Speed	0.3, 0.6, 1.5, 3, 6, 12, 30, 60 rpm
Auto Mode	Automatically selects the appropriate rotor number and speed
Operation Interface	Chinese / English
Reading Stability Cursor	The reading is basically stable when the vertical bar block cursor is fully filled
Measurement Accuracy	±2% (for Newtonian liquids)
Power Supply	AC 220V±10%, 50Hz±10%
Operating Environment	Temperature: 5℃~35℃, relative humidity ≤80%
Overall Dimensions	370×325×280 mm
