ASTM D1000 High Speed Unwind Tester , Uncoil Testing Machine For Peeling Whole Tape
PT-6088B High Speed Unwind Tester.pdf
Use: With high speed to peel off entire roll adhesive tape, to observed strength change and analysis size of peel force during entire roll adhesive tape stripping process, as adhesive tape at high speed unwound provide references when in use.
Design Standards:PSTC-13 ASTM D1000
| Model | PT-6088B |
| Standard Specimen Size | Within reel diameter 75mm and width 75mm (reel can be customized), the maximum outer diameter of 300mm. |
| Capacity | 10kg,20kg,50kg Option One |
| Force Accuracy | ±0.5% |
| Force Resolution | 1/300,000 |
| Test Software | special software for unwind test, automatic recording of the time unwound 25%, 50% and 75% force value. |
| Unwinding Speed Range | 0 ~ 122m/min±3 m/min (can be set) |
| Unit Switch | All units can be arbitrarily selected; you can also define you own units. After test is completed also can be any conversion. |
| Dimension | About 50*40*30cm(W*D*H) |
| Machine Weight | About 27kg(not include packing) |
| Power | 1/2PH,AC220V(or 110V),5A |
Invention Patent No.: ZL 2013 1 0292082.7
Utility Model Patent No.: ZL 2013 2 0413979.6

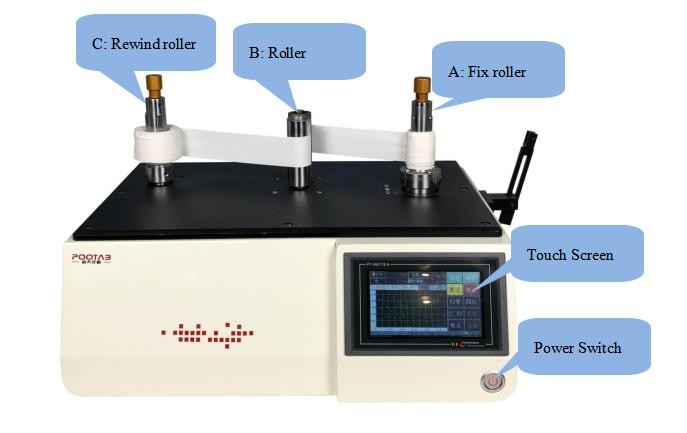

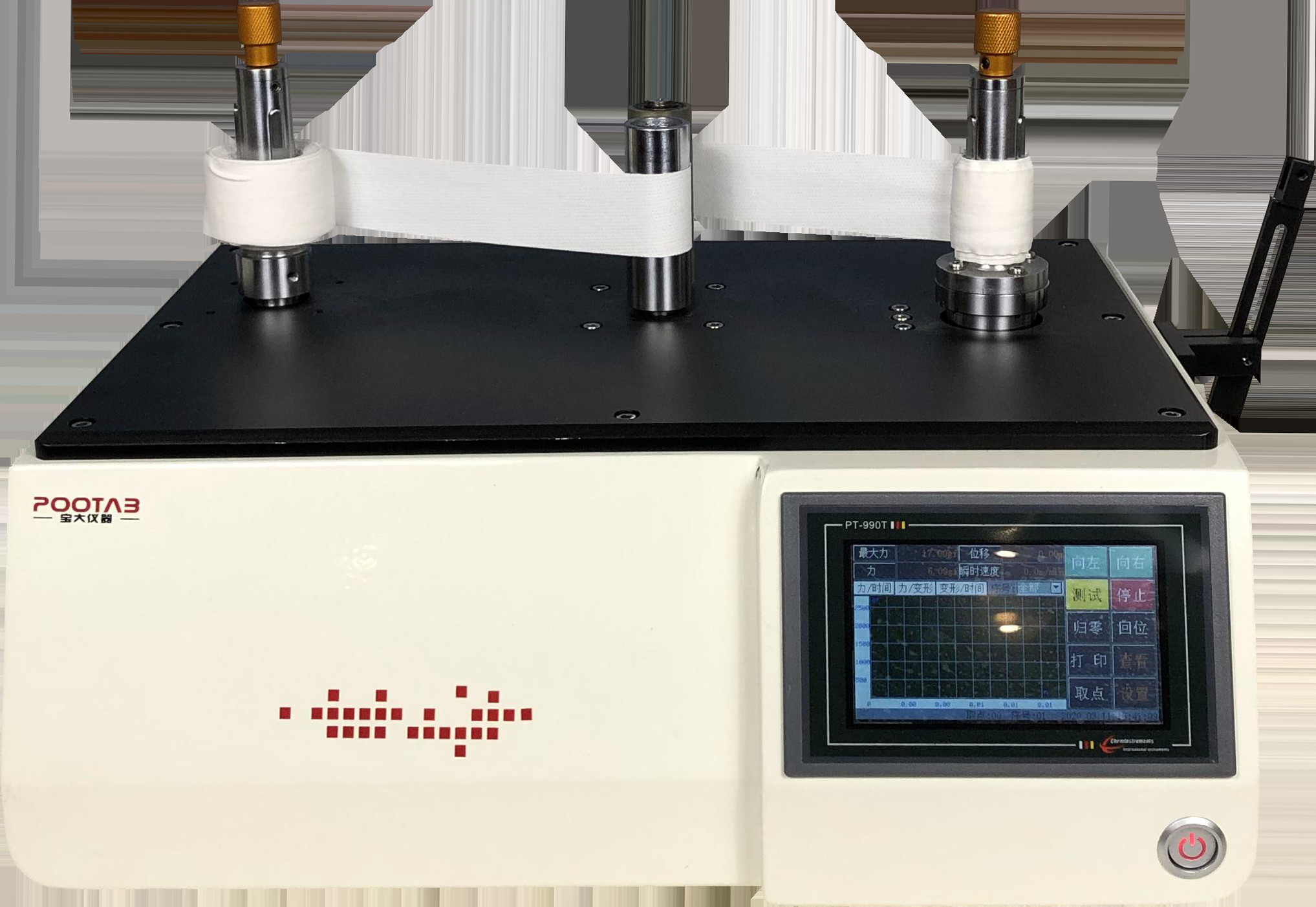

Machine Picture:
Screen Display:
