PSTC -16 Loop Tack Testing Machine , Primary Adhesion Tester 50N ASTM D6195
Application : The loop tack tester is mainly used for the initial adhesion of various kinds of tapes, adhesives and other products. It is to separate the annular sample and the test board at a constant speed of 24mm2 at 300mm/min after reaching a constant speed of 24mm2 at a constant speed of 300mm/min (the foreign standard is 25.4mm2).The strongest force in the automatic acquisition test is the initial circular force of the tested sample.
Main Parameters :
| Model | PT-6098 Loop Tack Testing Machine |
| Measure Range | 0-500N |
| Force Accuracy | better than + / - 1% |
| Test Result | record the maximum tensile force required for ring sample to break away from the stainless steel test plate and the failure mode of the sample |
| Test Speed | 0.5～300mm/min |
| Speed Accuracy | better than 1% |
| Specimen Size | 175mm x 24mm; |
| Test Board Size | 150.0mm x 24.0mm x 2.0mm |
| Machine Size | 450 x 280 x 680mm(W x D x H) |
| Machine Weight | About 25kg |
| Power | 220V,50Hz |
Design Standards : FINAT FTM9,PSTC-16,ASTM D6195-03s,GB/T 31125
Software: The professional testing software is simple and easy to understand with one-click measurement. It can provide a variety of standards for testing and data processing according to GB, ISO, JIS, ASTM, DIN, PSTC, FINA and users, and has good expansibility.

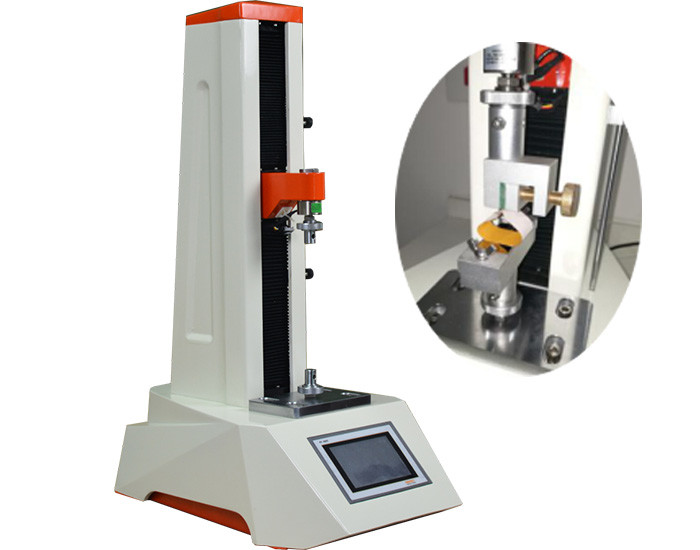

Loop Tack Tester:

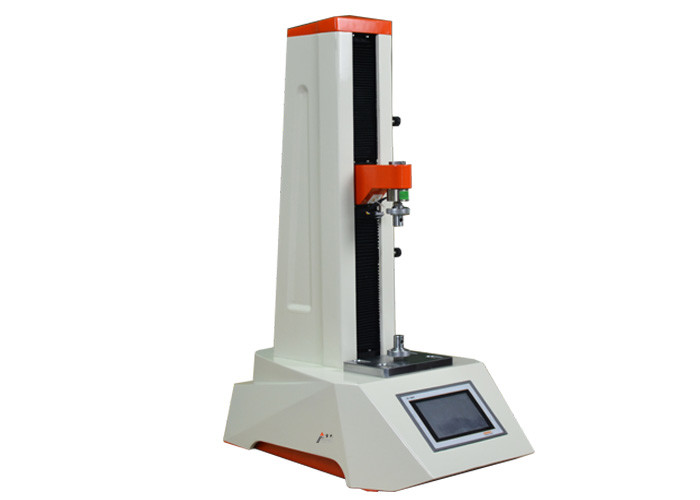

Touch Screen Type Loop Tack Test Equipment :
