| Capacity Option: | 20N,,50N, 100N, 200N, 500N, 1KN | Motor: | AC Servo Motor |
|---|---|---|---|
| Dimensions: | 57×47×120cm (W×D×H) | Max Test Stroke: | Max 650mm, Include Grippers Length |
| Effective Test Space: | Diameter Of 120mm | Special Function: | Constant Tensile, Constant Pressure And Fatigue Tests. |
| Weight: | About 70kg | Force Measurement Accuracyt: | Better Than ±0.5% |
| Strength Resolution: | 1/100,000 | Port: | Shenzhen, Guangzhou,HK |
| High Light: | peel bond strength tester,peel test equipment |
||
180˚ Peel Strength Tester Stripping Test Machine with Manual Rolling Wheel JIS-Z0237
PT-6086 Peel Testing Machine.pdf
Peel Teat Machine Introduction:
Computer System Peel Strength Tester is our company specifically for adhesive tape and adhesive industry design and development, suitable for a variety of adhesive products in different ways peeling strength testing of test equipment. Optional purchase different fixtures can be use for 180˚, 90˚, T-shaped and floating roller method (for high strength adhesive) peel test and other adhesive of tensile shear strength, splitting strength tests.
Peel Tester Specifications:
| Product Name | 180˚ Peel Strength Tester Stripping Test Machine with Manual Rolling Wheel |
| Model No. | PT-6086 |
| Capacity | 2, 5, 10, 20, 50, 100kg option any one. |
| Control Software | Professional testing software of Windows system |
| Force measurement Accuracy | Better than ±0.5% |
| Force measurement Resolution | 1/500,000 |
| Strength Resolution | 1/100,000 |
| Effective force measurement range | 0.5~100%F.S |
| Deformation displayed value Accuracy | Better than ±0.5% |
| Test speed range | 0.5 ~ 500mm/min, can be set. |
| Max test stroke | Max 650mm, include grippers length |
| Effective Test Space | Diameter of 120mm |
| Force Unit switch | Contains a variety of measurement units, including units of international standard, users can define the desired unit. |
| Stop mode | Upper and bottom limit setting, emergency stop, force and elongation setting stop, specimen break stop. |
| Special Function | Can do constant tensile, constant pressure and fatigue tests. |
| Standard Configuration | 180° Peeling Fixture x 1, Peeling Steel Plate x 3 pieces (50*150mm), PT-6020 Manually Rolling Wheel X 1, Power Cord x 1, User Manual with CD x 1. |
| Option Purchase | 90° Peeling Fixture, Loop tack (Ring shape peeling) Fixture, PC or Notebook option one. |
| Dimensions | About 57×47×120cm (W×D×H) |
| Weight | About 70kg |
| Motor | AC Servo Motor |
| Power | 1PH, AC220V, 50Hz, 10A or Assign |
| Standard | ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7 |

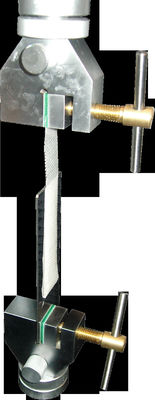

Fixtures:
Screen:
