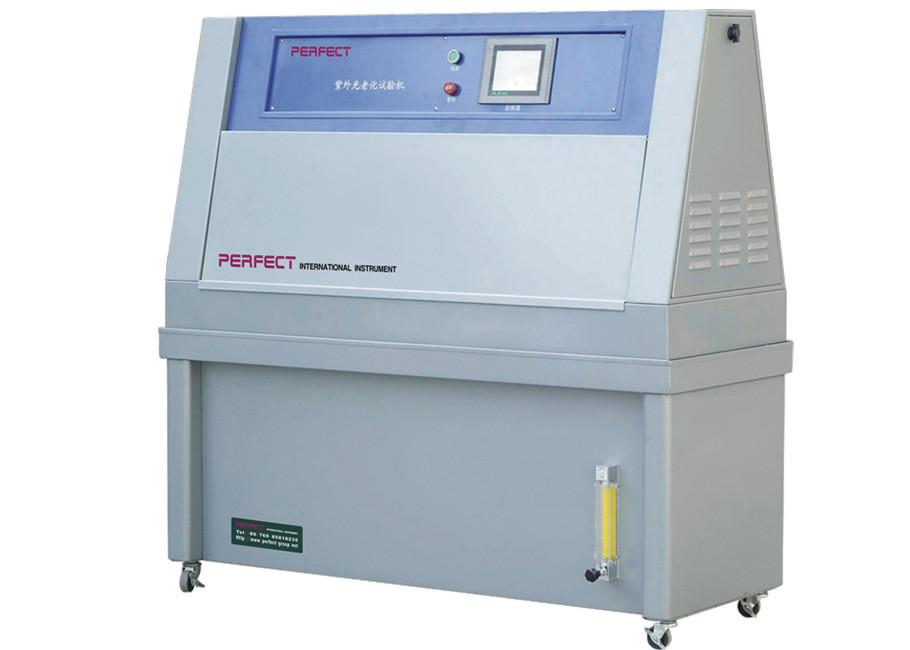

Accelerated Environmental UV Test Chamber For Rubber Plastic Aging Weathering
UV Test Chamber Description:
This QUV Test Chamber apply for variety of industrial products of performance reliability test, forecast products damage caused by in the sun, rain, humidity and dew conditions, test purpose including bleaching, color, brightness down, powder, crack, blur, embrittlement, the intensity decreased and oxidation.
Standard: GB/T14522-93, GB/T16585-1996, GB/T16422.3-1997, ASTM D4329, D499, D4587, D5208, G154, G53, ISO 4892-3, ISO 11507, EN 534, prEN 1062-4, BS 2782, JIS D0205, SAE J2020.
UV Aging Test Chamber Structural Principle:
Feature:
Specifications:
Model | PT-2033-UV1 | PT-2033-UV2 | PT-203-UV3 | |
UV Exposure | Yes | Yes | Yes | |
Condensation | Yes | Yes | ||
Irradiance Display | Yes | |||
Irradiance Adjustment | Yes | Yes | Yes | |
Water spray | Yes | Yes | ||
Thermal Shock | ||||
Bar Chart Recorder | Option | Option | Option | |
Temperature Range | ||||
UV Temperature | 40-85℃ | 40-95℃ | 40-85℃ | |
Condensing Temperature | 40-60℃ | 40-60℃ | ||
Dimensions | 137×53 ×135cm | 137×53 ×135cm | 137×53 ×135cm | |
Weight | 136kg | 136kg | 136kg | |
Test Capacity | 48 specimen (75×150mm) |
48 specimen (75×150mm) |
50 specimen (75×150mm) |
|
Power | 230V/50H 1800W (Max) |
230V/50H 1500W (Max) |
230V/50H 1800W (Max) |
|
Water supply and Water Consumption | Condensation: Tap water or distilled water, about 8 liters / day |
Condensation: Tap water or distilled water, about 8 liters / day Spray: distilled or deionized water, about 7 liters / minutes |
||
Lamp Amount Used | Decides according to Irradiation time | Decides according to Irradiation time | About 24/year | |
The Lamp Model | Q-lab UVB313L, UVA340 for each 4 lamp | Q-lab UVB313L, UVA340 for each 4 lamp | Q-lab UVB313L, UVA340 for each 8 lamp | |
The Lamp Model: UVB313EL,UVA340. | ||||
Note | About the lamp, we provide Q-lab UVA340, UVB313 lamp, In principle UVB-313 lamp have better accelerated aging effects than UVB-340 faster and more obvious, but in weathering test in terms of reproducibility the UVB-340 is better than UVB-313, its all depend customers on the experimental test of time urgency and critical of the jobon. |
