Hydraulic Compression Testing Machine Servo Loop Control Universal Tester 60T
Hydraulic Compression Testing Machine Purpose:
Hydraulic Compression Testing Machine is the use of fuel tank mounted under the host and mainly used for tensile, compression, bending and shear tests of metal or non-metallic materials, suitable for metallurgy, construction, light industry, aviation, aerospace, materials, universities, research institutes and other fields.Test operations and data processing meet GB228-2002 "metal materials at room temperature tensile test method" requirements.
Universal Tester 60T Description:
Host:

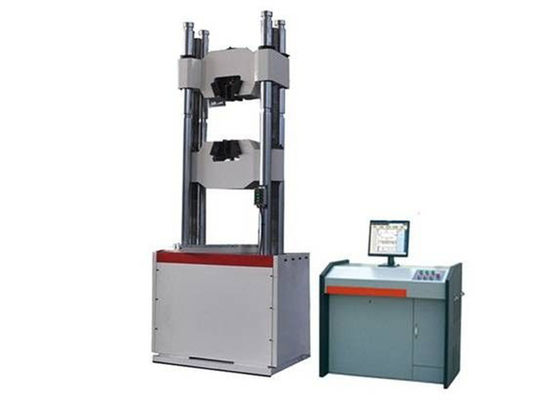

Host is the use of the fuel tank mounted under the host, the tensile space located at between of the upper crossbeam and lower crossbeam, and the compression, bending, shears test space located at between of the lower crossbeam and a host base. The host structure show as below
Hydraulic Compression Testing Machine Parameters:
| Machine Name | Hydraulic Compression Testing Machine Servo Loop Control Universal Tester 60T |
| Model Number | PT-600 |
|
The Measuring Range of Test Force
|
kN to 600 kN
|
|
Test Force Display value Accuracy
|
± 1% |
|
Displacement Measurement Resolution
|
0.01mm
|
| Deformation Measurement Accuracy |
±0.5%
|
| Constant force, Constant deformation, Constant Displacement Control Range |
0.4% ~ 100% FS
|
|
Pistons Maximum Speed
|
100mm / min
|
| Maximum Tensile Test Space | 650mm (including the piston stroke) |
| Maximum Compression Space |
480mm (including the piston stroke).
|
|
Flat Specimen Clamping Thickness
|
0-15mm |
| Round Specimen Clamping Diameter | Ø 13- Ø 26mm or Ø 26- Ø 40mm |
|
Pressure Plate Dimensions
|
Ø 120mm |
|
Bending Test Spacing
|
350 mm
|
|
Branch Roll Width
|
140 mm
|
|
Fulcrum Diameter
|
Ø 50 mm
|
| Piston Stroke | 250mm |
| Clamping Method |
Hydraulic clamping
|
| Sensor and Amplifier | oil pressure sensor, plug in a PC programmable |
| Dimensions |
Host: 900×600×2250 mm Oil Source: 1400×700×850 mm
|
Machine Accessories :
