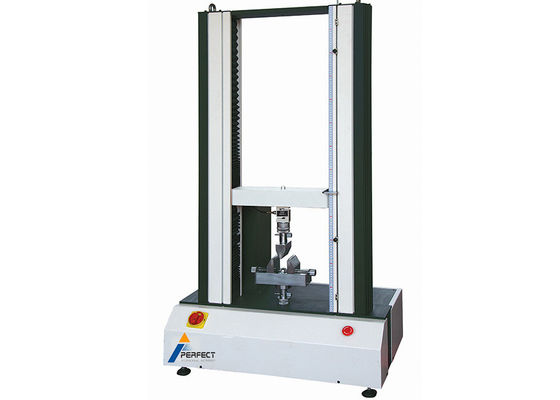

Three Ponit Flexural Strength Bend Test Machine Suitable For Various Materials

Three Ponit Flexural Strength Bend Test Machine Suitable For Various Materials
Three Ponit Flexural Strength Bend Test Machine Suitable For Various Materials

Large Image :  Three Ponit Flexural Strength Bend Test Machine Suitable For Various Materials

Product Details:
Place of Origin: Guangdong,China
Brand Name: PERFECT
Certification: ISO9001
Model Number: PT-1166
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: packed in strong wooden case
Delivery Time: 15 working days after deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 60 sets per month
Detailed Product Description
Test Force Accuracy: Better Than ±01% Dimensions: 630*500*1600mm (W*D*H)
Weight: About 165 Kg Max Stroke: 1000 Mm
Power: 1Ø, AC220V, 50/60HZ, 10A Test Force Resolution: 1/100,000
Item: Double Columns, Desktop Type Test Speed: 0.5~500mm/min
Port: Shenzhen, Guangzhou
High Light:

tensile strength machine

,

tensile testing equipment

Three Ponit Bending Tensile Testing Machine Flexural Strength Tester 2T



Machine Introduction :

Three Ponit Bending Tensile Testing Machine Flexural Strength Tester 2T  is suitable for various materials,including finished articles and semi-finished articles. It can test tensile strength, tensile elongation, compression, bending, puncture, splitting, tearing, shearing and adhesive force etc.
This Flexural Strength Tester is controlled by an interior computer. It is easy to manipulate, The surface is made by extrusion molding aluminum board and has perfect painting coat, which is endurable and artistic.This machine has two columns, and we make a speical protective cover base on custom's requirement.



Three Ponit Bending Tensile Testing Machine Specification :

Machine Name Three Ponit Bending Tensile Testing Machine Flexural Strength Tester 2T
Model No. PT-1166
Capacity selection 2,5,10,20,50,100,200,500,1000,2000kg Optional one,Ma 20KN
Measurement and control software Professional test software Windows platform
Accuracy of measurement Be better than ±0.5%
Force resolution 1/500,000
Effective range of measurement 0.5~100%F.S
Deformation display accuracy Be better than ±0.5%
Test speed range 0.5~500mm/min,Can be arbitrarily set
Test maximum stroke Maximum 1000mm, not including fixture
Effective test space Before and after ∝,About 400mm
Unit switch A variety of measurement units, including international units, users can also customize the required units
Stop mode Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure
Special function Can be held in tension, holding pressure and fatigue test
Optional configuration Business computer 1, 1 color printer, PT-211 two points to extend the fixture, a variety of test fixture
Machine size About 76×46×160cm(W×D×H)
Machine weight About 165kg
Power AC servo motor,Japan
Power Supply 1PH,AC220V,50Hz,10A Or specify





Three Point Bending Tester Standard configuration :

  • Standard fixture 1 set
  • Software and data line 1 set,
  • Power supply, 1 set
  • CD 1 CD-ROM operating instructions,
  • product certification 1 copy
  • product warranty card 1 copy
