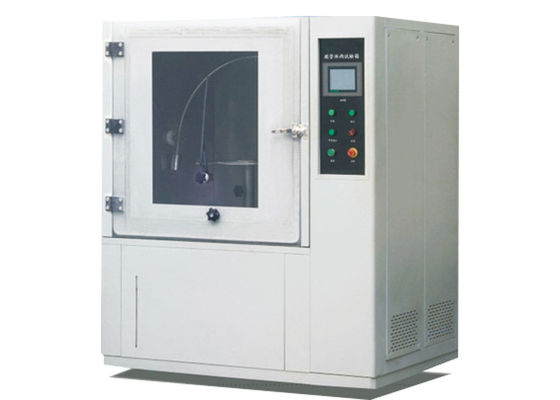

LED Lamp Climatic Test Chamber / Rain Test Equipment ASK Color Touch Screen Controller

LED Lamp Climatic Test Chamber / Rain Test Equipment ASK Color Touch Screen Controller
LED Lamp Climatic Test Chamber / Rain Test Equipment ASK Color Touch Screen Controller
video play

Large Image :  LED Lamp Climatic Test Chamber / Rain Test Equipment ASK Color Touch Screen Controller

Product Details:
Place of Origin: Dongguan,Guangdong,China
Brand Name: PERFECT
Certification: ISO9001
Model Number: PT-2050
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: strong wooden case
Delivery Time: 20 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 set per month
Detailed Product Description
Time Setting Range: 0~999h Pouring Water Pressure: About 80Kpa/98kpa
Pipe Diameter: φ16 Mm Liner Materia: SUS304 Stainless Steel
Size(mm): PT-2050A:800×800×800 Appearance Size(mm) 1020×1200×1000 Tube Radius: R375mm/500mm
High Light:

rain test chamber

,

environmental testing equipment

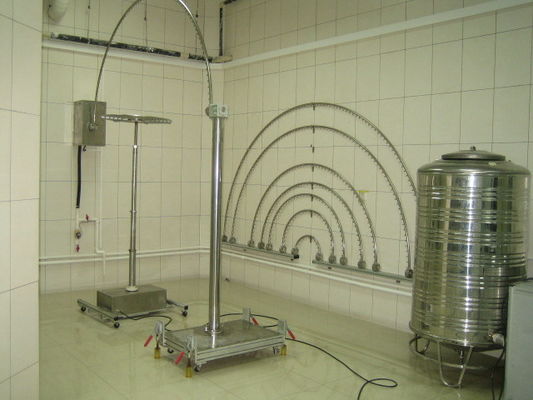

LCD Rain Resistant Test Chamber Climatic IPX3 Rain Tester For LED And Lamp





IPX3 Rain Tester Application :



LCD Rain Resistant Test Chamber Climatic IPX3 Rain Tester For LED And Lamp is suitable for electrical and electronic products, lamps and lanterns, electrical cabinet, electrical components, automobile, motorcycle parts and other products. This chamber is designed to test water-proofing property of automobile and electronic parets. Rain Tester For LED And Lamp adopts large size observation window, which will be much easier for users to check specimen status clearly. Besides, the digital setting makes it more easier for operation and maintenance.





IPX3 Rain Tester Features :



  • 1. The machine drive adopts servo motor, accomplished by programmable controller
  • 2. The whole process of water softening system, multiple filtration, achieve the true 100% circulation water
  • 3. The spacious Windows are effective in the whole process
  • 4.It is easy to direct the input from the Angle of the Angle of the tube, so that it is easy to be adjusted           without manual adjustment
  • 5.The effective Angle 10 ° to 320 °





IPX3 Rain Tester Specification :



Item LCD Rain Resistant Test Chamber Climatic IPX3 Rain Tester For LED And Lamp
Model No. PT-2050A PT-2050B PT-2050C
Test Space Size  800*800*800mm 1000*1000*1000mm 1500*1500*1500mm
Out size  1020*1200*1000mm 1220*1400*2000mm 1700*1900*2500mm
Tube radius R375mm/500mm
Pipe diameter φ16 mm
Pouring water pressure About 80Kpa/98kpa
Time sett range 0-999h
Liner material SUS304 Stainless steel
Frequency converter Panasonic frequency converter
Electrical components French AC contactor
Water pump High pressure water pump
Controller ASK Color touch screen
Reducer Rotary table motor (Panasonic motor)
