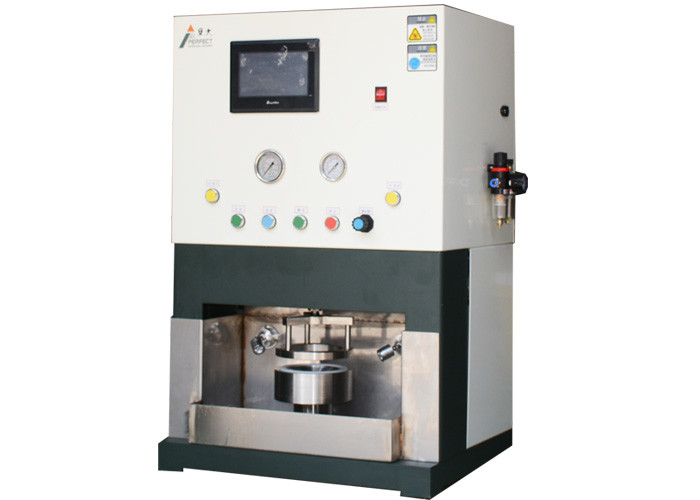

Fiber High Pressure Water Resistance Test Machine , High Hydrostatic Head Test Chamber
Application: Ultra high pressure hydraulic resistance tester, provides accurate and fast solution for fiber and fabric industry waterproof test requirements , touch-screen as operation interface and adopt pneumatic clamping device , convenient to operate.
Design Standards:DIN-53-886,ISO 811,AATCC 127,GB/T 4744
Water Resistance Machine Parameters :
| Measurement Range |
0.001～5kg/cm2 (10～50000mmH2O) |
| Display Precision | ± 1% |
| Pressurized Speed | 0.01～1 kg/cm2／min,digital type , free set |
| Pressure Holding Test | Seting stop press, and start timing. |
| Pressure Holding Time | 99minutes 59 seconds,can be set,auto stop |
| Motor | 1/2HP Servo Motor |
| Operation Interface | LCD touch screen controlling |
| Pressurized Plate | ψ112.8mm(100cm2) |
| Clamp Force | 1200kg |
| Machine Size | 42 ×60 ×75cm(W×D×H) |
| Power | AC 220V 50～60Hz 2A |
| Noted: client prepair the air source (air compressor) | |
Hydrostatic Head Tester :
