20 Position Adhesive Tester , PSTC7 Standard Testing Equipment For Protective Film And Tape
20 Position Adhesive Tester Application :
Adhesive Tape Multi - Position Testing Machine is to do the static load test for the adhesion force of the adhesive tape, under certain load automatic timing adhesive tape can holding time to confirm the timeliness of adhesive tape.
PSTC7 Testing Equipment For Lab Adhesive Tape is used to assess the durability of adhesive for adhesive tape, and after improved, the product can be adapted to a variety of high temperature, low temperature, high humidity, low humidity and other harsh environments.
Usage Details :
Cut 1 inch wide strip adhesive tape affixed to SUS # 304 stainless steel plate, after 2kg of standard rolling wheel to speed of 300mm or 600mm per minute rolling back and forth for 3 times, the steel plate hanging on the test machine, plus provisions weight, when adhesive tape falling from steel, the timer automatically retention test time.
Classify :
The tape holding force tester can be divided into four types: room temperature holding force tester, high temperature holding force tester, constant temperature and humidity holding force tester and tape dynamic holding force testing machine.
20 Groups Adhesive Tester Parameters :
| Machine Name | 20 Position Adhesive Tester , PSTC7 Testing Equipment For Protective Film And Tape | ||||
| Model | PT-6011-8 | PT-6010-20 | PT-6010-30 | ||
| Temperature Range | Room Temperature | ||||
| Test Fixture | 8 Sets | 20 Sets | 30 Sets | ||
| Weight | 1kg X 8 | 1kg X 20 | 1kg X 30 | ||
| Timer | 8 Sets | 20 Sets/PLC | 30 Sets/PLC | ||
| Stainless steel plate | SUS#304 X 8 | SUS#304 X 20 | SUS#304 X 30 | ||
| Connector | 8 Pieces | 20 Pieces | 30 Pieces | ||
| Weight (without accessories) | About 15kg | About 25kg | About 30kg | ||
| Dimension (W×D×H) | About 40×22×71 cm | About 90×31×73 cm | About 90×31×103 cm | ||
| International Standards |
GB/T4851,CNS11888,PSTC7,GB/T 4851,ASTM D3654,JIS Z0237 |
||||

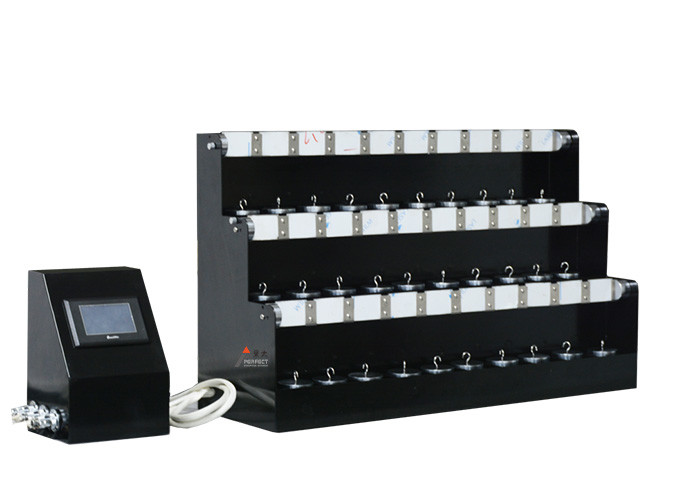

Adhesion Test Machine Picture :
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:
15-20 days after confirming order,detail delivery date should be decided according to production season and order
