| Weight: | 2 Groups : About 25kg ; 3Groups: About 40kg | Power: | 1PH, AC220V, 50/60Hz, 4A |
|---|---|---|---|
| Machine Size: | 500×320×270mm | Rolling Speed: | 600±30mm/min |
| Port: | Shenzhen | ||
| High Light: | peel bond strength tester,adhesive peel test machine |
||

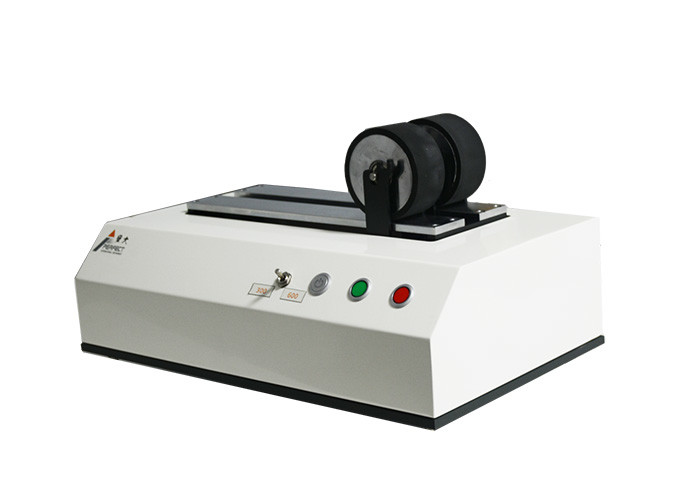

PSTC -8 Stripping Strength Tester , Adhesion Test Machine Electric Wheel 2kg Weight
Electric Wheel Use :
Adhesive Tape Stripping Strength Tester is used for the preparation of test pieces of adhesive tape stripping strength and adhesion.With constant pressure and speed, the adhesive tape sample should be smooth and evenly adhered to the standard test substrate.Peel Stickiness Test Machine used at a fixed pressure and speed make adhesive tape cohere on standard steel plate, to provide as the test sample of peeling test or adhesion force test.
Machine Specification :
| Item Name | PSTC-8 Stripping Strength Tester , Adhesion Test Machine Electric Wheel 2kg Weight | |
| Model No | PT-6021 | PT-6023 |
| Design Standars | CNS-11888,GB/T 4851,PSTC-8,GB/T2792 | |
| Wheel weight | 2kg wheel X 2 | 2kg wheel X 3 |
| Rubber layer hardness | Hs80±5 | |
| Rolling speed | 600±30mm/min | |
| Dimension (W×D×H) | About 50×32×27cm | About 51×38×31cm |
| Weight (include wheel weight) | About 25kg | About 40kg |
| Power | 1PH, AC220V, 50/60Hz, 4A | |
2 Positon Electric Wheel Picture :
