GB / T4851 Adhesion Testing Machine

GB / T4851 Adhesion Testing Machine
GB / T4851 Adhesion Testing Machine
video play

Large Image :  GB / T4851 Adhesion Testing Machine

Product Details:
Place of Origin: Dongguan,Guangdong,China
Brand Name: PERFECT
Certification: ISO,CE,SGS, etc
Model Number: PT-6010-30
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: As Negotiable
Packaging Details: Packed in standard wooden case
Delivery Time: 10-15 work days after confirm order
Payment Terms: T/T, L/C, Western Union
Supply Ability: 150 sets per month
Detailed Product Description
Temperature: Room Temperature Timer: 30 Sets/PLC
Weight: About 30 Kg Size: About 90×31×103 Cm
Test Fixture: 30 Sets Stainless Steel Plate: SUS#304 X 30 Pieces
Port: Shenzhen,or As Customer's Request
High Light:

rolling ball tack tester


tape adhesion tester


GB/T4851 Adhesion Testing Machine


GB / T4851 Adhesion Testing Machine For Films , PLC 30 Positions Tapes Tester



30 Positions Tapes Tester Usage :


Adhesive Tape Multi - Position Testing Machine is to do the static load test for the adhesion force of the adhesive tape, under certain load automatic timing adhesive tape can holding time to confirm the timeliness of adhesive tape.
PSTC7 Testing Equipment For Lab Adhesive Tape is used to assess the durability of adhesive for adhesive tape, and after improved, the product can be adapted to a variety of high temperature, low temperature, high humidity, low humidity and other harsh environments.



30 Positions Tapes Tester Parameters :

Machine Name PLC 30 Positions Tapes Tester , GB / T4851 Testing Equipment For Films
Model PT-6011-8 PT-6010-20 PT-6010-30
Temperature Room Temperature
Test Fixture 8 Sets 20 Sets 30 Sets
Weight 1kg X 8 1kg X 20 1kg X 30
Timer 8 Sets 20 Sets/PLC 30 Sets/PLC
Stainless steel plate SUS#304 X 8 SUS#304 X 20 SUS#304 X 30
Connector 8 Piece 20 Piece 30 Piece
Weight (without accessories) About 15kg About 25kg About 30kg
Dimension (W×D×H) About 40×22×71 cm About 90×31×73 cm About 90×31×103 cm
International Standards



Noted: Acceptable customized position !

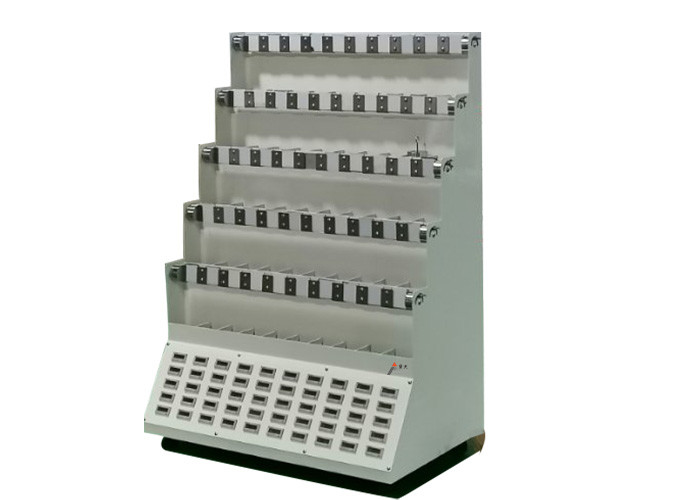

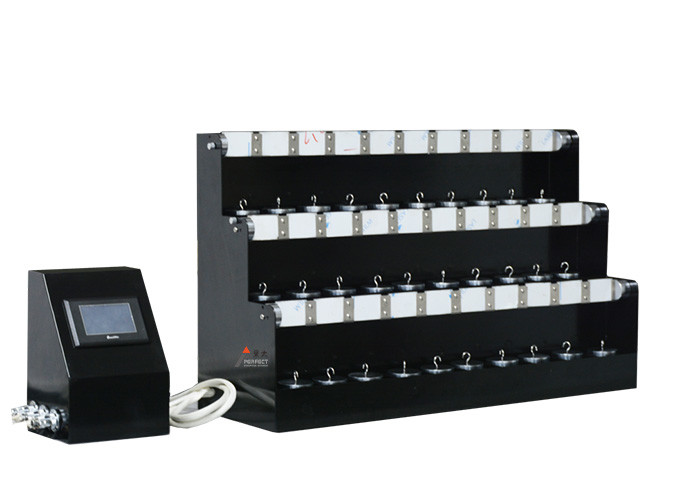

30 Positions Tapes Tester refer photo :


GB / T4851 Adhesion Testing Machine 0


Testing Picture

GB / T4851 Adhesion Testing Machine 1

Use Details :

Cut 1 inch wide strip adhesive tape affixed to SUS # 304 stainless steel plate, after 2kg of standard rolling wheel to speed of 300mm per minute rolling back and forth for 3 times, the steel plate hanging on the test machine, plus provisions weight, when adhesive tape falling from steel, the timer automatically retention the test time.
