Touch Screen Horizonal Tensile Testing Machine 100KGF Speed 1~400mm / Min

Touch Screen Horizonal Tensile Testing Machine 100KGF Speed 1~400mm / Min
Touch Screen Horizonal Tensile Testing Machine 100KGF Speed 1~400mm / Min Touch Screen Horizonal Tensile Testing Machine 100KGF Speed 1~400mm / Min

Large Image :  Touch Screen Horizonal Tensile Testing Machine 100KGF Speed 1~400mm / Min

Product Details:
Place of Origin: Dongguan , Guangdong, China
Brand Name: PERFECT
Certification: ISO, SGS, CE
Model Number: PT-1197
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 7-10 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 150 sets per month
Detailed Product Description
Type: Horizonal Type Tensile / Peel Strength Tester Display: Touch Type Force And Extention Display
Testing Speed: 1~400mm/min Test Stroke: Max 300mm
Motor: Servo
High Light:

spring force tester

,

tensile testing equipment



Horizonal Tensile Testing Machine , 100KGF Tensile Testing Equipment Touch Screen



Introduction: Horizontal tension machine is suitable for carrying belt, adhesive belt, adhesive tape, artificial leather and other products of stripping force, tensile strength, shear force, elongation at break, etc





Small Horizonal Tensile Machine Specifications :

Model PT-1197 PT-1197D
Capacity 2,5,10,20,50,100kgf choose one
Displayer Touch type force and extention display
Measurement Accuracy Better than ±1.0%
Force Resolution 1/500,000
Effective Range of Measurement 1~100%F.S
Deformation Display Accuracy Better than ±1.0%
Test Speed 1~400mm/min,free set
Test Stroke Max 300mm,not including the fixture length
Unit Switch kgf,gf ,N,kN,Ibf
Stress unit switch MPa,kPa,kgf/cm2,Ibf/in2
Deformed unit switch mm,cm,in
Stop Method Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure
Point Method Manual pick - up and pre-set pick - up (20 points)
Standard Configuration Tensile fixture 1 set,user manual 1 ,qualified certificate 1,wrranty card one
Computer extension NO Yes
Machine Size About 67×23×33cm(W×D×H)
Machine Weight About 25kg
Motor Stepper Motor
Power 1PH,AC220V,50/60Hz,10A or as specified

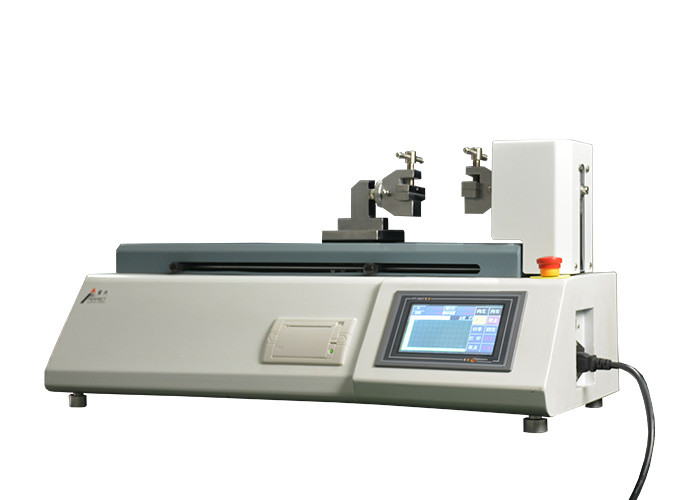

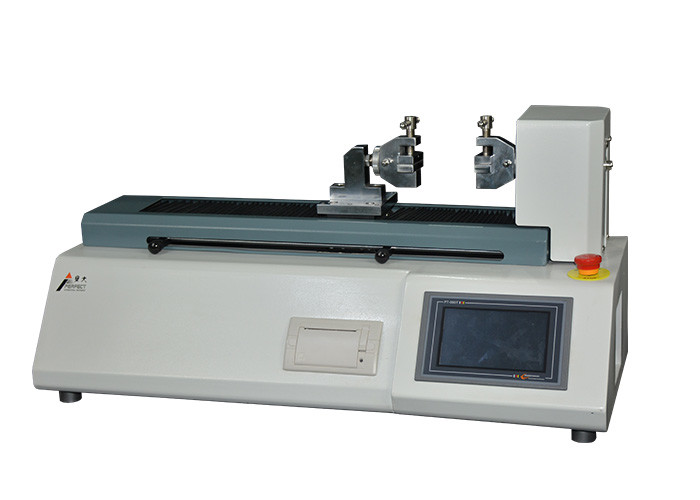

Refer Photo of Small Horizonal Tensile Machine:
