600KN Hydraulic Universal Testing Machine , Flat Round Specimens Tensile Compression Machine
Applications : PT-1100-600 electro-hydraulic servo universal testing machine is an under-cylinder type machine, which is mainly used for tensile, compression, bending and shearing tests of metal and nonmetal. Applicable to metallurgy, construction, light industry, aviation, aerospace, materials, colleges and universities, research institutions and other fields.The test operation and data processing are in accordance with GB228-2002 "tensile test method for materials and metals at room temperature"
Technical Parameters :
Max Test Foce | 600 KN |
Machine Grade | 1 Class |
Effective Measure Range | 2%-100%FS |
Indication Relative Error | ±1% |
Force Resolution | 1/500000 |
Stress Rate Control Adjustment Range | 1MPa/s~~60MPa/s |
Stress Rate Control Accuracy | ±2% |
Deformation Resolution | 1/500000 |
Strain Rate Control Adjustment Range | 0.00025/s~~0.0025/s |
Strain Rate Control Accuracy | ±2% |
Displacement Resolution | 0.001 |
Displacement Rate Control Adjustment Range | 0.00025/s~~0.0025/s |
Displacement Rate Control Accuracy | ±1% |
Sress/Strain/Displacement Control Range | 0.3%~~100%FS |
Stress/Strain/Displacement Control Accuracy | ±1% |
Tensile Space | 600mm |
Compress Space | 500mm |
Columns Distance | 430mm |
Round Sample Clamp Range | Φ6-Φ40mm |
Flat Sample Clamp Thickness | 0-30mm |
Flat Sample Clamp Width | 75mm |
Compress Plate | Φ160mm |
Machine Size | About 740*590*2150mm |
Oil Source Console Dimensions | About 1150*800*1000mm |
Total Motor Power | 2KW |
Weight | About 2300kg |
Functions and applicable testing methods:
Mainly used for tensile test of metal materials.With the addition of accessories, compression, bending, shear and other mechanical properties can be completed.
1. Meet GB/T228, 1-2010 "tensile test method for metallic materials at room temperature".
2 .Meets ISO 6892-1:2009 tensile test for metallic materials -- part 1: test methods at room temperature
III. Structural Design
Stretch and compress two test Spaces.Compression space between test table and lower beam.Stretch space between upper and lower beams.The screw rotates to drive the lower beam up and down, which can complete the adjustment of test space.
Configuration List :
1. Machine Host: Under cylinder type, four columns and two screws, base integral casting.
2. Load Cell: 600KN
3. Compress Plate: Φ160mm
4. Hydraulic pressure source
5. Servo pump unit
6. Software testing system
7. Displacement sensor, pull wire photoelectric encoder
8. Computer: Lenovo
9. User manual, qualified certificate, packing list
10.Clamping action: hydraulic tightened
11.Defend the net
12.Round specimen tensile clamp: Φ6 - Φ13mm, Φ13 - Φ26mm
13.Flat specimen tensile clamp: 0-15mm

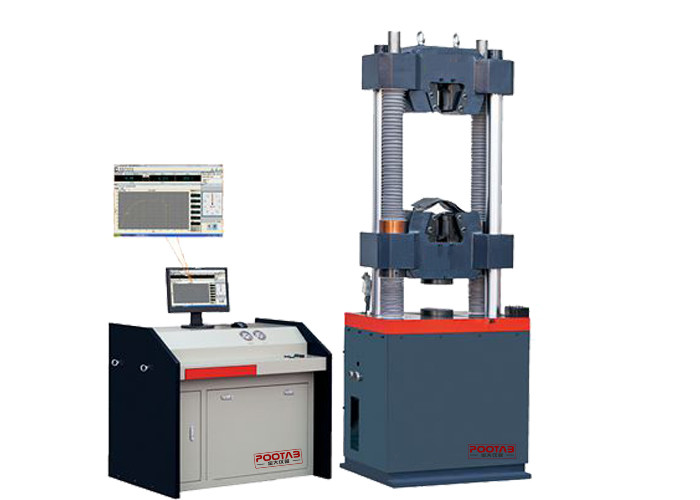

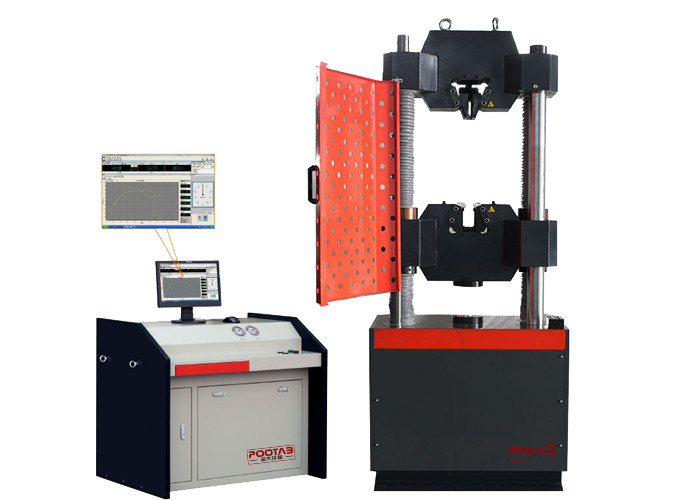

60T UTM Pictures:
