| Load Cell: | 2、5、10、20、50、100、200、500kgf Any One Option | Measurement Accuracy: | ±0.5 Class |
|---|---|---|---|
| Speed Range: | 0.01mm To 3000mm Per Minute | Test Travel: | Max 1000mm, Exlude Fixture |
| Warranty: | 1 Year, Except For The Load Cell | ||
| High Light: | peel bond strength tester,adhesive peel test machine |
||
High Accuracy Tensile Testing Machine Protective Film Peel Test , Optical Film Stripping Machine
Introduction: This equipment is latest peel machine in our company, with guide post transmission, high precision stable force sensor. Actually, it is specially for peel tests of thin film, protetive film, optical film, because their test force is very small, and have more precision request on the machine. Besides peel strength test, with different grips, it can also do other test contents, such as tensile strength, breaking force, elongation, tear, compression, bending test, so it is wide used in metal material, non-metal materials, adhesive tape, wire cable, fabric, package products,etc.
Load Measuring Accuracy : + / - 0.5% of the indicators met or exceeded the following international standards: ASTM E-4, BS 1610, DIN 51221, ISO7500/1, EN10002-2, JIS B7721, JIS B7733
Film Peel Machine Parameters :
| Model Name | PT-1179 high accuracy peel strength tester |
| Force Sensor |
2,5,10,20,50,100,200,500kgf any one option |
| Measurement and Control Software | Windows professional testing software by our comapny |
| Input Terminals | 4 Load cells , Power, USB, two point extension |
| Measurement Accuracy | Better than ±0.5% |
| Force Resolution | 1/1,000,000 |
| Test Speed | 0.01～3000mm/min,free set |
| Stroke | Max 1000mm, not included grip |
| Effective Test Space | Dia 120mm, front back |
| Unit Switch | A variety of measurement units including international units |
| Stop Method | Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure |
| Special Function | The holding, holding and fatigue testing can be done |
| Standard Configuration | Standard fixture 1 set, software and data line 1 sets,, operating instructions, product certification 1 copy, 1 copy of product warranty card |
| Purchase Configuration | Business computer 1 set, color printer 1 set, kinds of test fixtures |
| Machine Size | About 57×47×120cm(W×D×H) |
| Machine Weight | About 70kg |
| Motor | AC servo motor |
| Control Method | Embedded computer measurement and control system |
| Speed Accuracy | ±0.1% of set speed |
| Electric Power | 1PH,AC 220V, 50/60Hz |

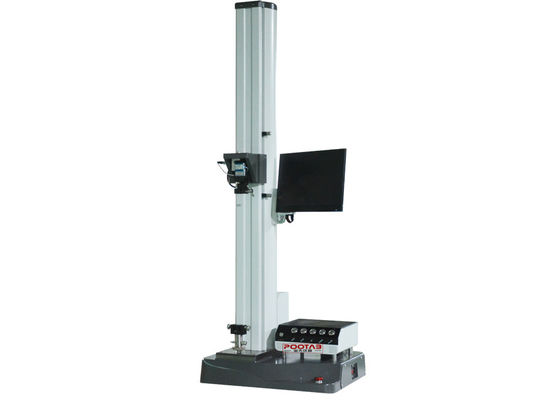

Refer Pic :
