Product Details:
Payment & Shipping Terms:
|
| Item: | 90° Peel Tester | Standard Test Speed: | 300mm/min |
|---|---|---|---|
| Accessories: | 90 Degree Fixture, Manual Roller, Steel Plate | Motor: | AC Servo Motor |
| Test Travel: | 650mm | Package CBM: | About 0.67 Cube |
| Package Weight: | About 70kg | Port: | Shenzhen, Guangzhou,or As Customer's Request |
| Delivery Time: | 7 Working Days | Display: | Double Display |
| High Light: | peel bond strength tester,peel test equipment |
||
90° Peel Bond Strength Tester, Pressure Sensitive Material Stripping Strength Testing Machine
Peel Strength Tester : Tensile testing machine to test pressure-sensitive material, stripping speed of 300mm/min, precision +2%.Whenthe pressure-sensitive material is moved, the auxiliary equipment shall be able to shift the test plate freely horizontally to ensure that the peel angle is 90°.
Accessories : 90 degree fixture, manual roller (2kg), steel plate (50*150mm, thickness 2mm)
Test Specimen: standard adhesive tape, width 1 inch (25mm), length at least 175mm
90° Peel Testing Machine Specifications :
| Model | PT-6086S-90 Peel Strength Tester |
| Sensor Capacity | 2,5,10,20,50,100kgf any one option |
| Measurement and Control Software | Windows Professional Sofeware |
| Measurement Accuracy | ±0.5% |
| Force Resolution | 1/500,000 |
| Effective Range of Measurement | 0.5~100%F.S |
| Deformation Display Accuracy | ±0.5% |
| Test Speed | 0.1～1000mm/min,free set |
| Max Test Stroke | Max 650mm (Extended 1000mm,customized),not includes gripper |
| Effective Test Space | Dia 120mm |
| Unit Switch | A variety of measurement units including international units |
| Stop Method | Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure |
| Special Function | The holding, holding and fatigue testing can be done |
| Standard Parts | 90° peel fixture 1 set , 3 pieces peel steel plates (50*150mm),PT-6020 manual rolling wheel 1 piece, software and RS232 data line 1 sets, 1 sets of equipment power supply, operating instructions, product certification 1 copies, 1 copies of product warranty card |
| Separately Purchase | business computer , color printer , kinds of test fixtures |
| Machine Size | About 57×47×120cm(W×D×H) |
| Machine Weight | About 70kg |
| Motor | AC Servo Motor |
| Control Method | Double Display Double Control(Touch Screen) |
| Electric Power | 1PH,AC220V,50Hz,10A or specified |

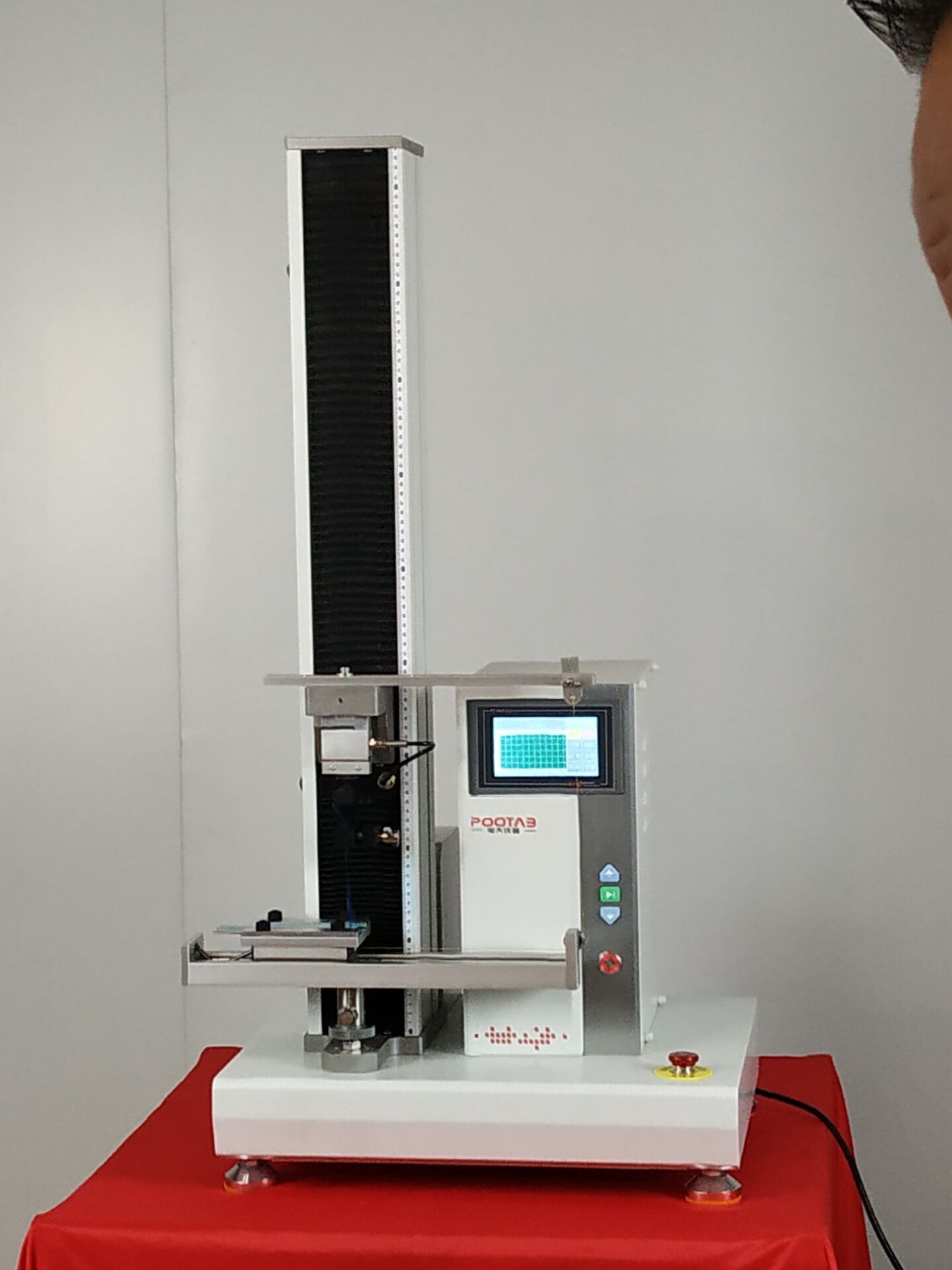

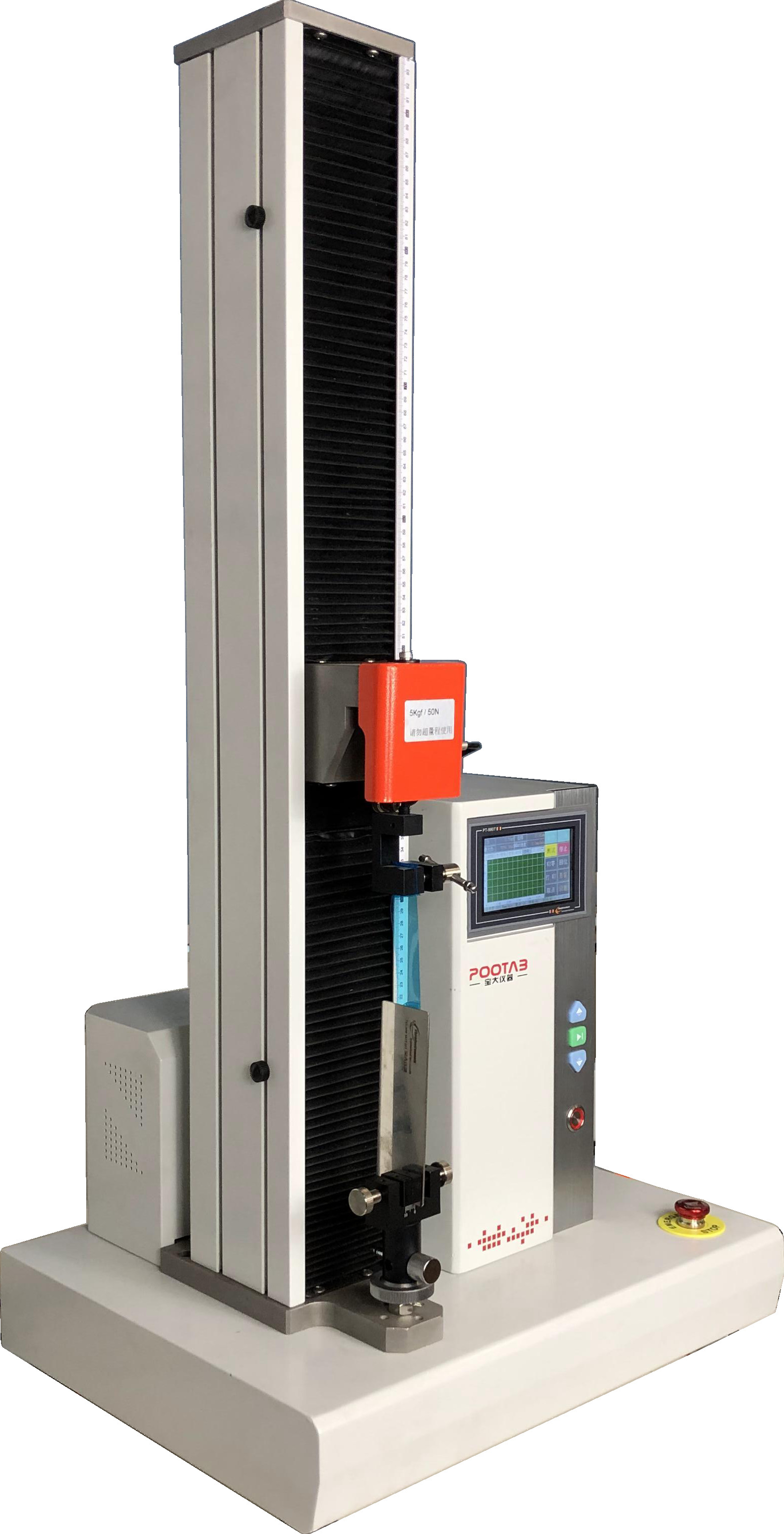

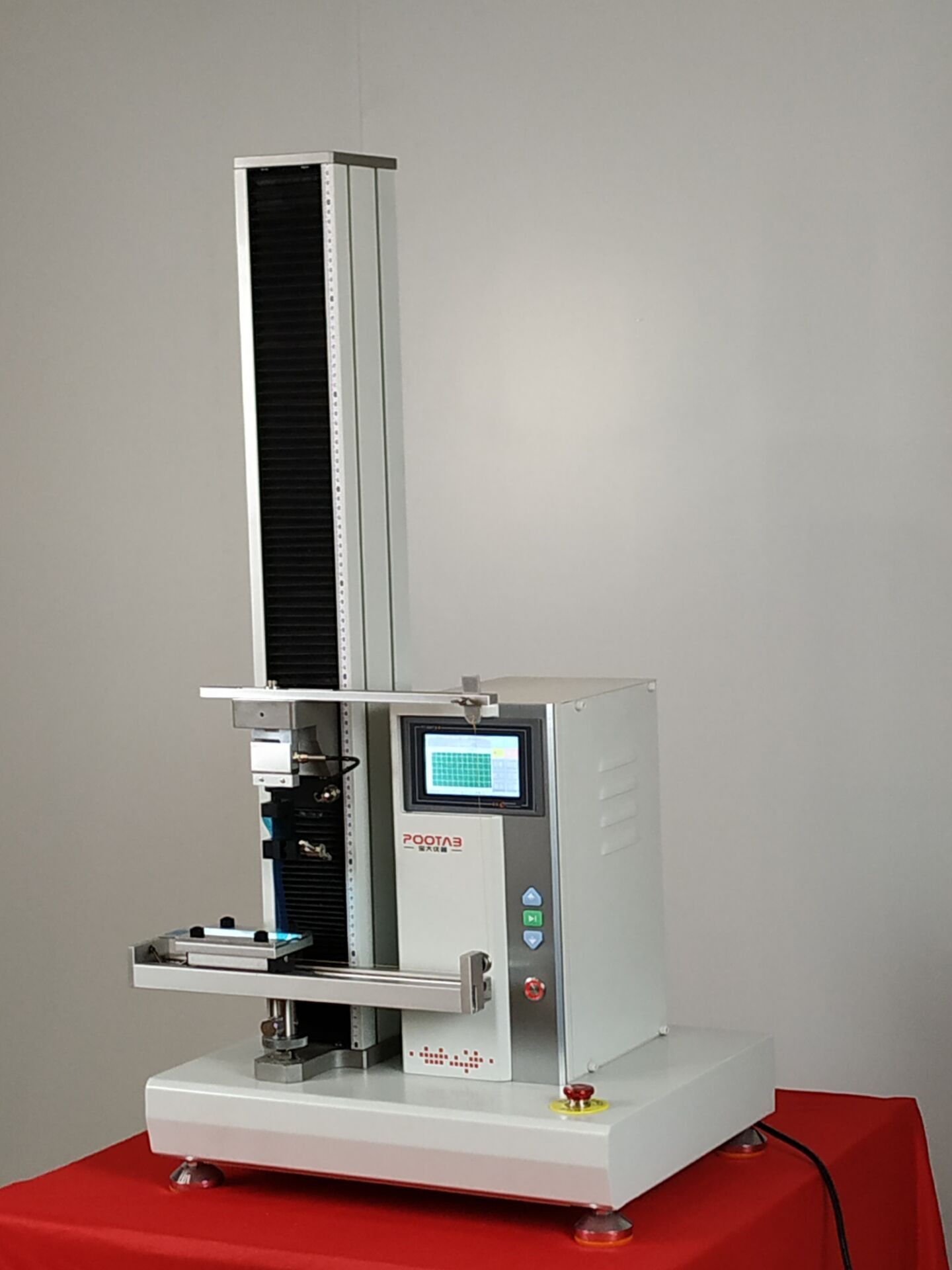

Refer Picture :
