60HZ Universal Testing Machine

60HZ Universal Testing Machine
60HZ Universal Testing Machine
video play

Large Image :  60HZ Universal Testing Machine

Product Details:
Place of Origin: Guangdong,China
Brand Name: PERFECT
Certification: ISO
Model Number: PT-1166
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: packed in strong wooden case
Delivery Time: 15-20 work days after deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 60 sets per month
Detailed Product Description
Test Force Accuracy: Better Than ±01% Dimensions: 630*500*1600mm (W*D*H)
Weight: About 120kg Max Test Stroke: 1000 Mm
Power: 1Ø, AC220V, 50/60HZ, 10A Test Width: 120 Mm Front And Back ,right And Left
C.Test Force Resolution: 1/100,000 Item: Double Column
Test Speed: 0.5 ~ 500 Mm/min Port: Shipped From Shenzhen, Guangzhou Or HK
High Light:

universal test equipment


universal tensile tester


60HZ Universal Testing Machine


60HZ Universal Testing Machine Universal Testing Machine Compression Test


Universal Tester Pull Tensile Pressure Material Testing Machine is suitable for various materials,including finished articles and semi-finished articles. It can test tensile strength, tensile elongation, compression, bending, puncture, splitting, tearing, shearing and adhesive force etc.
PT-1166 computer system universal material testing machine is controlled by an interior computer. It is easy to manipulate, The surface is made by extrusion molding aluminum board and has perfect painting coat, which is endurable and artistic.



Product Name10KN Double Column Material Testing Machine Pull Tensile Pressure Universal Tester
Capacity selection2,5,10,20,50,100,200,500,1000,2000kg Optional one
Measurement and control softwareProfessional test software Windows platform
Accuracy of measurementBe better than ±0.5%
Force resolution1/500,000
Effective range of measurement0.5~100%F.S
Deformation display accuracyBe better than ±0.5%
Test speed range0.5~500mm/min,Can be arbitrarily set
Test maximum strokeMaximum 1000mm, no fixture
Effective test spaceBefore and after ∝,About 400mm
Unit switchA variety of measurement units, including international units, users can also customize the required units
Stop modeUpper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure
Special functionCan be held in tension, holding pressure and fatigue test
Standard configurationStandard fixture 1 payment, software and data line 1 sets, 1 sets of equipment power supply, CD 1 CD-ROM operating instructions, product certification 1 copies, 1 copies of product warranty card
Optional configurationBusiness computer 1, 1 color printer, PT-211 two points to extend the fixture, a variety of test fixture
Machine sizeAbout 76×46×160cm(W×D×H)
Machine weightAbout 160kg
PowerAC servo motor
Power Supply1PH,AC220V,50Hz,10A Or specify

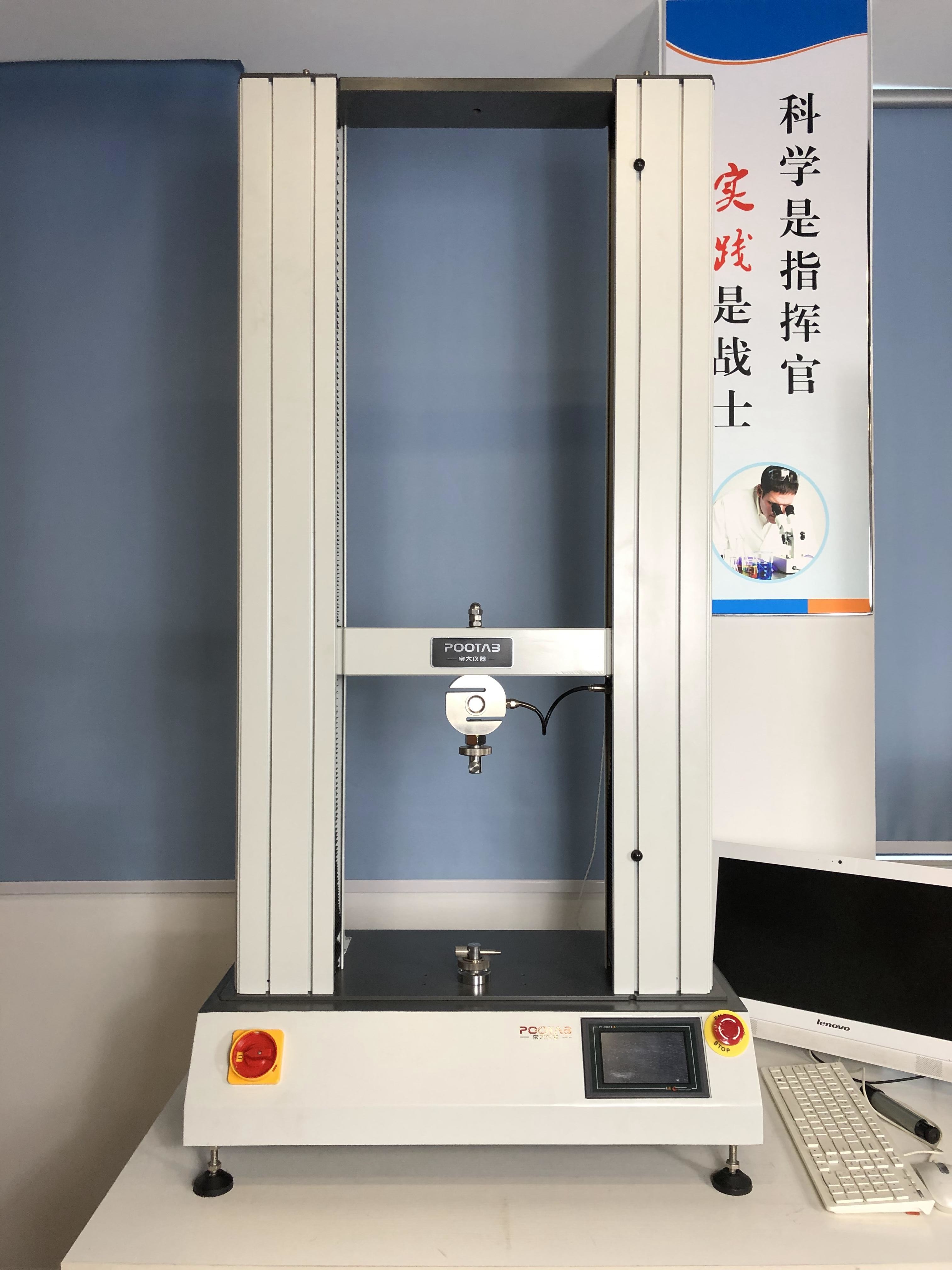

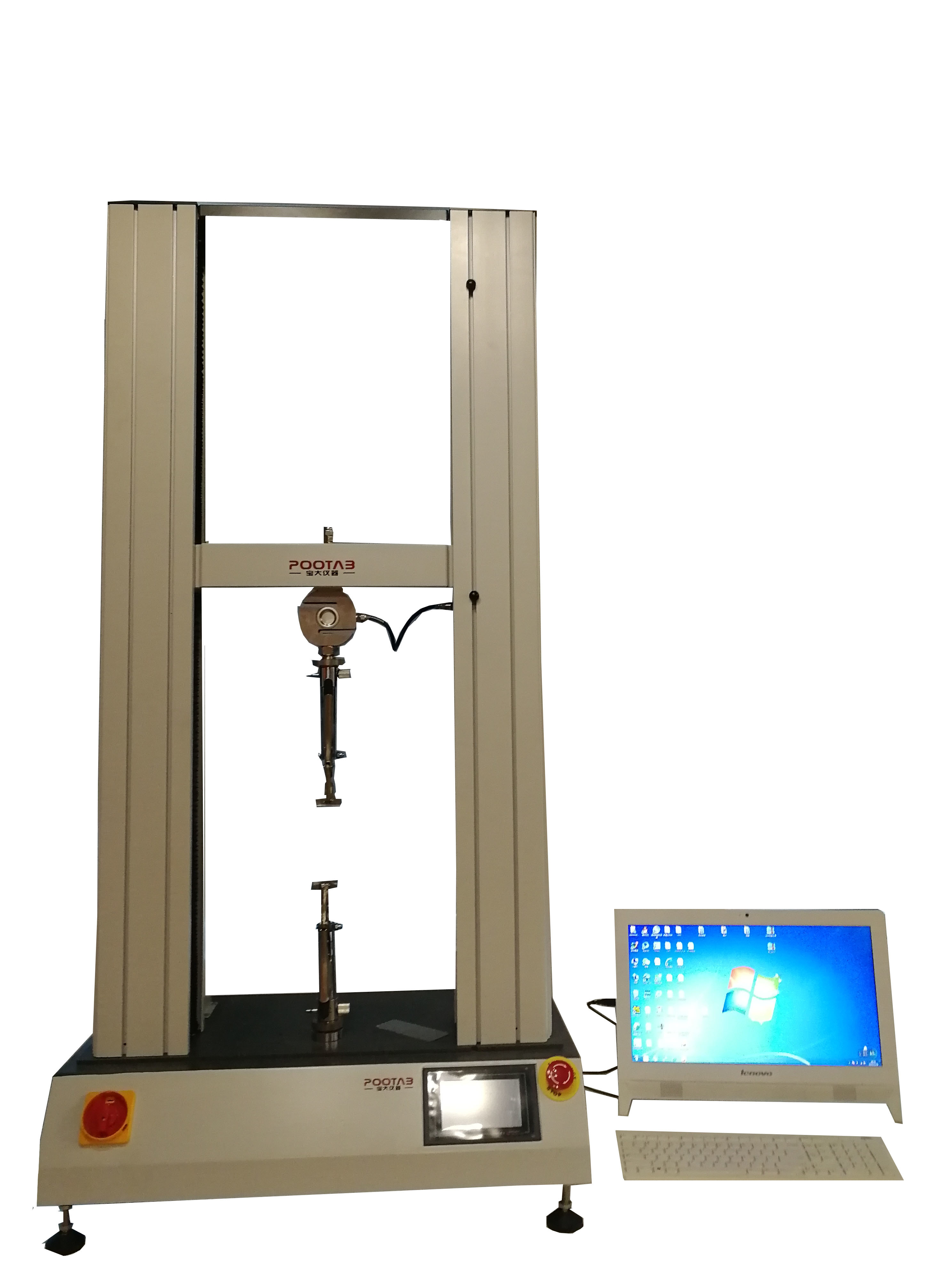

Machine appearance:


Front view and rear view

60HZ Universal Testing Machine 0
Note: The pictures of machine is for reference only
60HZ Universal Testing Machine 1Software Operate Screen:

60HZ Universal Testing Machine 2


60HZ Universal Testing Machine 3


60HZ Universal Testing Machine 4



Q1: Are you a factory or trading company?
A: We are a factory which has specialized in the production of various dynamics testing instruments and instruments, with more than 20 years of production experience and 3 years of export experience.
Q2: What's the MOQ of the product?
A: Different items have different MOQ. Welcome to contact our sales for getting more details.
Q3: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.
Q4: How long is the production cycle after ordering?
A: General it is about 15-30 days. We will send the time according to the order’s quantity.

Q5:Do you accept customization service? Can I have my logo on the machine?
A:Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.
