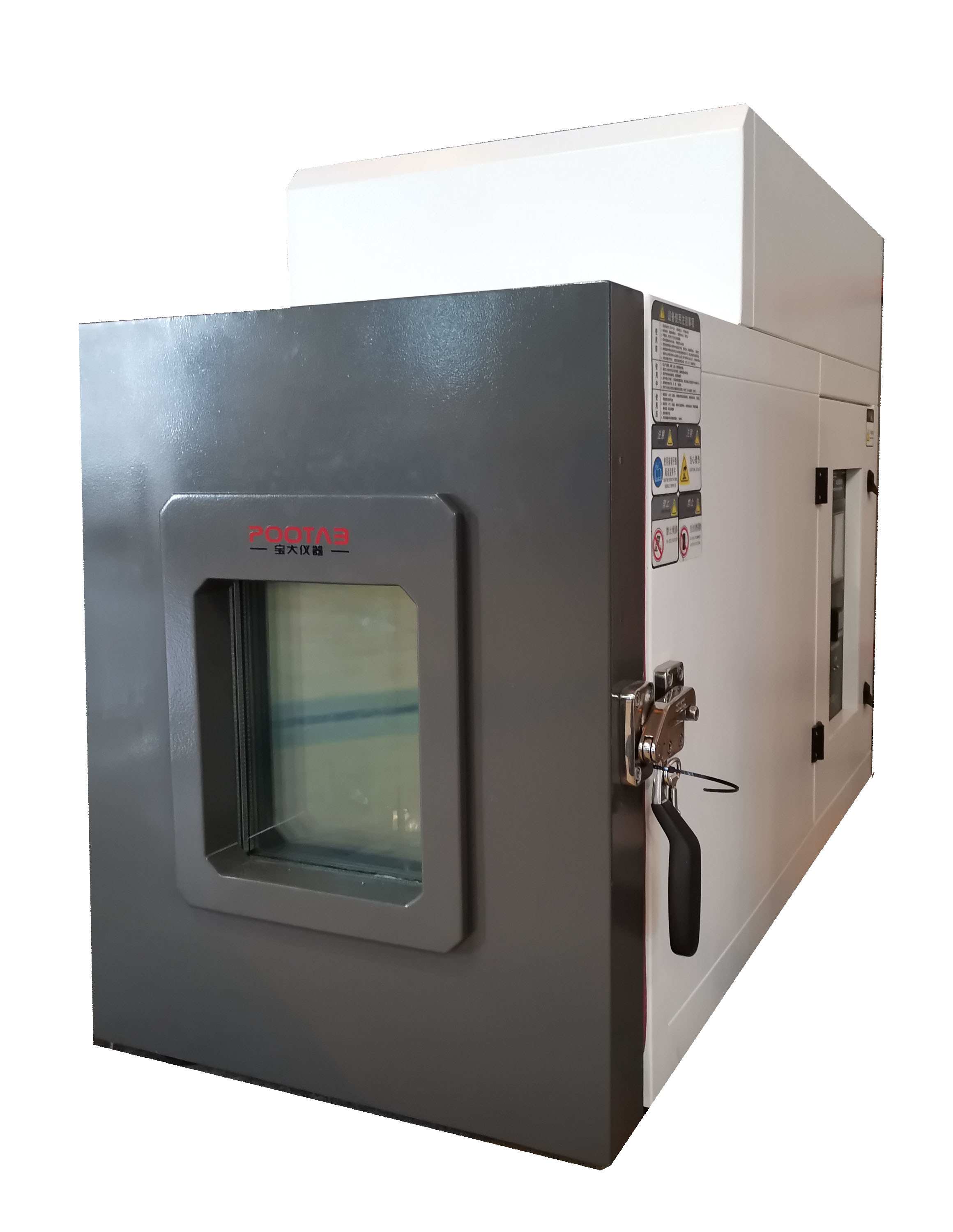

-40℃ 200℃ Tensile Testing Equipment With Visible Window

-40℃ 200℃ Tensile Testing Equipment With Visible Window
-40℃ 200℃ Tensile Testing Equipment With Visible Window -40℃ 200℃ Tensile Testing Equipment With Visible Window

Large Image :  -40℃ 200℃ Tensile Testing Equipment With Visible Window

Product Details:

Place of Origin: Guangdong,China
Brand Name: PERFECT
Certification: ISO
Model Number: PT-1167GDW

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: wooden case
Delivery Time: 25-35 days afer confirming order
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 sets per month
Detailed Product Description
Capacity Options: 200kg ,500kg,1000kg,2000kg Temperature Range: -40 To 200℃
Special Design: With Visual Window, Lighting Control Method: P.I.D. Automatic Temperature Calculation.
Weight: About 280kg Test Speed Range: 0.5 ~ 1000mm/min, Can Be Set.
Effective Test Space: 220mm Left To Right, 350mm Front And Rear. Size: 2 Ton High Low Temperature Tension Tensile Testing Machine With Visible Window
Motor: AC Servo Motor Port: Shenzhen
High Light:

200℃ Tensile Testing Equipment

,

-40℃ Tensile Testing Equipment

,

Visible Window Tensile Testing Machine

ISO Approved -40℃~200℃ High Low Temperature Tensile Testing Machine With Tensile Testing System





Characteristic of Temperature Test Machine :



1. Elegant design: Dynamic base supplemented by senior spray treatment of aluminum profiles columns

2. Precision transmission mechanism: Use high-precision, seamless ball screw and Timing belt as the guarantee accuracy of drive system.

3. Advanced control : Fully computerized datas acquisition and motion controlling, powerful and easy to operate.

4. Powerful software features: The full open test software of Windows OS, Users can use the software to complete almost all the existing functionality mechanical test items, but also according to their actual needs to edit their own testing methods. Testing results can be shared with the vast majority of office and other office automation software.

5. Ultra-high precision : Better than force measurement accuracy of 0.5 degrees , and 1/100,000 of the force value resolution, deformation measurement resolution up to 0.01mm.



Application :



High low temperature tensile test machine is our company launched a new testing machine, The machine adopts the latest design concepts and manufacturing technologies, the integration of precision oven and tensile testing machine as a new model, is designed to simulate the physical properties of various materials testing improved models in different environmental conditions, if install of high-low temperature test chamber on this machine, can be test the materials physical characteristics of tensile, pressure, shear at different temperature. When using the normal temperature test, high-low temperature test chamber can be removed to increase the use of space and convenience.





Machine Specifications:



Model Name PT-1167GDX
Product Name 2 Ton High Low Temperature Tension Tensile Testing Machine With Visible Window
Capacity Options 200kg, 500kg, 1000kg, 2000kg option any one.
Temperature Range -40℃ ~ 150℃ (with visual window, lighting).
Control Method P.I.D. automatic temperature calculation.
Distribution Accuracy ±1% (1℃) at- room 100℃.
Measurement and Control Software The full open test software of Windows OS.
Force Measurement Accuracy Better than ± 0.5%.
Force Measurement Resolution 1/100,000.
Deformation Measurement Resolution 0.01mm.
Effective Force Measurement Range 0.5 ~ 100% F.S.
Deformation displayed value Accuracy Better than ± 0.5%.
Test Speed Range 0.5 ~ 1000mm/min, Can be set.
Tests stroke Maximum 450mm, including gripper length.
Effective test space 220mm left to right, 350mm front and rear.
Unit switch Contains a variety of internationally accepted unit of measurement, users can define their own desired unit.
Stop mode Upper and lower security settings, emergency stop button, the program setting of strength and elongation, specimen damage sensing.
Special Features Can do continuous tension, sustained pressure, fatigue, bending, flexural and shear tests; users can also according to their actual test needs to define its own test methods.
Standard accessories Standard gripper X 1, tensile machine seat X1, RS-232 data lines X1, power cord X1.
Dimensions (W×D×H) Tensile machine: 76×45×154cm, Oven: 105×45×60cm, base seat: 80×60×71cm, After assembly: 80×105×225cm.
Weight About 280kg.
Motor AC servo motor.
Power 1PH, AC220V, 50/60Hz, 15A or assign.





FAQ

Q1: Are you a factory or trading company?
A: We are a factory which has specialized in the production of various dynamics testing instruments and instruments, with more than 20 years of production experience and 3 years of export experience.

Q2: Where is the loading port?
A: Shenzhen Port.

Q3: What's the MOQ of the product?
A: Different items have different MOQ. Welcome to contact our sales for getting more details.

Q4: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.

Q5: How long is the production cycle after ordering?
A: General it is about 15-30 days. We will send the time according to the order’s quantity.



Q6:Do you accept customization service? Can I have my logo on the machine?
A:Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.







Picture:

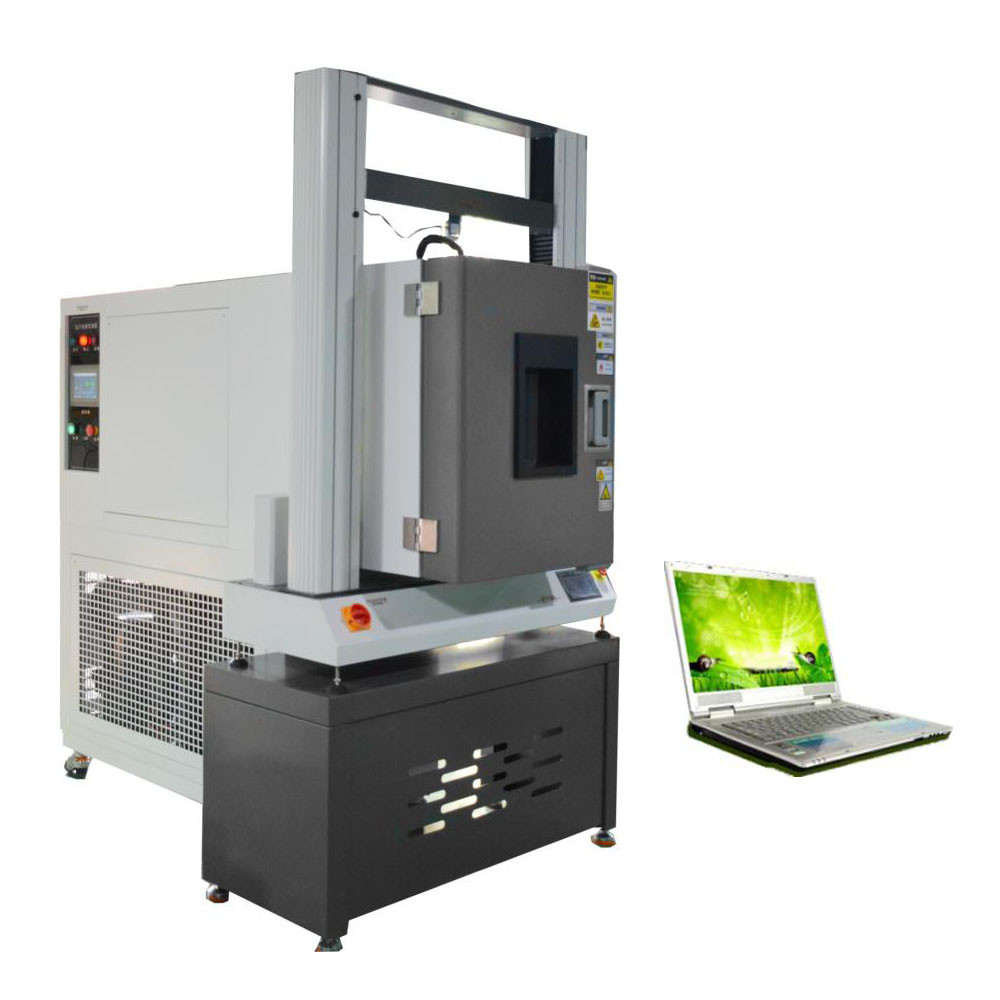

-40℃ 200℃ Tensile Testing Equipment With Visible Window 0
