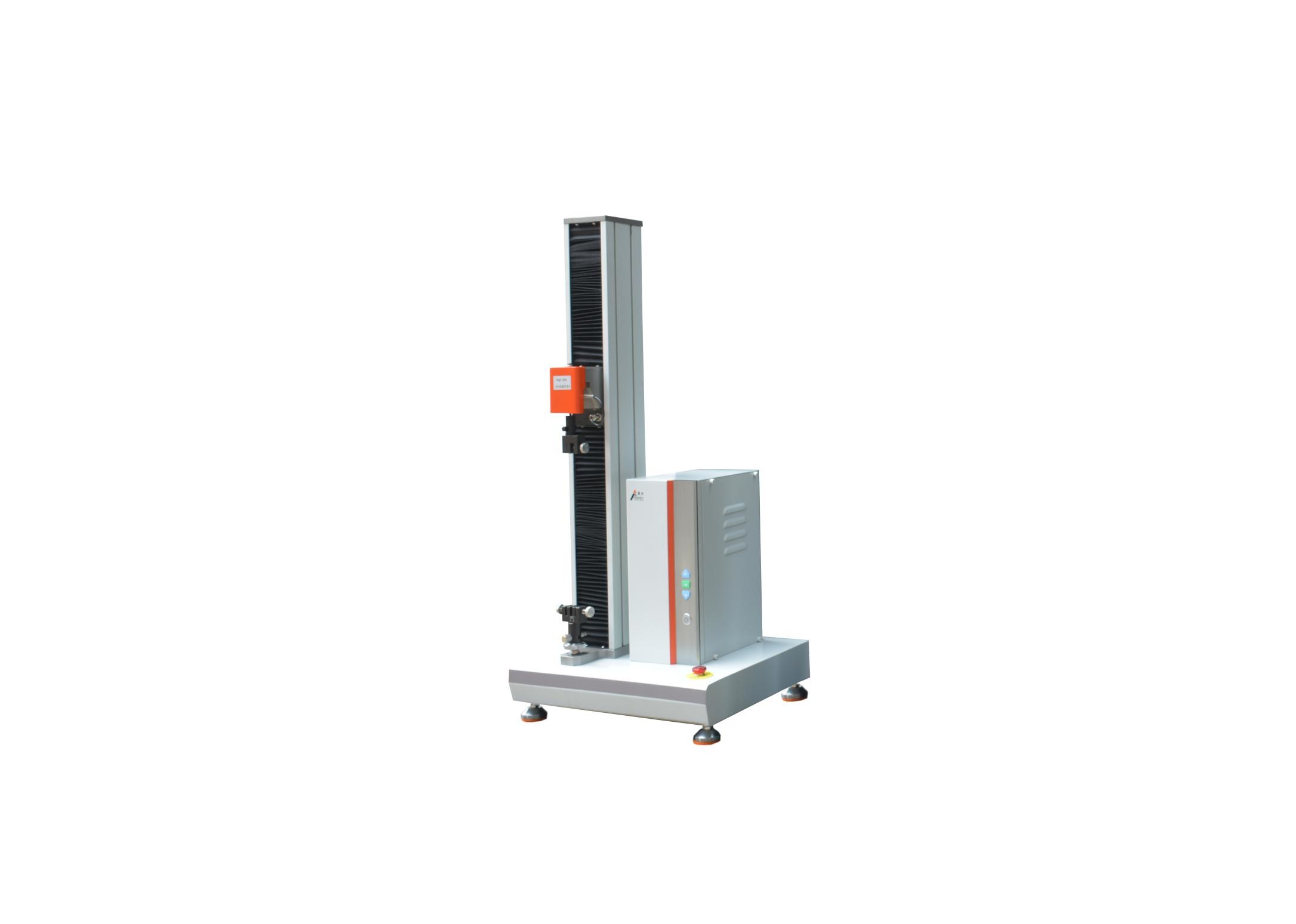

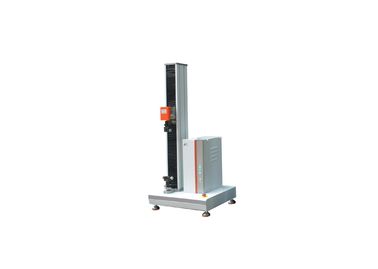

Max Stroke 650mm 180˚ 1PH Peel Strength Test Equipment

1 Set
MOQ
Negotiable
Price
Max Stroke 650mm 180˚ 1PH Peel Strength Test Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Capacity Option: 20N,,50N, 100N, 200N, 500N, 1KN
Motor: AC Servo Motor
Dimensions: 57×47×120cm (W×D×H)
Max Test Stroke: Max 650mm ( Excluding Jig )
Special Function: Constant Tensile, Constant Pressure And Fatigue Tests.
Weight: About 70kg
Force Measurement Accuracyt: Better Than ±0.5%
Strength Resolution: 1/100,000
High Light:

1PH Peel Strength Test Equipment

,

ASTM D903 Peel Strength Test Equipment

,

JIS K6854 Peel Strength Tester

Basic Infomation
Place of Origin: Dongguan,Guangdong,China
Brand Name: PERFECT
Certification: SGS,CE,ISO
Model Number: PT-6086
Payment & Shipping Terms
Packaging Details: In wooden case
Delivery Time: 7-10 work days afer confirming the order
Payment Terms: T/T, L/C, Western Union
Supply Ability: 300 sets per month
Product Description

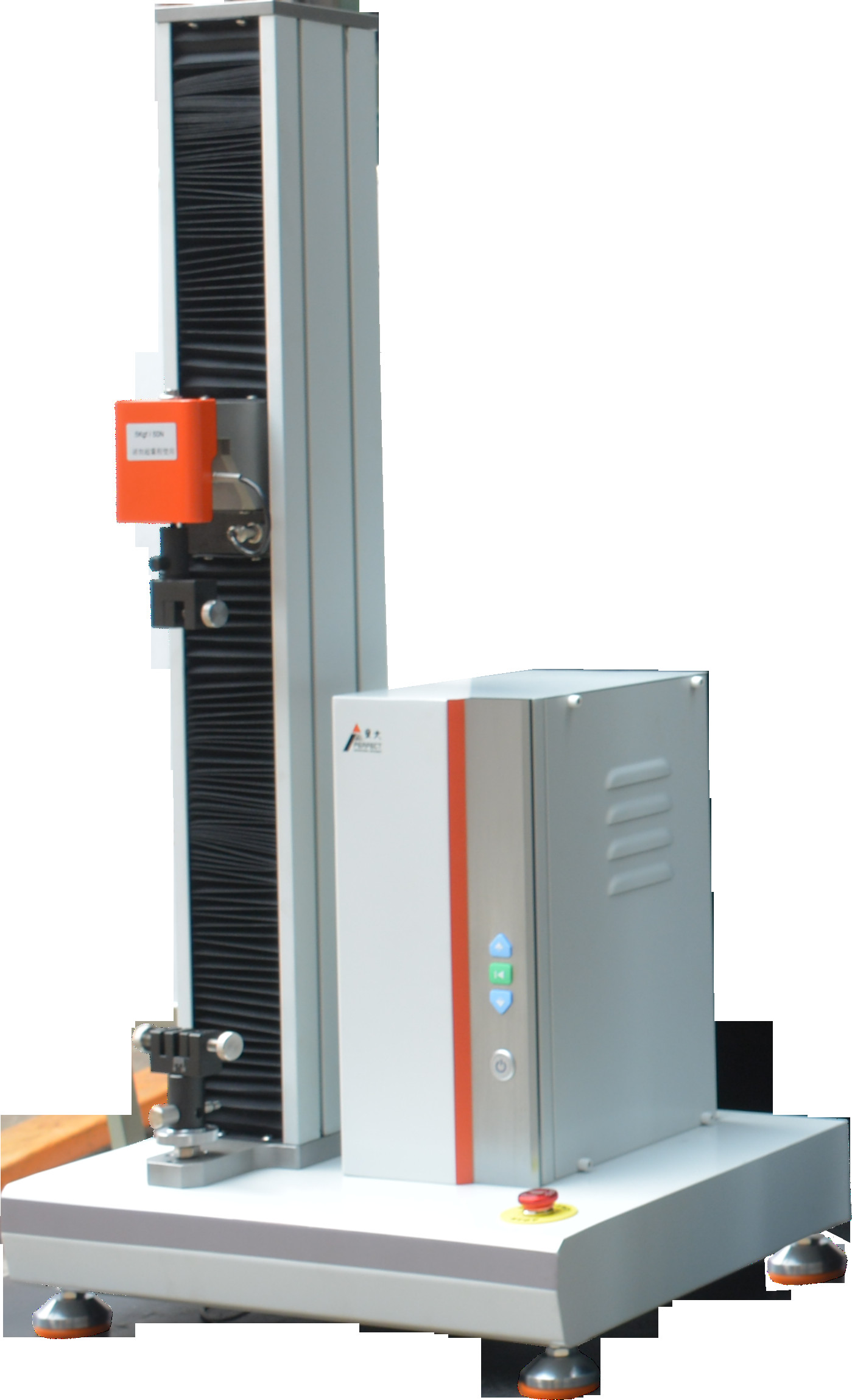

180˚ Peeling Strength Testing Machine Max Stroke 650mm With Manual Rolling Wheel

PT-6086 Peel Testing Machine.pdf





Introduction:



Computer System Peel Strength Tester is our company specifically for adhesive tape and adhesive industry design and development, suitable for a variety of adhesive products in different ways peeling strength testing of test equipment. Optional purchase different fixtures can be use for 180˚, 90˚, T-shaped and floating roller method (for high strength adhesive) peel test and other adhesive of tensile shear strength, splitting strength tests.



Standard: ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7





Peel Tester Specifications:



Product Name 180˚ Peel Strength Tester Stripping Test Machine with Manual Rolling Wheel
Model No. PT-6086
Capacity 2, 5, 10, 20, 50, 100kg option any one.
Control Software Professional testing software of Windows system
Force measurement Accuracy Better than ±0.5%
Force measurement Resolution 1/500,000
Strength Resolution 1/100,000
Effective force measurement range 0.5~100%F.S
Deformation displayed value Accuracy Better than ±0.5%
Test speed range 0.5 ~ 500mm/min, can be set.
Max test stroke Max 650mm ( Exclude grippers length )
Force Unit switch Contains a variety of measurement units, including units of international standard, users can define the desired unit.
Stop mode Upper and bottom limit setting, emergency stop, force and elongation setting stop, specimen break stop.
Special Function Can do constant tensile, constant pressure and fatigue tests.
Option Purchase 90° Peeling Fixture, Loop tack (Ring shape peeling) Fixture, PC or Notebook option one.
Dimensions About 57×47×120cm (W×D×H)
Weight About 70kg
Motor AC Servo Motor
Power 1PH, AC220V, 50Hz, 10A or Assign






Standard Configuration:



180° Peeling Fixture 1 Set
Peeling Steel Plate 3 pieces (50*150mm)
PT-6020 Manually Rolling Wheel 1 Set
Power Cord 1 piece
User Manual with CD 1 piece







Grippers:



Max Stroke 650mm 180˚ 1PH Peel Strength Test Equipment 0
