Product Details:
Payment & Shipping Terms:
|
| Capacity Option: | 20N,,50N, 100N, 200N, 500N, 1KN | Motor: | AC Servo Motor |
|---|---|---|---|
| Dimensions: | 57×47×120cm (W×D×H) | Max Test Stroke: | Max 650mm, Include Grippers Length |
| Weight: | About 70kg | Force Measurement Accuracyt: | Better Than ±0.5% |
| Strength Resolution: | 1/100,000 | Port: | Shenzhen, Guangzhou,HK |
| High Light: | 100kg Peel Strength Tester,1PH Peel Strength Tester,AC220V peel strength test equipment |
||

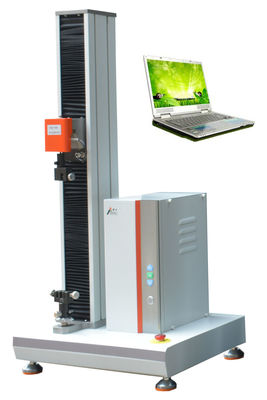

ISO approved 100kg Peel Strength Test Machine With Manual Rolling Wheel For Tape And Film
PT-6086 Peel Testing Machine.pdf
Machine Introduction:
Computer System Peel Strength Tester is our company specifically for adhesive tape and adhesive industry design and development, suitable for a variety of adhesive products in different ways peeling strength testing of test equipment. Optional purchase different fixtures can be use for 180˚, 90˚, T-shaped and floating roller method (for high strength adhesive) peel test and other adhesive of tensile shear strength, splitting strength tests.
Peel Tester Specifications:
| Product Name | 180˚ Peel Strength Tester Stripping Test Machine with Manual Rolling Wheel |
| Model No. | PT-6086 |
| Capacity | 2, 5, 10, 20, 50, 100kg option any one. |
| Control Software | Professional testing software of Windows system |
| Force measurement Accuracy | Better than ±0.5% |
| Force measurement Resolution | 1/500,000 |
| Strength Resolution | 1/100,000 |
| Effective force measurement range | 0.5~100%F.S |
| Deformation displayed value Accuracy | Better than ±0.5% |
| Test speed range | 0.5 ~ 500mm/min, can be set. |
| Max test stroke | Max 650mm, include grippers length |
| Force Unit switch | Contains a variety of measurement units, including units of international standard, users can define the desired unit. |
| Stop mode | Upper and bottom limit setting, emergency stop, force and elongation setting stop, specimen break stop. |
| Special Function | Can do constant tensile, constant pressure and fatigue tests. |
| Dimensions | About 57×47×120cm (W×D×H) |
| Weight | About 70kg |
| Motor | AC Servo Motor |
| Power | 1PH, AC220V, 50Hz, 10A or Assign |
| Standard | ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7 |
Standard Configuration:
| 180° Peeling Fixture | 1 Set |
| Peeling Steel Plate | 3 pieces (50*150mm) |
| PT-6020 Manually Rolling Wheel | 1 Set |
| Power Cord | 1 piece |
| User Manual with CD | 1 piece |
Option Purchase: 90° Peeling Fixture, Loop tack (Ring shape peeling) Fixture, PC or Notebook option one.
FAQ
Q1: Are you a factory or trading company?
A: We are a factory which has specialized in the production of various dynamics testing instruments and instruments, with more than 20 years of production experience and 3 years of export experience.
Q2: Where is the loading port?
A: Shenzhen Port.
Q3: What's the MOQ of the product?
A: 1 Set.
Q4: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.
Q5: How long is the production cycle after ordering?
A: General it is about 15-30 days. We will send the time according to the order’s quantity.
Fixtures:
