Tilt Angle 22° Adhesion Tape Rolling Ball Tack Tester

Tilt Angle 22° Adhesion Tape Rolling Ball Tack Tester
Tilt Angle 22° Adhesion Tape Rolling Ball Tack Tester
video play

Large Image :  Tilt Angle 22° Adhesion Tape Rolling Ball Tack Tester

Product Details:
Place of Origin: China
Brand Name: PERFECT
Certification: ISO9001
Model Number: PT-6032
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Neutral packing or as customers's request
Delivery Time: 3 working days afer confirming order
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets per month
Detailed Product Description
Standard: GB/4852, PSTC 7 Tilt Angle: 22°
Machine Dimension: 20*6*7cm Slope Length: 6.5 Inch
Port: Shenzhen Name: Rolling Ball Tack Tester
High Light:

Adhesion Tape Rolling Ball Tack Tester

,

GB/4852 Rolling Ball Tack Tester

,

Tilt Angle 22° Ball Tack Tester

22° Adhesion Tape Rolling Ball Tack Tester ; Initial Force Test With No. 14 Ball





Adhesion Tape Tack Testing Machine Use :



Inclined Plane Method Testing Equipment takes a steel ball rolling on adhesive tape by rolling distance to determine the merits of tape tack.



Machine operation procedures :

  1. Clean up chute and grounder on the tester by GB/T 4852-2002 specified ways,and after that you cannot touch them anymore.
  2. Fix test piece on hard and horizontal test board(glass pane,metal plate,plank,plastic plate and so on).Donot let test piece bulge,wrinkle or warping.
  3. As the picture show,fix chute and grounder on test plate which has installed test piece flatly.
  4. Put the grounder on specified initial position, let it roll down freely along the chute.
  5. Measure the length from the place where grounder stop to the end of the chute.
  6. Carry on the next initial adhesion testing.



Specifications:



Machine Mane Adhesion Tape Tack Testing Machine Inclined Plane Method Testing Equipment
Model No PT-6032
Standard GB/4852, PSTC 7

Tilt angle

22°

Rolling Ball Dia

(7/16”, No.14)

Machine Dimension

200mm*60mm*70mm

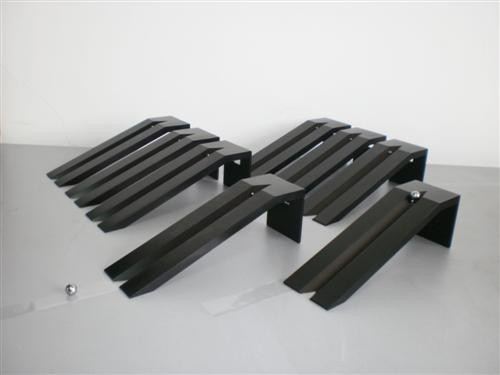

Structural Picture of tack test machine :



Tilt Angle 22° Adhesion Tape Rolling Ball Tack Tester 0





Tilt Angle 22° Adhesion Tape Rolling Ball Tack Tester 1
