Adhesive Tape Rolling Wheel Testing Equipment Electric Type PSTC-8
Application: Adhesive Tape Rolling Wheel Testing Equipment Electric Type adheres the tape to the standard test steel plate at a fixed pressure and speed (300 mm per minute or 600mm per minute ) for use as test specimen of tape retentivity force or peel / stripping / shearing force testing.It meets the test standards
Parameters of electric roller :
| Model | PT-6021 Rolling Wheel Testing Equipment Electric Type |
| Meet Standards | CNS 11888, PSTC-8,GB/T 2792 |
| Wheel details | 2kg wheel X2
Wheel diameter 84+-1mm Rubber thickness: 6mm Wheel width: 45mm (metal wheel) Wheel load: 2000g+-50g |
| Rubber Layer Hardness | Hs80±5, Shore A |
| Roll Speed | 300,600mm/min |
| Size(W×D×H) | 50×32×27cm |
| Weight | About 20kg |
| Power Supply | 1PH,AC220V,50/60Hz,4A |
Operation Steps for electric roller :
1. Place the machine table in a flat, solid working table and adjust level of the machine .
(The board is benchmarked, adjusted to 0.02/1000)
2. Connecting pwer line, press power button.
3. Put the test board (face up), flatly and positively on roll plate, then place adhesive tape down on the test board.
4. Check the position and attitude of roll wheel , (which easily loaded and unloaded), make it in a normal rolling state.
5. Set the roll times and speed on touch screen, press “ Start“ , it will roll the specimen automatically until it reaches the set test times,
then stop the test automatically.
6. If the roller compaction need to be stopped, press “Stop "
7. Please cut off the power,after working, and clean up the residue

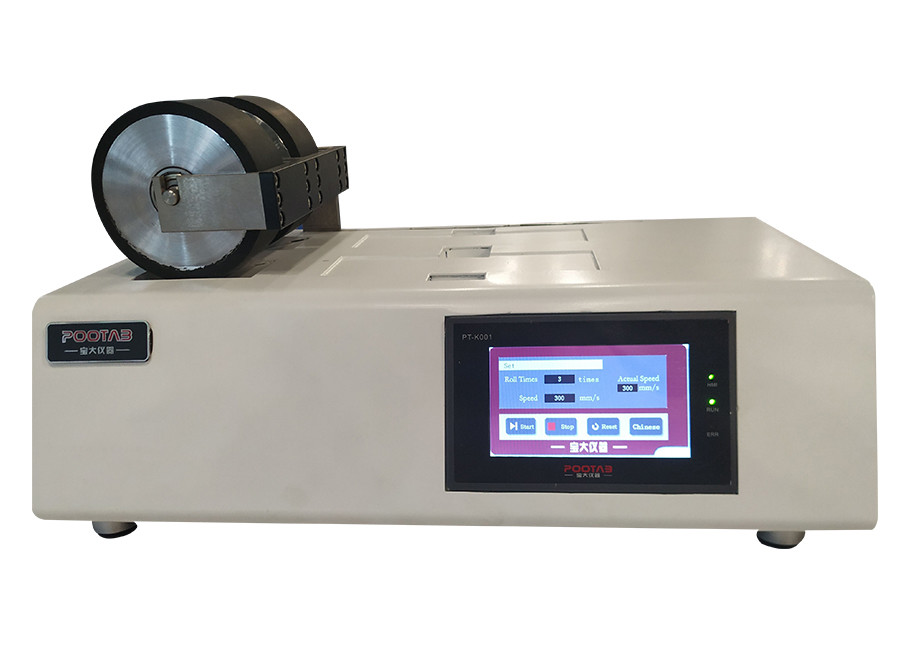

Electric Roll Down Machine Photo:
