Double Station Electric Rolling Wheel Adhesion Test Specimen Preparation
Summary: Double Station Electric Rolling Wheel Adhesion Test Specimen Preparation are used for the preparation of test specimens for adhesive tape peeling strength and stickiness. At a fixed pressure and speed, the adhesive tape sample is standardized and flat, and evenly adhered to the standard test substrate. The electric roll dowm devide meet standards CNS 11888, GB/T 2792, PSTC-8, GB/T 4851
Technical Parameters :
1.Model name:PT-6021 Double Station Electric Rolling Wheel Adhesion Test Specimen Preparation
2. Roll Wheel: 2 station
3. Wheel Diameter: 84mm; Width: 45 mm
4. Rubber Layer Thickness : 6mm; Hardness: 80°±5° (Shore A hardness)
5. Wheel Weight: 2000g±50g;
6. Rolling speed: 300mm/min; 600 mm/min
7. Power Supply: 220V AC±10% ,5A , 50/60Hz

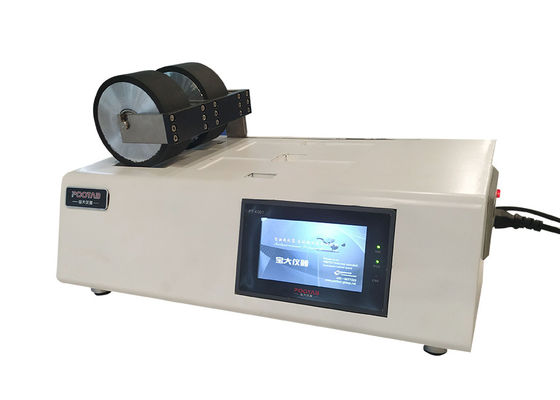

Double Station Electric rolling wheel photo:
Operation procedures :
(1). Place the machine on a flat and stable work surface, and adjust the level of the machine (the upper part of the machine is rolled flat
Board as the benchmark, adjusted to 0.02/1000);
(2). Connect the power cord plug of the machine to the power source and turn on the power switch (POWER);
(3). Place the test board with the test surface facing up, and place it on the rolling plate flat and upright. Then flatten the adhesive side of the adhesive tape down
Spread on the test board;
(4). Check the position and posture of the rolling roller (the roller can be easily loaded and unloaded) to make it in a normal rolling state;
(5). Set the number of rolling times and the speed of rolling on the touch screen, press the start button in the touch screen, the scroll wheel will automatically roll the test piece until it reaches the set number of tests and automatically shut down to complete the test;
(6). If you need to stop rolling during the rolling process, you can press the stop button to achieve this function;
(7). After the machine is finished, please cut off the power supply, clean up the residue on the machine, and keep it clean.
