| Device Name: | Tape Holding Force Tester | Environmental Temperature: | RT |
|---|---|---|---|
| Weight: | 1000g X 30 Pieces | Timer: | PLC Type |
| Steel Plate: | SUS#304 X 30 Pieces | Connector: | 30 Pieces |
| Equipment Weight: | About 80kg | ||
| High Light: | 30pcs Peel Strength Tester,SGS Peel Strength Tester,SGS pull off strength test |
||
Adhesive Sample Tape Holding Force Time Tester Pull Off By Weight
Equipment Use :
Adhesive Sample Tape Holding Force Time Tester is to hang the test board with the sample on the test frame vertically, and hang the weight of the specified weight at the lower end. The displacement of the sample after a certain period of time, or the time when the sample is completely detached, is used to characterize the resistance of the adhesive tape to pulling Ability to take off. This equipment uses single-chip microcomputer for timing and LCD liquid crystal display test time.
Tape Holding Power Tester Parameters :
| Model Name | PT-6010-30 Adhesive Sample Tape Holding Force Time Tester | ||
| Temperature | Room Temperature | ||
| Weight | 1kg X 30 | ||
| Timer | 30 Sets or use PLC | ||
| Stainless Steel Plate | SUS#304 X 30 | ||
| Connect Pieces | 30 Pieces | ||
|
Machine Weight |
About 80 kg (after packaged) | ||
|
Machine Size (W×D×H) |
About 90×31×103 cm | ||
Operation Instructions :
1. Wipe the experiment board and loading board with the wiping material and the cleaning agent, and then wipe them dry with a clean gauze. repeat this more than three times until the experiment panel is visually clean. Do not touch the work surface of the board with your hands or other objects after cleaning!
2. Under a certain temperature and humidity, paste the test sample between the test plate parallel to the longitudinal surface of the test plate and the loading plate, and use a standard roller to press it repeatedly at a certain speed. The general type is repeated three times!
3. Adjust the test frame in a certain experimental environment, fix the test board vertically on the test frame, connect the test board and the weight with a pin, start the experiment, time!
4. When the test board falls off, record the time taken to fall off, and the experiment is over!

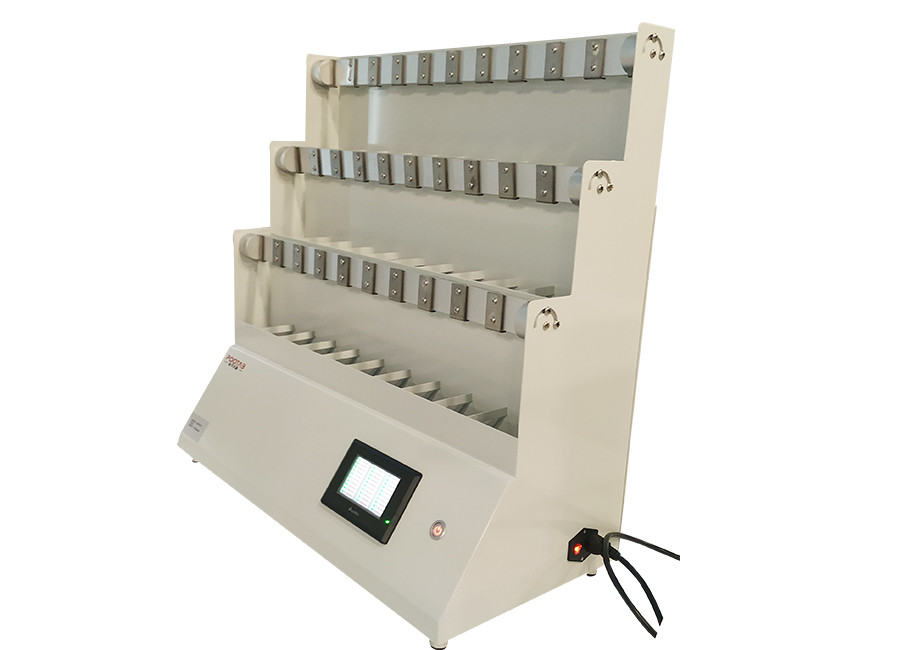

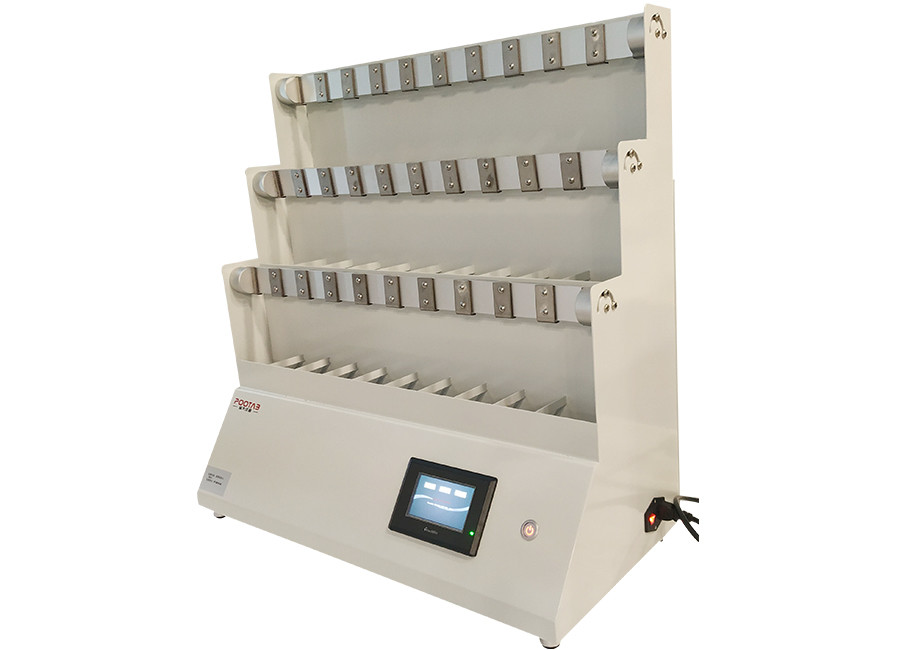

Tape Holding Force Detailed photos :
