Product Details:
Payment & Shipping Terms:
|
| Test Specimen: | Carrier Tape, Terminal Wire,Adhesive Tape, Etc | Load Cell: | 2、5、10、20、50kgf Choose One |
|---|---|---|---|
| Measure Accuracy: | ±1.0% | Test Speed: | 1～400mm/min，free Set |
| Test Stroke: | Max 300mm，not Including The Fixture Length | Motor: | Servo Motor |
| High Light: | Carrier Tape Peel Strength Tester,200N Peel Strength Tester,200N strength testing machine |
||
Horizontal Type Peel Strength Tester 200N For Carrier Tape
Introduction:
Horizontal Type Peel Strength Tester 200N For Carrier Tape , which is suitable for the adhesive products, paper products and printing and packaging, food, electronic, buttons, loaded with industry such as horizontal tensile, horizontal 180 degree peel, tearing, shear, pulling force.Special for adhesive tape, carrier tape, terminal wire, Wire harness.
To the determination of dynamic and static friction coefficients and adhesive composite products of plastic films, sheets, foils, paper, cardboard, woven bags, fabric styles, metal material composite belts for communication cables and optical cables, conveyor belts, textiles, papermaking and other related materials , Medical patch, release paper, protective film and other products peel strength measurement.,
Specification :
| Model Name | PT-6082 Horizontal Type Peel Strength Tester 200N For Carrier Tape |
| Load Cell Capacity |
2,5,10,20,50kgf ,choose one (20N, 50N,100N, 200N,500N) |
| Displayer | Touch type force and extention display |
| Measure Accuracy | Better than ±1.0% |
| Force Resolution | 1/500,000 |
| Effective Range of Measurement | 1~100%F.S |
| Deformation Display Accuracy | Better than ±1.0% |
| Test Speed | 1～400mm/min,free set |
| Test Stroke | Max 300mm,not including the fixture length |
| Unit Switch | kgf,gf ,N,kN,Ibf |
| Stress unit switch | MPa,kPa,kgf/cm2,Ibf/in2 |
| Deformed unit switch | mm,cm,in |
| Stop Method | Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure |
| Point Method | Manual pick - up and pre-set pick - up (20 points) |
| Standard Configuration | Peel fixture 1 set,user manual 1 ,qualified certificate 1,warranty card 1 |
| Computer extension | Yes |
| Machine Size | About 67×23×33cm(W×D×H) |
| Machine Weight | About 25kg |
| Motor | Stepper Motor /Servo Motor Option |
| Power Supply | 1PH,AC220V,50/60Hz,10A or as specified request |
Structural Features :
The machine adopts a horizontal structure, and the load chuck is driven by a high-precision gear reduction electronic speed control motor, and the loading performance is stable. The whole machine is composed of a drag motor, a mainframe, a microcomputer controller, a microprinter, etc. The force measurement unit is composed of a high-precision force sensor and a digital control system with a single-chip computer as the central processor.

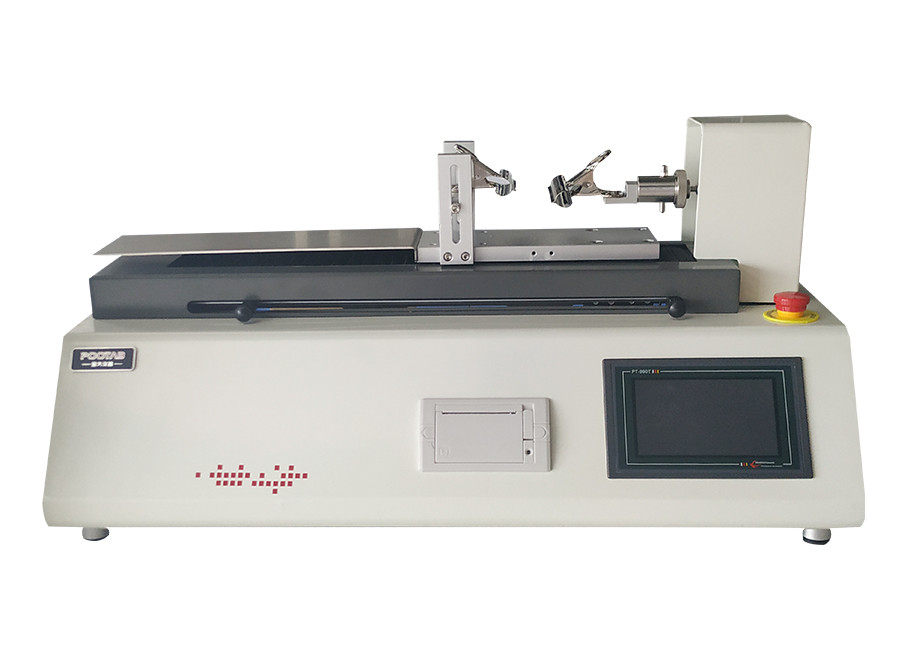

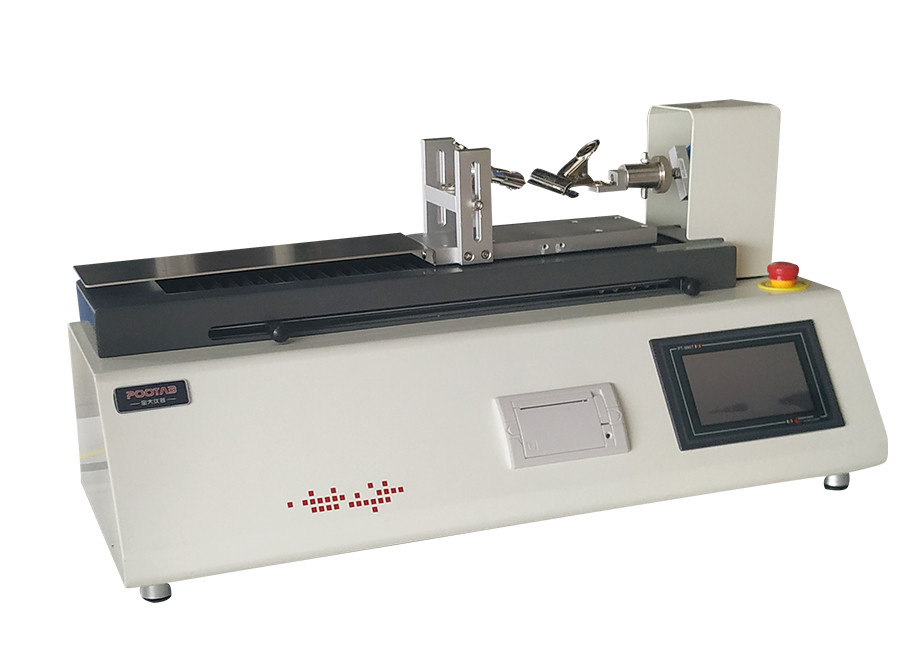

Carrier tape Horizontal Peel Machine Pic :
