| Specimen: | Thin Wire, Thick Wire,yarn,etc | Item: | Tensile Machine, Tensile Strength Tester, Stretch Test |
|---|---|---|---|
| Force Sensor: | 100kgf,200kgf,500kgf,1000kgf,2000kgf Optional | Motor: | Panasonic AC Servo Motor |
| Size: | About 90×65×182cm(W×D×H) | Weight: | About 195kg After Packaging |
| High Light: | 2000kgf Yarn Stretch Extend Tester,1PH Tensile Testing Machine,2000kgf Tensile Testing Machine |
||
Thin Wire Tensile Testing Mahine Yarn Stretch Extend Tester
Use: The thin wire tensile testing mahine yarn stretch extend tester ,is a double arm type universal testing machine,mainly designed for the tensile strength test of thin wire,thick wire,yarn,etc.With different clamp or grips, it can do many other tests, has a powerful numerical control display system, which can do tensile, bending, peeling, puncture, maximum test force, breaking force, compression force, yield strength,elastic modulus, elongation,pull press test, and other parameters.and other tests in the entire material within 20KN. The required parameters can be set by the full LCD numerical control. The curve, displacement, and force value can be dynamically displayed in On the digital display, connect to a computer to realize full computer control and print standard test reports.
Meet Standards:ASTM D903,GB/T16491,GB/T1040,GB/T8808,GB13022,GB/T 2790/2791/2792,CNS-11888,JIS K6854, PSTC-7
Specifications :
| Model | PT-1166 Thin Wire Tensile Testing Mahine Yarn Stretch Extend Tester |
| Capacity | 2,5,10,20,50,100,200,500,1000,2000kgf, any one option |
| Software | CI701G |
| Force Accuracy | ±0.5% |
| Force Resolution | 1/500,000 |
|
Measurement Range |
0.5~100%F.S |
| Deformation Display Accuracy | ±0.5% |
| Test Speed | 0.05～1000mm/min,free set |
| Test Travel | Max 1000mm,exclude clamp/grip |
| Effective Test Space | Front back no limit,left right 400mm |
| Unit Switch | A variety of measurement units including international units |
| Stop Method | Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure |
| Standard Configuration | software and data line 1 sets, 1 sets of equipment power supply, operating instructions user manual, 1 product certification , 1 product warranty card |
| Purchase Configuration | Business computer,printer,various test grips |
| Size | About 90×65×182cm(W×D×H) |
| Weight | About 195 kg after packed |
| Motor | AC servo motor |
| Power Supply | 1PH,AC220V,50/60Hz,10A or as requested |

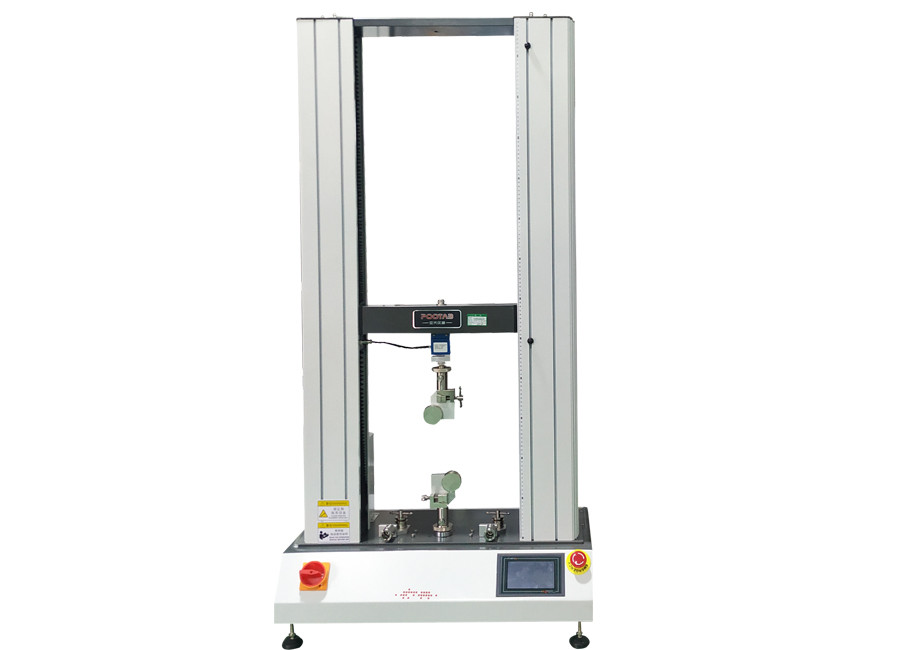

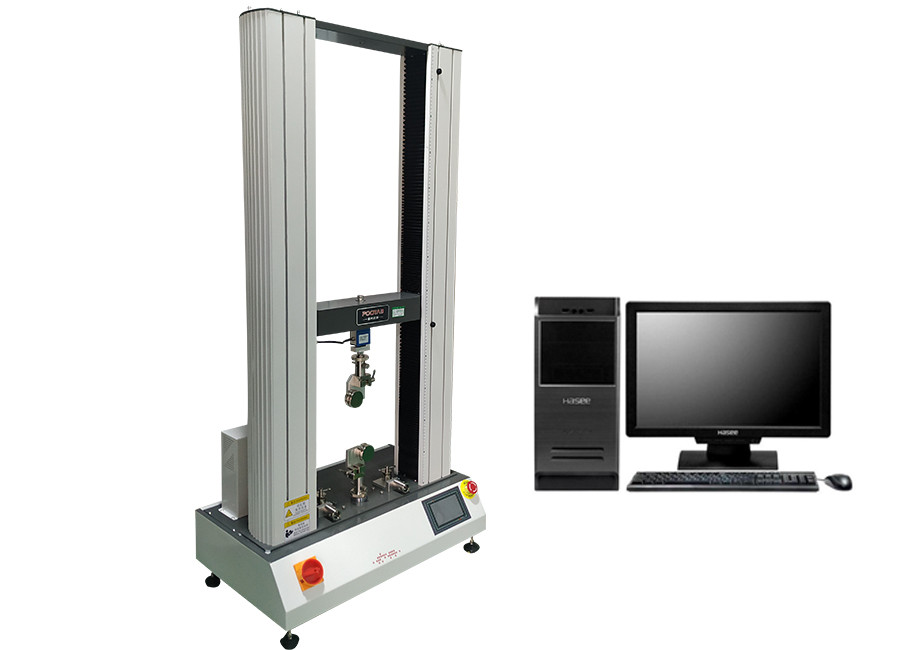

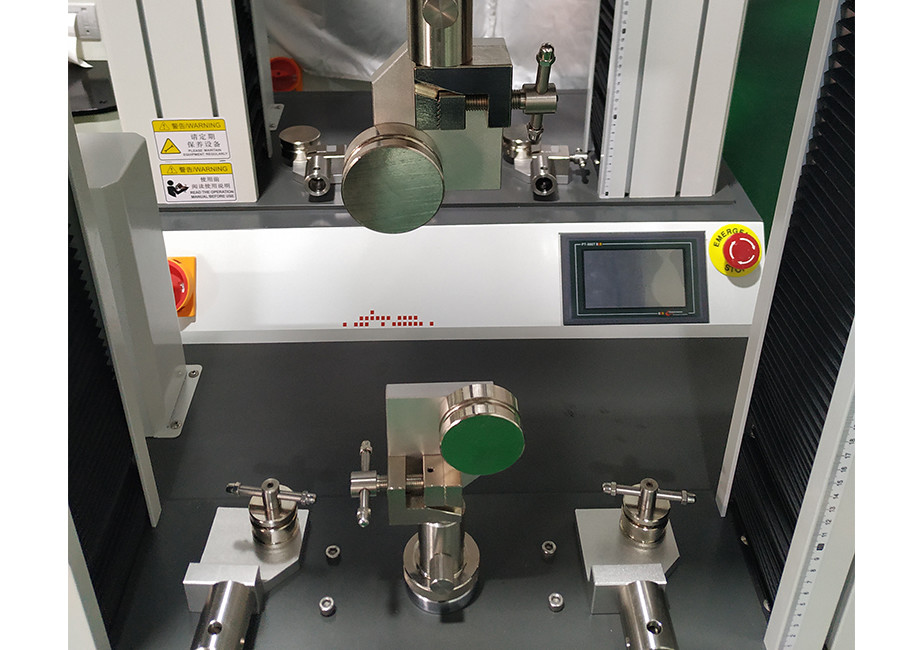

Wire Tensile Testing Mahine Pictures :
