Computer Control System Peel Tester Adhesion Bonding Strength At 180° Angle
Description:
The peel strength tensile testing machine is used to measure the bond of the strength of a material. This test typically measures the bond strength of an adhesive. In scientific terms, the peel strength is the average load per unit width of bond line required to separate bonded materials by an angle of 180 degrees, this angle is known as the angle of separation.
Peel Machine Parameters:
| Model Name | PT-1179 Computer Control System Peel Tester Adhesion Bonding Strength At 180° Angle |
| Sensor Capacity | 5,10,20,50,100,200,500kgf, one option(American Interface load cell) |
| Software | Windows professional testing software by our company |
| Input Terminals |
load cells input , two point extension 1 group input, power input; Internet port input |
| Measuring Accuracy | Better than ±0.5%(GB-0.5 class) |
| Force Resolution | 1/1,000,000 |
| Test Speed | 0.01～3000mm/min,free set |
| Displacement Resolution | 0.00004mm |
| Test Travel | Max 700mm, 1000mm, one option,exclude grip |
| Effective Test Space | Dia. 120mm |
| Unit Switch | Any of various units of measurement, including international units |
| Stop Method | Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure |
| Standard Configuration | Fixture/grip* 1 pair, software and data line *1 sets, power supply*1, operating manual*1, product certification *1 copy, warranty card*1 |
| Purchase Configuration |
printer 1 set, other kinds of test fixtures/grips (purchase separately) |
| Size | About 57×47×150cm(W×D×H) |
| Weight | About 90kg |
| Motor | AC servo motor |
| Control Model | Computer measurement and control system(removable type) |
| Meet Standards | ASTM D638, ASTM D790, ASTM D3039, ASTM D882, ASTM D412, ASTM D429, ASTM D624, ASTM D76, ASTM E154, ASTM C836, ASTM D2240, ASTM D3039, ASTM D3786, ASTM D4533, ASTM D4595, ASTM D4632, ASTM D4833, ASTM D6241, EN 12311-1 /ISO R527, DIN 53504, EN 12310 Part 1:2000, EN ISO 12236, ISO 34, ISO 10319, ISO 527, ISO 178, ISO 2062, ISO 604, IS 13360, IS 3400, IS 15477 |
Cross Head Driven :
Cross head driven by backlash free ball screw assembly to provide high load capacity.
Maximum Travel
From grip to grip is 700mm,Higher length is also available on demand (optional,1000mm)
Controlling Device :
Measurement control system main mainframe, computerized.
Software :
Software to start the test quicker, Menu driven software parameters, User-friendly and easy to understand, Can provide full control of all parameters, Full test analysis with statistical and graphical print-out, User can export the generated data in Excel, PDF, Word format.
Grips (Fixtures, Clamps) :
Choose from a wide range of grips and fixtures for tear, tension, compression, flexural, shear, peel, puncture and bond testing.
Result and Parameters :
Max Load, Max Elongation, Yield force, Yield Elongation, Break force, break elongation, GPD, etc test results and parameters can be observed
Safety Features :
Over load protection, reverse direction load protection, Maximum elongation protection for load cell, Limit switches on either end etc.

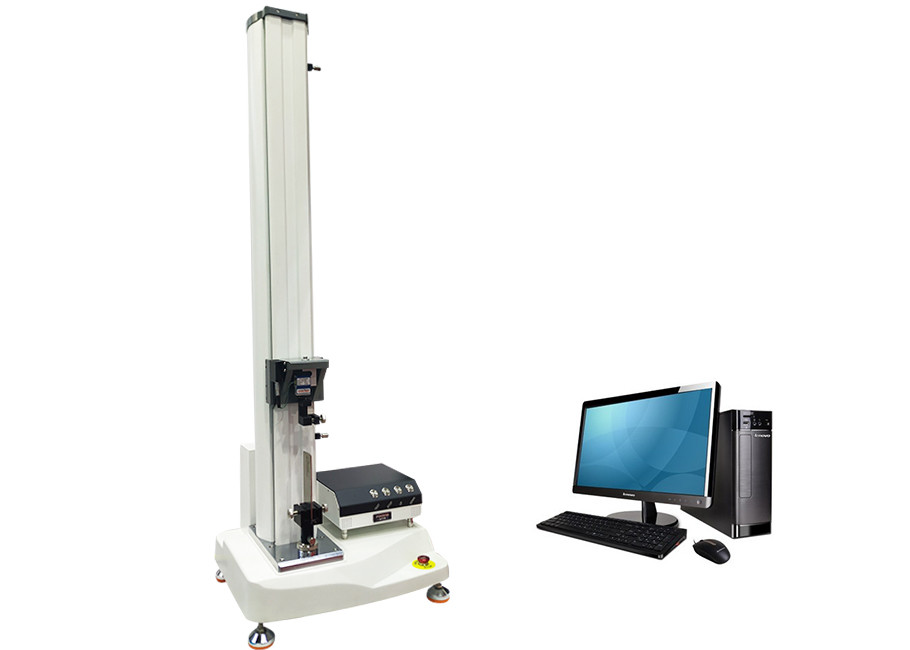

Peel Test Machine Photo :
180 Degree Peel Test :
