Computerized Servo Tensile Testing Machine Double Column High Temperature

Computerized Servo Tensile Testing Machine Double Column High Temperature
Computerized Servo Tensile Testing Machine Double Column High Temperature Computerized Servo Tensile Testing Machine Double Column High Temperature

Large Image :  Computerized Servo Tensile Testing Machine Double Column High Temperature

Product Details:
Place of Origin: Dongguan,Guangdong,China
Brand Name: POOTAB
Certification: ISO,CE,SGS
Model Number: PT-1167HXX
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: 15 to 20 working days after order confirmation
Payment Terms: T/T, L/C, Western Union
Supply Ability: 150 Sets Per Month
Detailed Product Description
Equipment Name: High Temperature Tensile Testing Machine Structure: Universal Testing Machine+high Temperature Chamber
Temperature Range: Room Temperature To 200℃ Test Content: Tensile, Compress,strip, Bonding, Tear, Bend,etc
Force Sensor: 1000N,2000N,5000N,10KN,20KN
High Light:

Computerized Servo Tensile Testing Machine

,

Tensile Testing Machine Double Column

,

High Temperature Tensile Strength Testing Machine

Computerized Servo Tensile Testing Machine Double Column With High Temperature



Application :

High temperature tensile machine is mainly suitable for testing of metal and non-metal materials, such as rubber, plastic, wire and cable, optical fiber and optical cable, seat belts, safety belts, leather belt composite materials, plastic profiles, waterproof coiled materials, steel pipes, copper materials, profiles, spring steel, Bearing steel, stainless steel (and other high-hardness steels), castings, steel plates, steel strips, non-ferrous metal wires have tensile, compression, bending, shearing, peeling, tearing, two-point extension under high temperature environment (required separately Extensometer) and many other tests.

This high temperature UTM machine is equipped with an oven, which can test the physical properties of the material in different temperature environments, such as tensile, pressure, and shear. When using the room temperature test, the oven can be removed to increase the use space and convenience.



Test Items :

● Tensile stress ●Tensile strength
● Tear strength ●Elongation at break
● Constant elongation stress ●Constant stress elongation
● Constant stress value ●Tear strength
● Adhesive bonding force

● Compressive strength, elastic modulus,

● Elongation, peeling interval



High Temperature Tensile Tester Parameters :

Model. PT-1167HXX Computerized Servo Tensile Testing Machine Double Column With High Temperature Chamber
Capacity Of Force 100, 200,500 ,1000,2000 kgf, choose one
Temperature Range Room temperature ~ 200℃
Control Method P.I.D. automatic temperature calculation
Distribution Accuracy ±1%(1℃) at- room100℃
Measurement and Control Software The full open test software of Windows
Force Measurement Accuracy ±0.5%
Force Measurement Resolution 1/100,000
Accuracy of beam displacement measurement. 0.01mm
Effective Force Measurement Range 0.5~100%F.S
Deformation displayed value Accuracy ±0.5%
Test speed 0.5~1000mm/min
Tests stroke Max 450mm,not including the fixture length
Effective test space Right left 220mm,Back Front 350mm
Unit switch ontains a variety of internationally accepted unit of measurement, users can define their own desired unit.
Stop mode Upper and lower security settings, emergency stop button, the program setting of strength and elongation, specimen damage sensing.
Special Features tension, sustained pressure, fatigue, bending, flexural and shear tests; users can also according to their actual test needs to define its own test methods.
Standard accessories Standard gripper X 1, tensile machine seat X1, RS-232 data lines X1, power cord X1.
Machine Size (W×D×H) Tensile Machine Size : 76×45×154cm,Oven Size: 105×45×60cm,Base Size : 80×60×71cm,Whole Size : 80×105×225cm
Machine Weight About 280kg
Motor Panasonic AC servo motor.
Power Supply 1PH,AC220V,50/60Hz,15A

















































































UTM Machine Pictures :

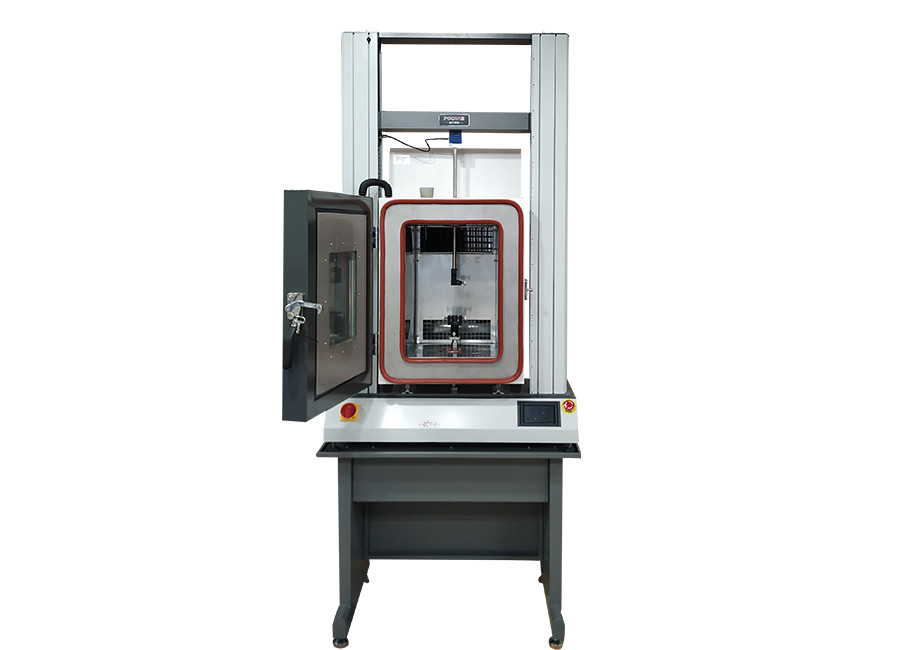

Computerized Servo Tensile Testing Machine Double Column High Temperature 0

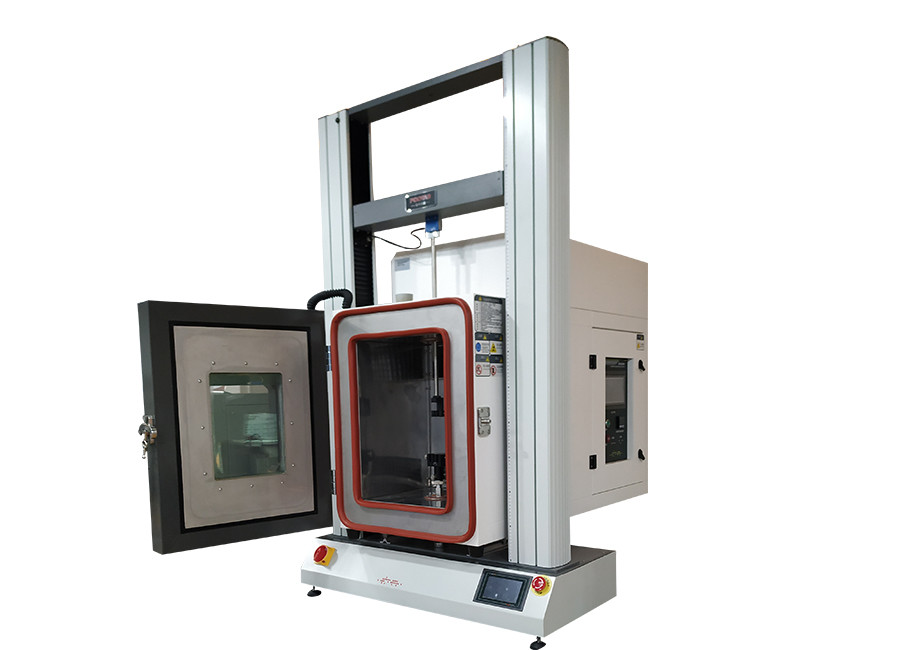

Computerized Servo Tensile Testing Machine Double Column High Temperature 1
