Payment & Shipping Terms:
|Capacity Options:||10000kg||Temperature Range:||-40 To 200℃|
|Special Design:||With Visual Window, Lighting||Control Method:||P.I.D. Automatic Temperature Calculation.|
|Weight:||About 280kg||Test Speed Range:||0.5 ~ 1000mm/min, Can Be Set.|
|Effective Test Space:||220mm Left To Right, 350mm Front And Rear.||Size:||2 Ton High Low Temperature Tension Tensile Testing Machine With Visible Window|
|Motor:||AC Servo Motor||Port:||Shenzhen|
10000kg Tensile Compression Testing Machine,
10 Ton Tension And Compression Testing Machine,
10 Ton Tensile Compression Tester

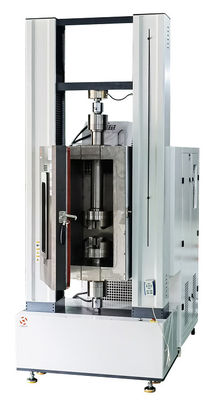

1000mm/Min Servo Motor 10000kg ( 10 Ton ) High Temperature Tensile Compress Testing Machine
|Product Name||2 Ton High Low Temperature Tension Tensile Testing Machine With Visible Window|
|Capacity Options||200kg, 500kg, 1000kg, 2000kg, 10ton option any one.|
|Temperature Range||-40℃ ~ 150℃ (with visual window, lighting).|
|Control Method||P.I.D. automatic temperature calculation.|
|Distribution Accuracy||±1% (1℃) at- room 100℃.|
|Measurement and Control Software||The full open test software of Windows OS.|
|Force Measurement Accuracy||Better than ± 0.5%.|
|Force Measurement Resolution||1/100,000.|
|Deformation Measurement Resolution||0.01mm.|
|Effective Force Measurement Range||0.5 ~ 100% F.S.|
|Deformation displayed value Accuracy||Better than ± 0.5%.|
|Test Speed Range||0.5 ~ 1000mm/min, Can be set.|
|Tests stroke||Maximum 450mm, including gripper length.|
|Effective test space||220mm left to right, 350mm front and rear.|
|Unit switch||Contains a variety of internationally accepted unit of measurement, users can define their own desired unit.|
|Stop mode||Upper and lower security settings, emergency stop button, the program setting of strength and elongation, specimen damage sensing.|
|Special Features||Can do continuous tension, sustained pressure, fatigue, bending, flexural and shear tests; users can also according to their actual test needs to define its own test methods.|
|Standard accessories||Standard gripper X 1, tensile machine seat X1, RS-232 data lines X1, power cord X1.|
|Dimensions (W×D×H)||Tensile machine: 76×45×154cm, Oven: 105×45×60cm, base seat: 80×60×71cm, After assembly: 80×105×225cm.|
|Motor||AC servo motor.|
|Power||1PH, AC220V, 50/60Hz, 15A or assign.|
High low temperature tensile test machine is our company launched a new testing machine, The machine adopts the latest design concepts and manufacturing technologies, the integration of precision oven and tensile testing machine as a new model, is designed to simulate the physical properties of various materials testing improved models in different environmental conditions, if install of high-low temperature test chamber on this machine, can be test the materials physical characteristics of tensile, pressure, shear at different temperature. When using the normal temperature test, high-low temperature test chamber can be removed to increase the use of space and convenience.
Characteristic of Temperature Test Machine :
1. Elegant design: Dynamic base supplemented by senior spray treatment of aluminum profiles columns
2. Precision transmission mechanism: Use high-precision, seamless ball screw and Timing belt as the guarantee accuracy of drive system.
3. Advanced control : Fully computerized datas acquisition and motion controlling, powerful and easy to operate.
4. Powerful software features: The full open test software of Windows OS, Users can use the software to complete almost all the existing functionality mechanical test items, but also according to their actual needs to edit their own testing methods. Testing results can be shared with the vast majority of office and other office automation software.
5. Ultra-high precision : Better than force measurement accuracy of 0.5 degrees , and 1/100,000 of the force value resolution, deformation measurement resolution up to 0.01mm.
