| 1. The width of the guide roller surface | 600MM |
| 2. Effective width of coating | 500MM |
| 3. Mechanical speed | 30M/MIN |
| 4. Production speed | 1-25M/MIN |
| 5. Unwinding diameter | MaxØ400MM |
| 6. Receiving coupon diameter | MaxØ400MM |
| 7. Coating method | comma knife coating (comma & slit coating), micro-gravure coating |
| 8. Tension control accuracy | ±0.3KG |
| 9. Installation method of retractable reel | cantilever |
| 10. Inner diameter of paper tube | 3 inches (key-bar type air expansion shaft) |
| 11. Length of oven | 6 m 2 m*3 room |
| 12. Oven temperature range | 25-160℃, temperature control accuracy ±2℃ |
| 13. Heating method | electric heating |
Coating machine parts
1. 1# 2# Unwinding part 2 sets
2. 1 set of traction part
3. 1 set of multifunctional coating unit
4. Oven section 2 meters*3 sections
5. Hot air drying system 3 groups
6. 1 set of deviation correction part at the outlet of the oven
7. Compound part 1 set
8. Receiving part 1 set
9. 1 set of electrical control system

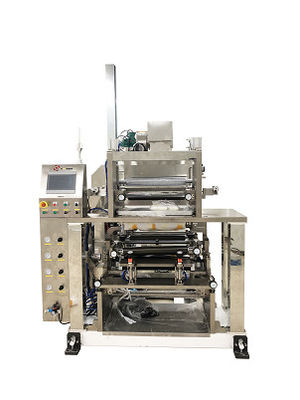

Machine Picture:
Controller:
