| Test Speed: | 0.01～3000mm/min | Test Content: | Peel Adhesion Force Test, Loop Tack Tester, 180/90 Degree Peel Test, Tensile Test |
|---|---|---|---|
| Test Travel: | 700mm | Effective Test Space: | 120mm |
| Controll Method: | Computer Software Controlled | Accessories: | Hang Roller, Steel Panel, Peel Fixture,etc |
| High Light: | 50N Tension Pull Tester,50N Peel Adhesion Testing Machine,Adhesive Tape Peel Strength Tester |
||

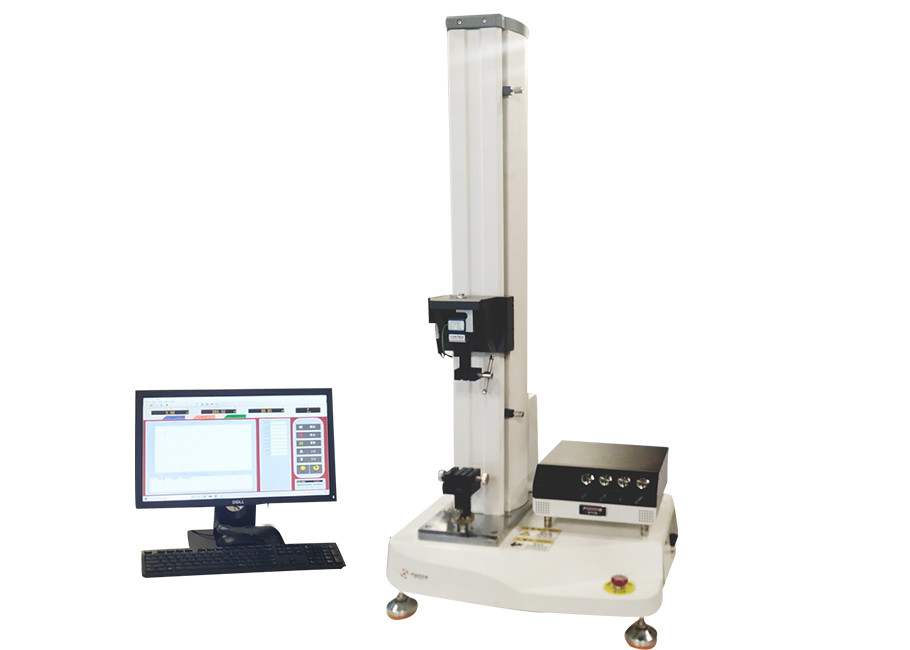

Peel Adhesion Test Machine 50N Tension Pull Tester For Adhesive Tapes
Use :
High precision computer system stripping tester, peel adheshion tester is for mearsuring peel strength of adhesive tapes, films, release paper. Besides the 180 degree peel test, loop tack test, pull test, T shape peel, and other mechanics tests.
Specification:
| Model Name | PT-1179D Peel Adhesion Test Machine 50N Tension Pull Tester For Adhesive Tapes |
| Sensor Capacity | 5,10,20,50,100,200,500kgf, one option |
| Test Software | Windows professional testing software,meet WINDOWS system |
| Input Terminals |
load cells input , two point extension 1 group input, power input; Internet port input |
| Measurement Accuracy | Better than ±0.5%(GB-0.5 class) |
| Force Resolution | 1/1,000,000 |
| Test Speed | 0.01～3000mm/min,free set |
| Displacement Resolution | 0.00004mm |
| Test Travel | Max 700mm,exclude grip |
| Effective Test Space | Dia. 120mm |
| Stop Method | Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure |
| Standard Configuration | 1 pair of 180° peeling jig, 10 pieces of peeling steel plate 50*150mm, 1 PT-6020 manual rolling roller,software and data line *1 sets, power supply*1, operating manual*1, product certificate*1 , warranty card*1 |
| Purchase Configuration |
printer 1 set, other kinds of test fixtures/grips (purchase separately) |
| Size/Weight | About 57×47×150cm(W×D×H)/about70kg |
| Motor | AC servo motor |
| Control Model | Computer measurement and control system(removable type) |
Test Fixtures :
180 degree peel test grip 90 degree peel test grip loop tack test grip
2kg Load Roller :
hand operated roller
electric type roller (speed free setting)

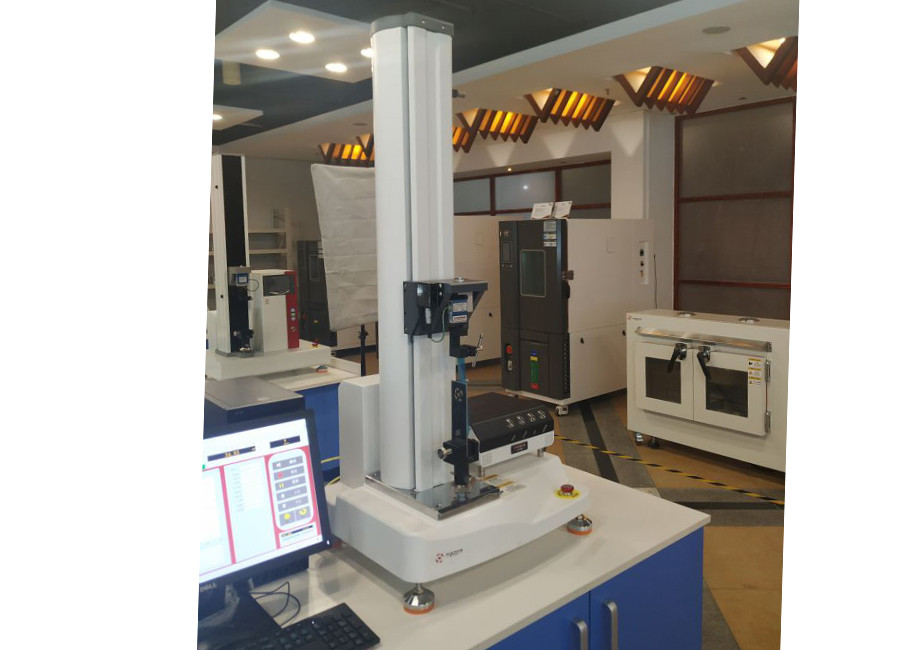

Picture Of Peel Adhesion Tester :
