Package Material Leak Seal Strength Testing Machine ASTM F1140
Use :
This package leak seal strength tester is suitable for heat sealing, bonding process of flexible packaging, aseptic packaging and so on various sealing side sealing strength, heat sealing quality, as well as the whole bag burst pressure, seal leakage quantitative measurement of the performance of all kinds of plastic anti-theft cap seal performance of quantitative determination of all kinds of hose overall sealing performance, compression strength, the cap body connection strength, the strength of bolt strength, heat sealing side sealing, street strength index of quantitative determination.
Parameters :
| Model | PT-BZ001 Package Material Leak Seal Strength Testing Machine ASTM F1140 |
| Test Range |
0～250KPa, 0～36.3 psi (Standard ) 0～400KPa, 0～58.0psi (purchase option) 0～600kPa;0～87.0 psi (purchase option) 0～1.6MPa;0～232.1psi (purchase option) |
| Pressure of Compressed Air Source |
0.4MPa～0.9MPa, air source be provided by users themselves |
| Air Source inlet size | Φ8mm polyurethane pipe |
| Machine Size | 300 mm(L)× 310 mm(W)× 180 mm(H) |
| Test Seat Size | 305 mm(L)× 356mm(B)×325mm(H) |
| Machine Weight | 23kg |
| Source Of Power Supply | AC 220V 50Hz |
Follow Standards :
GB 10440,GB 18454,GB 19741,GB 17447,ASTM F1140,ASTM F2054,ISO 11607-1,ISO 11607-2,GB/T 17876,GB/T 10004,GB/T 10005, BB/T 0003,BB/T 0025,QB/T 1871,YBB 00252005,YBB 00162002
Configuration :
Standard configuration: machine mainframe, test rack, micro printer
Other purchase configuration : the professional software, communication cable, test accessories (restraint board test device;Open packaging test equipment;Test device for sealing performance of plastic anti-theft bottle cap;Test equipment for hose sealing performance;Aerosol valve sealing test equipment.
Principle:
Positive pressure test: after filling the gas with a certain pressure into the
sample by setting parameters, the pressure sensor is used to detect the pressure changes inside the sample to determine the overall sealing performance of the sample, and the pressure resistance and bursting performance of the sample are tested with the specified pressure pressure.

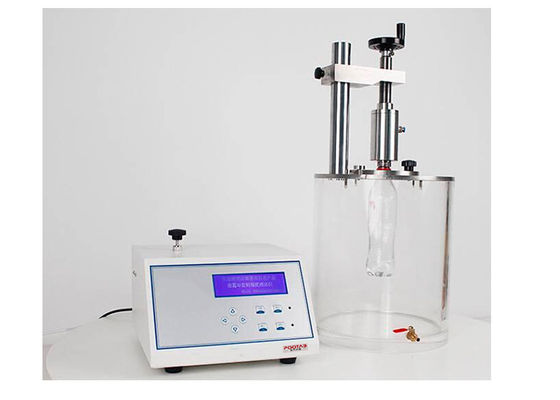

Leak Seal Strength Tester Picture :
