0-650mm Test Range Peel Strength Analyzer AC220V / 50Hz 1PH 10A Power Supply

0-650mm Test Range Peel Strength Analyzer AC220V / 50Hz 1PH 10A Power Supply
Features Gallery Product Description Request A Quote
Max. Test Width: 650mm
Peel Test Range: 0-650mm
Max. Test Thickness: 120mm
Type: Digital
Data Storage: 1000 Groups
Power Supply: AC220V/50Hz 1PH 10A
Weight: 25Kg
Product Name: Peel Strength Tester
High Light:

Adhesive Tape Peel Strength Analyzer


AC220V Peel Strength Analyzer


Peel Strength Tester 1PH

Basic Infomation
Place of Origin: Guangdong
Brand Name: Pootab
Model Number: PT-6086
Payment & Shipping Terms
Packaging Details: Negotialble
Payment Terms: Negotialble
Product Description

Product Description:

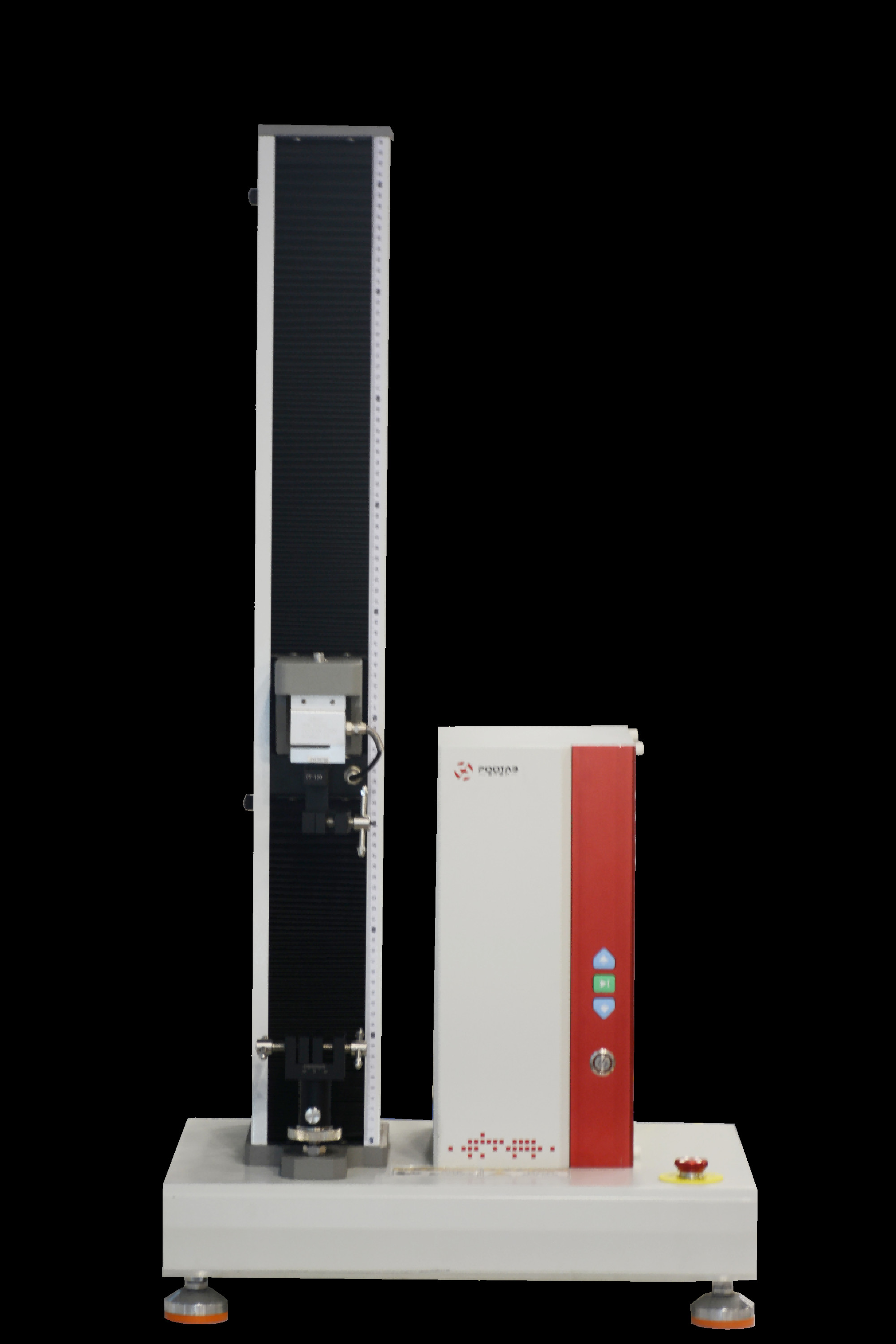

PT-6086 Computer System Peel Strength Testing Machine
This testing machine is specially designed and developed by our company for adhesive tape and adhesive industry. It can perform various peel strength tests in different methods. This includes 180˚, 90˚, T-Shape along with Floating Roller Method (for high-strength adhesives). Furthermore, it is suitable for adhesive tensile shear strength, splitting strength and other relevant tests. Accessories to perform these tests can be bought separately.


  • Peel Strength Analyzer: Peel Strength Tester
  • Power Supply: AC220V/50Hz 1PH 10A
  • Resolution: 1/500
  • Peel Test Range: 0-650mm
  • Dimension: 570*470*1200mm

Technical Parameters:

Parameter Value
Power Supply AC220V/50Hz 1PH 10A
Type Digital
Peel Test Range 0-650mm
Max. Test Thickness 120mm
Max. Test Width 650mm
Accuracy 0.5%
Product Name Peel Strength Tester
Data Storage 1000 Groups
Dimension 570*470*1200mm
Unit N/Kg/Lb


The Peel Strength Analyzer from Pootab is the perfect solution for testing the peeling strength of materials. Model PT-6086 has a maximum test width of 650mm and is made in Guangdong, with an AC220V/50Hz 1PH 10A power supply. This digital type tester has a 1000 groups data storage capacity and is ideal for a variety of industries. The Pootab PT-6086 Peel Strength Analyzer helps to accurately measure the peeling strength of materials used in packaging, printing, and paper products. It is easy to use and the results are reliable and reproducible. It is available in a variety of price and packaging options and the minimum order quantity is negotiable.


Support and Services:

Peel Strength Tester Technical Support and Service

The Peel Strength Tester is a reliable and easy-to-use instrument used to measure the strength of adhesive bonds. We are committed to providing quality technical support and services to our customers.

Technical Support

We offer comprehensive technical support for our Peel Strength Tester. Our technical support team is available to answer any questions you may have regarding the operation and maintenance of the product. Our team is also happy to provide troubleshooting advice and assistance if you experience any issues with your Peel Strength Tester.


In addition to providing technical support, we also offer a variety of services for the Peel Strength Tester. We offer calibration services to ensure that your instrument is performing accurately. We also offer repair services if your Peel Strength Tester is damaged or malfunctioning. Finally, we offer preventative maintenance services to keep your instrument in optimal working condition.


Packing and Shipping:

The Peel Strength Tester is expertly packaged and shipped for safe delivery to its destination. The packaging and shipping process includes the following steps:

  • The Peel Strength Tester is carefully wrapped in bubble wrap to minimize any potential damage.
  • The device is then placed in a custom-designed box to ensure maximum protection.
  • The box is sealed with heavy-duty tape to protect the contents from any tampering.
  • The box is then shipped to its destination using a reliable courier service.


Q1: What is the brand name of this product?
A1: The brand name of this product is Pootab.
Q2: What is the model number of this product?
A2: The model number of this product is PT-6086.
Q3: Where is this product manufactured?
A3: This product is manufactured in Guangdong, China.
Q4: What is the minimum order quantity?
A4: The minimum order quantity is negotiable.
Q5: What is the price of this product?
A5: The price of this product is negotiable.
