Home /Products/Lab Coating Machine/PT-8211 Microcomputer Packaging Container Compression Testing Machine

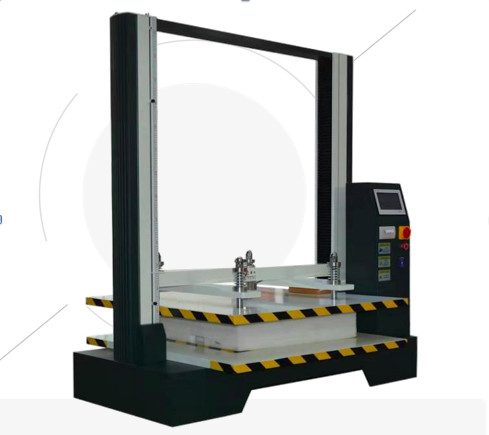

PT-8211 Microcomputer Packaging Container Compression Testing Machine

1 P
MOQ
Negotiation
Price
PT-8211 Microcomputer Packaging Container Compression Testing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Capacity Selection: 1000, 2000, 5000, 10000kg, Any One Of Them
Display LCD Display: High-precision Measurement And Control System
Force Measurement Accuracy: Better Than ±1.0%
Force Measurement Resolution: 1/10,000
Effective Force Measurement Range: 1~100%F.S
Deformation Indication Accuracy: Better Than ±1.0%
Highlight:

Microcomputer Packaging Container Compression Testing Machine

,

Micro Computer Container Compression Tester
Basic Infomation
Place of Origin: Dongguan , China
Brand Name: PT
Certification: CE / ISO9001 / FDA
Model Number: PT-8211
Payment & Shipping Terms
Packaging Details: Negotiation
Delivery Time: Negotiation
Payment Terms: T/T
Supply Ability: 20 units per month
Product Description

PT-8211 Microcomputer Packaging Container Compression Testing Machine​


Design standards:


TAPPI T804, JIS Z0212, ISO2872, NF H13-001, CNS 2236/3511


Application:


PT-8211 microcomputer packaging container compression testing machine is suitable for compression and pressure holding tests of various packaging bodies and cartons. The test results can be used as an important reference for the height of finished packaging boxes stacked in the factory or as an important basis for designing packaging boxes.


Parameter

PT-8211M

PT-8211A

PT-8211B

PT-8211C


Model PT-8211M PT-8211A PT-8211B PT-8211C
Capacity Selection 1000/2000/5000/10000 kg (selectable) 1000/2000/5000/10000 kg (selectable) 1000/2000/5000/10000 kg (selectable) 1000/2000/5000/10000 kg (selectable)
Display High-precision LCD control system High-precision LCD control system High-precision LCD control system High-precision LCD control system
Force Accuracy Better than ±1.0% Better than ±1.0% Better than ±1.0% Better than ±1.0%
Force Resolution 1/10,000 1/10,000 1/10,000 1/10,000
Effective Force Range 1~100% F.S 1~100% F.S 1~100% F.S 1~100% F.S
Deformation Accuracy Better than ±1.0% Better than ±1.0% Better than ±1.0% Better than ±1.0%
Test Speed Range 5~200 mm/min (adjustable) 5~200 mm/min (adjustable) 5~200 mm/min (adjustable) 5~200 mm/min (adjustable)
Test Space (W×D×H) 60×60×60 cm 80×80×80 cm 100×100×100 cm 120×120×120 cm 150×150×150 cm
Stop Methods Upper/lower limit safety setting, emergency stop button, programmable force/elongation setting, breakage detection Same as PT-8211M Same as PT-8211M Same as PT-8211M
Special Function Pressure holding test available Same as PT-8211M Same as PT-8211M Same as PT-8211M
Machine Dimensions (W×D×H) Approx. 92×60×144 cm Approx. 125×80×148 cm Approx. 142×100×171 cm Approx. 162×120×191 cm Approx. 200×150×218 cm
Machine Weight Approx. 150 kg Approx. 350 kg Approx. 400 kg Approx. 500 kg
Power Source DC Motor DC Motor DC Motor DC Motor
Power Supply 1PH, AC 220V, 50/60Hz, 15A (or specified) Same as PT-8211M Same as PT-8211M Same as PT-8211M



Product features:

The structure of this machine adopts aluminum extrusion sealing plate treated with high-grade paint, built-in high-precision, low-resistance, gap-free ball screw and guide column; the measurement and control system has high data acquisition and calculation speed, and the test results can be directly read on the LCD screen or printed out by the printer. It can carry out sustained pressure test.


PT-8211 Microcomputer Packaging Container Compression Testing Machine 0
