1000 KN Hydraulic Servo Push Pull Test Equipment Computerized For Building Materials

1000 KN Hydraulic Servo Push Pull Test Equipment Computerized For Building Materials
1000 KN Hydraulic Servo Push Pull Test Equipment Computerized For Building Materials

Large Image :  1000 KN Hydraulic Servo Push Pull Test Equipment Computerized For Building Materials

Product Details:

Place of Origin: Dongguan, Guangdong, China
Brand Name: PERFECT
Certification: ISO9001
Model Number: PT-1100-1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Strong Wooden Case
Delivery Time: 25-30 working days afer confirming order
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 30 Sets Per Month
Detailed Product Description
Max Test Force: 1000KN,100Tons Pressure Plate Size: 200*200mm
Speed ​​control Accuracy: ± 1% (0.01 10mm/min); ± 0.5% (10 ~~ 500mm/min) Tensile Test Space: 700mm
Compression Test Size: 600mm Machin Size: 1160×850×2200mm
High Light:

universal test equipment

,

universal tensile tester

1000KN Hydraulic Servo Universal Testing Machine Pull Press Tester Computerized





1000KN Universal Testing Machine Description :



1000KN Hydraulic Servo Universal Testing Machine complete specimen of stretch, and compression, and bent, and cut, multiple mechanical performance test .The machine is widely used in building materials, aerospace, machinery manufacturing, wire and cable, rubber, plastics, textiles, home appliances and other industry materials testing analysis are research institutions, universities, industrial and mining enterprises, technical supervision, inspection and arbitration departments of the ideal test equipment.





Universal Testing Machine Specifications:



Machine Name

1000KN Hydraulic Servo Universal Testing Machine Pull Press Tester Computerized

Model Number PT-1100-1000

Max. Test Force

100KN,100T

Piston Stroke

250mm

Deformation Measurement Accuracy

±0.5%



Constant force, Constant deformation, Constant Displacement Control Range

0.4% ~ 100% FS



Maximum Compression Space

700mm



Pressure Plate Dimensions



Ø 120mm

Strentch Test Spacing



600 mm



Branch Roll Width



100mm



Fulcrum Diameter



Ø 30 mm



Clamping Method

Hydraulic clamping



Dimensions

1130 × 650 × 2650mm



Weight 3200kg

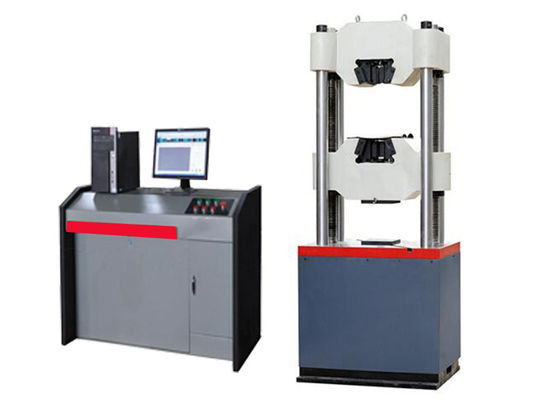

1000KN Universal Testing Machine Picture :


1000 KN Hydraulic Servo Push Pull Test Equipment Computerized For Building Materials 0
