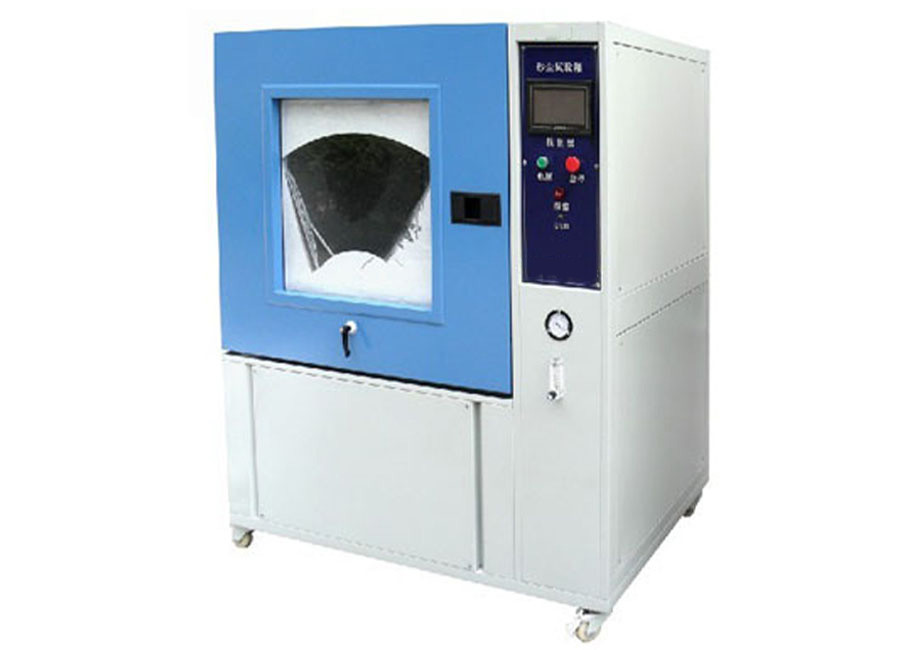

Climatic Resistant Sand Test Chamer Dustproof Testing Equipment For Lab
Dust Test Chamber Description :
Climatic Resistant Sand Test Chamer Dustproof Testing Equipment For Lab is designed according to GB4706, GB2423, GB7000.1, IEC60529, ect standards and meet the IPX5 and IPX6 dust test requirements.Sand DustProof Test Chamer is mainly used for testing control cabinet, household appliances, low voltage electric appliance, automobile, lamps and lanterns, motorcycle parts,ect outer shells. Test chamber pressure can be constant and changed, suitable for indoor low concentration dust pollution test, assessment sample in this environment of sealing and corrosion degree.
Climatic Resistant Sand Test Chamber Structure:
1, Chamber material: SUS#304 stainless steel;
2, Transparent window is convenient to observe specimen during testing;
3, Blow fan adopts stainless steel shell, high sealing and wing speed, low noise;
4, Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together.
Climatic Resistant Sand Test Chamber Specifications:
| Test chamber dimension |
PT-2055A :800*800*800mm PT-2055B: 800*1000*1000mm PT-2055C: 1000*1000*1000mm |
| Metal screen wire diameter | 50um |
| Screen line space | 75um |
| Environment temperature and humidity | 15~45°C, 45~75%RH |
| Dust(talcum powder) concentration | 2~4kg/m3 |
| Test time | Dust test time set freely, 0~999.9hr |
| Test dust | Dry talcum powder or portland cement |
| Test standards | GB4706,GB2423,GB7000.1,IEC60529 |
| Power | 3ψ 4W+G 380VAC 50HZ |
