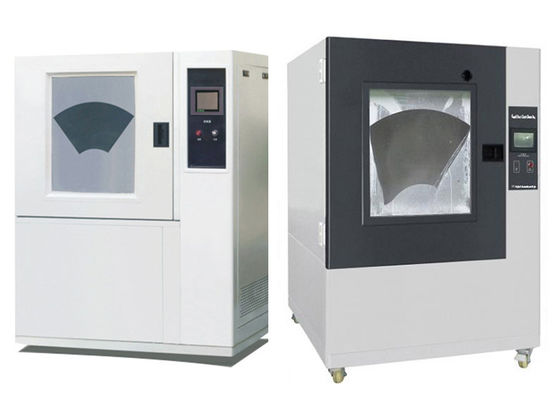

IP5X Testing Sand And Dust Chamber For Auto Part , Electronic Products

1 set
MOQ
negotiable
Price
IP5X Testing Sand And Dust Chamber For Auto Part  , Electronic Products
Features Gallery Product Description Request A Quote
Features
Specifications
Inner Size: 800*800*800mm Or Bigger
Metal Screen Wire Diameter: 50 Um
Power: Electronic, 380VAC 50HZ
Outer Dimension: 1130*1250*1650mm
High Light:

environmental testing chamber

,

rain test chamber

Basic Infomation
Place of Origin: Dongguan,Guangdong,China
Brand Name: PERFECT
Certification: ISO9001
Model Number: PT-2055
Payment & Shipping Terms
Packaging Details: strong wooden case
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 80 set per month
Product Description

IP5X Testing Sand Dust Resistant Chamber For Auto Part And Electronic Products





Sand Dust Resistant Chamber For Auto Part  Description :



IP5X Testing Sand Dust Resistant Chamber For Auto Part And Electronic Products is designed according to GB4706, GB2423, GB7000.1, IEC60529, ect standards and meet the IPX5 and IPX6 dust test requirements.Sand Dust Proof Test Chamer for electronic is mainly used for testing control cabinet, household appliances, low voltage electric appliance, automobile, lamps and lanterns, motorcycle parts,ect outer shells. Test chamber pressure can be constant and changed, suitable for indoor low concentration dust pollution test, assessment sample in this environment of sealing and corrosion degree.





Detailed Specifications:



Model NO PT-2055
Machine Name IP5X Testing Sand Dust Resistant Chamber For Auto Part And Electronic Products
Test chamber dimension

PT-2055A :800*800*800mm

PT-2055B: 800*1000*1000mm

PT-2055C: 1000*1000*1000mm

Metal screen wire diameter 50um
Screen line space 75um
Environment temperature and humidity 15~45°C, 45~75%RH
Dust(talcum powder) concentration 2~4kg/m3
Test time Dust test time set freely, 0~999.9hr
Test dust Dry talcum powder or portland cement
Test standards GB4706,GB2423,GB7000.1,IEC60529
Power 3ψ 4W+G 380VAC 50HZ





Dust Resistant Chamber For Auto Part Structure Features:



1. Inner material: Stainless steel (SUS #304)

2. Outer material: Powder painting steel plate

3. Imported touch screen programmable controller, can control dust blowing motor, dust vibration and test    time

4. With sealing good chamber door, has lock device and glass observation window.There is lamp and dust brush to ensure easy observation of inner chamber.

5. With strong dust blowing device and vibrator to ensure informity of each blowing.

6. Circulating air supplying device: Frequency converter and high pressure motor to ensure the air volume more precision.

7. Large diameter strong stainless steel air hose, covered with heating device, can heat and dry the test chamber dust.

8. Anti-explosion handle, easy operation, strurdy and durable.

9. Imported high-precision electronic temperature humidity sensor and air speed sensor.

10. Test sample differential pressure test device, can set pumping rate freely according to sample inquiry.

11. There is a ψ50mm test hole on the left chamber and equipped with port lid and silica gel chock plug. Through this hole can connect to outer test device.

12. There are casters with brake equipments and fixing foot pad to make the machine easy operation and level adjustment.

13. With voltage current indicator, equipped with corresponding sample DC12V power, DC24V / 20 a, interval, continuous

power supply adjustable. Dust concentration wind speed regulating function. May control test total time, blow the dust of time interval and blowing dust cycle and sample with the power source of the intermittent time.

14. Vacuum system: Equipped with pressure meter, air filtration, dust dehumidification system, regulating triple pieces,

connecting pipe (Vacuum pump should be prepare by customers)





Structeral Principle Display :





IP5X Testing Sand And Dust Chamber For Auto Part  , Electronic Products 0
