Program LCD Salt Spray Corrosion Test Chamber / Salt Fog Tester
PT-2070 salt spray test machine.pdf
The Salt spray tester is used to test the capacity of material and its protective layer to salt spray corrosion, as well as to compare the process quality of similar protective layer. It can also be used to test the salt spray corrosion resistance of some products. It can test the corrosion resistance after corrosion treatment for kinds of material surface treatment, such as coating, electroplating, organic and inorganic coatings, anodic treatment, rustproof oil and so on. Thus it can ensure the products quality. And the product is used to salt spray corrosion test of parts, electronic components, protective coating of metal material and industry products.
Corresponding standard of the Salt Water Spray Test Chamber for CASS, NSS Test :
1. GB/T 2423.17-1993
2. GB/T 2423.18-2000
3. GB/T 10125-1997
5. JIS H8502
7. IEC68-2-52 1996
10. CNS.4159 CASS Accelerated acetic acid copper salt spray test
11. GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test
1. The Salt Spray and Salt Fog Corrosion Test Chamber cover is made of transparent materials so that the operator can see the tested sample in the chamber and the spraying situation of the tested sample.
2. A waterproof structure is adopted between the chamber cover and chamber body and thus there is no salt spray overflow.
3. Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement.
4. Entire PP&PVC solid mechanical structure, resistance to hydrochloric acid, heat resistance and never aging, suitable for salt fog copper acetate, etc.
5. Patent nozzle and conical diffusion device makes the fall fog rapidly and evenly. With manual level automatic control mode, the biggest setting time can reach 9990 hours.
6. With automatic demist device, it can clear observe the tested products after the experience is finished.
7. Three complete temperature control systems (Saturated air temperature, temperature inside the chamber, test liquid temperature) ensure the consistency and standards of the test.
Parameters of salt spray test chamber :
A) salt water test: test temperature 35℃ Saturation drum temperature 47℃
B) Corrosion test: test temperature 50℃ Saturation drum temperature 63℃
|Salt fog settling amount||1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value)|
|Spray way||Air flow type, continuous and intermittent spray arbitrary setting|
|Chamber Materials||PVC plate,Corrosion resistant, anti - aging easy to clean, no leakage.|
|Control System||Japan "omron" or "Fuji" high precision digital display temperature controller, accurate control, stable, long-term operation does not drift.Temperature control adopts p. i. D + s. s. R, and the system is coordinated with the channel control, which can improve the stability and service life of control elements and interfaces.Touch setting, digital and direct display.With the function of P. I. D automatic calculation, it can reduce the inconvenience caused by human setting.In operation or setting, if there is an error, a warning signal will be provided.|
|Temperature and humidity control method||Completely independent system, does not affect salt spray test and control line.Temperature control output power is calculated by microcomputer to achieve high precision and high efficiency.The test temperature in the box is water jacket heating and humidifying, fast heating and even temperature distribution.|
|Manual support or automatic air support to open and close the box cover easily from the water seal structure, no salt mist overflow|
|Heating mode||Direct heating method, the heating speed can quickly reduce the standby time. When the temperature arrives, the constant temperature will be automatically switched.Pure titanium heat pipe, acid and alkali resistance, long service life.|
|Heating Parts||advanced titanium alloy protector tube, built-in far infrared heating core of nickel chrome alloy.Fast temperature rise, uniform temperature distribution;And compared with the heating power of glass reinforced plastic case jacket, it is about half less.|
|Tower spray system||The salt spray is evenly distributed, the sedimentation is freely regulated, and the nozzle has no crystallization|
1 V/O type shelf X12
2 Meter measuring cylinder X 1
3 .Temperature indicating needle X2
4. Collector X1
5. Glass spray nozzle X1
6. Humidity cup X1
7 .Glass filter X1
8. Spray tower X1
9 .Automatic water charging system X1
10. Fog dispersal system X1

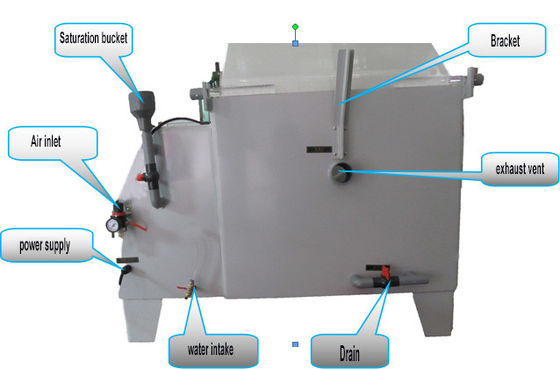

Detailed Photos :
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
15-20 days after confirming order,detail delivery date should be decided according to production season and order
