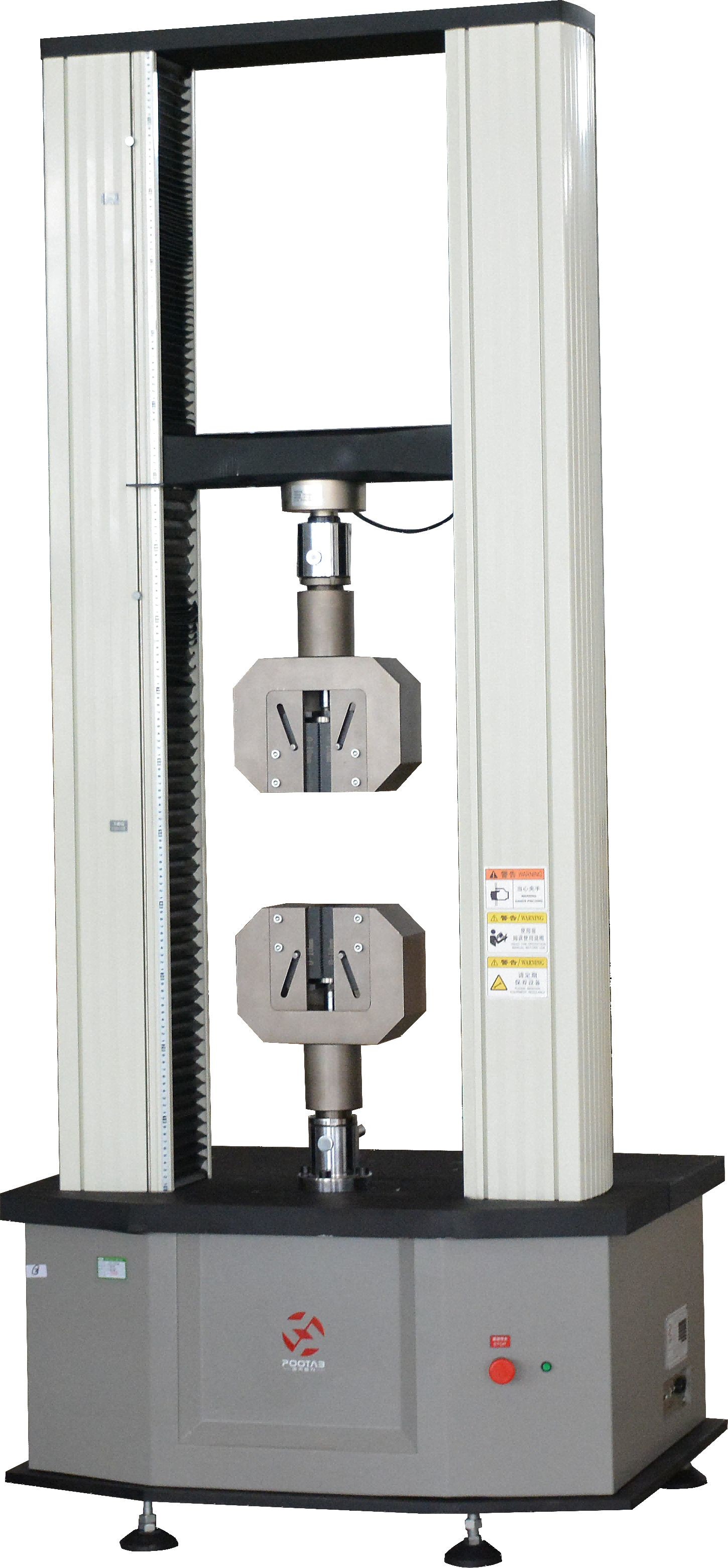

The PT-1100-100 Universal Testing Machine is a highly advanced and versatile computer-controlled system designed for conducting precise and reliable material testing. With its exceptional technology and robust construction, this testing machine offers a wide range of capabilities for performing tensile, compression, and bending tests on various materials.
Equipped with a professional testing software, the PT-1100-100 complies with numerous national standards, including GB228-87 and GB228-2002, and supports testing and data processing according to standards such as GB, ISO, JIS, ASTM, DIN, and user-defined specifications. This feature allows users to conduct tests in accordance with specific industry requirements and ensures accurate and consistent results.
The machine boasts several notable features that enhance its overall performance and precision. It has a maximum testing force capacity of 100kN, providing ample strength for demanding testing applications. The testing force measurement range spans from 0.4% to 100%, ensuring accurate and reliable force measurements across a wide spectrum.
| Parameter | Value |
|---|---|
| Maximum Testing Force | 100 kN |
| Testing Force Measurement Range | 0.4% - 100% |
| Testing Force Indication Accuracy | Better than ±1% of the indicated value |
| Testing Force Resolution | 1/300000 (full range or equivalent to 6 levels) |
| Beam Displacement Measurement Accuracy | Resolution higher than 0.0025 mm |
| Deformation Measurement Accuracy | ±0.5% (within the range of 0.2 - 10 mm) |
| Testing Speed Range | 0.01 - 500 mm/min, infinitely adjustable |
| Speed Control Accuracy | ±1% (0.01 - 10 mm/min); ±0.5% (10 - 500 mm/min) |
| Constant Force, Constant Deformation, Constant Displacement Control Range | 0.2% - 100% FS |
| Constant Force, Constant Deformation, Constant Displacement Control Accuracy | |
| - When set value < 10% FS | Within ±1.0% of the set value |
| - When set value ≥ 10% FS | Within ±0.1% of the set value |
| Deformation Rate Control Accuracy | |
| - Rate < 0.05% FS | Within ±2.0% of the set value |
| - Rate ≥ 0.05% FS | Within ±0.5% of the set value |
| Testing Space | A. Tensile Space: 600 mm B. Compression Space: 700 mm |
| Fixture Types | Wedge Fixture, Flat Jaw (0-7 mm), Round Jaw (Ø4-Ø7 mm) |
| Pressure Plate Size | φ100 mm |
| Bending Test Support Roller Spacing | 300 mm |
| Support Roller Width | 100 mm |
| Support Point Diameter | φ30 mm |
| Power Supply | Single-phase, 220V±10%, 50Hz, Power: 3 kW |
| Operating Environment | Ambient temperature -35°C, relative humidity not exceeding 80% |
| Main Unit Dimensions | Approximately 830 × 550 × 2000 mm |
| Weight | Approximately 720 kg |
The PT-1100-100 Universal Testing Machine finds extensive application in quality control, research and development, educational experiments, and material testing across various industries. It is suitable for use in manufacturing, construction, automotive, aerospace, and many other sectors.
We provide comprehensive support and services for the PT-1100-100 Universal Testing Machine. Our team is available to assist you with installation, training, troubleshooting, and any technical inquiries you may have. Additionally, we offer maintenance and calibration services to ensure the optimal performance and accuracy of the machine.
What is the maximum testing force of the PT-1100-100 Universal Testing Machine?
The maximum testing force is 100kN.
What is the testing speed range?
The testing speed can be adjusted from 0.01mm/min to 500mm/min.
Does it support constant force control?
Yes, the machine supports constant force, constant deformation, and constant displacement control.
