35kg Coating Device System With 300W Power 100-1000ml Coating Volume

35kg Coating Device System With 300W Power 100-1000ml Coating Volume
Features Gallery Product Description Request A Quote
Coating Volume: 100-1000ml
Coating Method: Spray
Weight: 35kg
Coating Area: 400*300mm
Coating Width: 100-1000mm
Coating Temperature: 5-35℃
Coating Speed: High
Coating Material: Polymer
High Light:

35kg Coating Device System


Polymer Spray Coating Device System


Polymer Coating Device 1000ml

Basic Infomation
Place of Origin: Guangdong
Brand Name: Pootab
Model Number: PT-5000B
Payment & Shipping Terms
Packaging Details: Negotialble
Delivery Time: 10-25 days
Payment Terms: Negotialble
Product Description

Product Description:

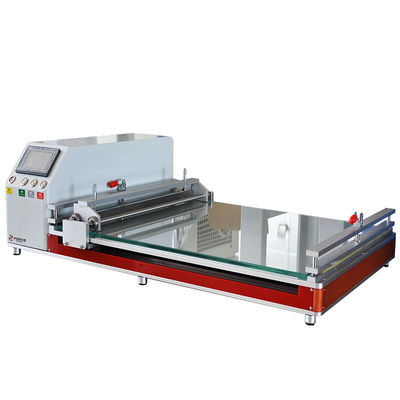

PT-5000B Laboratory Mini Coating Machine
The PT-5000B Laboratory Mini Coating Machine (Line Rod/Scraper Integrated Machine) is a small and adaptable equipment, which is designed for lab use. It has two coating methods available: line rod and scraper. With a precision of 0.002mm for line rod and 0.02mm for scraper, it provides multiple options for different coating accuracy needs. Furthermore, the coating speed of 1-5m/min is adjustable, giving users woeful control on the coating process. This machine has a coating area of 400x300mm (LxW) and the whole body dimension is 690x460x190mm (LxWxH). It is very lightweight with a weight of approximately 35kg, so it is easily portable and ideal for a lab environment. It also operates between 5°C to 35°C temperature range and ≤80% relative humidity. The power supply being AC220V, 50Hz with 300W power consumption, the PT-5000B is very energy efficient. The machine is equipped with a touch screen interface, which makes the control simple. Moreover, it has a special function of a glue tank design, which effectively improves coating system too. The coating range is adjustable from 10-3000μm depending on the specifications of the line rod. This machine is an excellent tool for lab laboratory coating applications.


Dual coating methods of line rod and scraper offer superior precision of 0.002mm (line rod) and 0.02mm (scraper), respectively. Adjustable coating speed of 1-5m/min ensures a high efficiency. The effective coating size is up to 400x300mm (LxW) and is supportive for laboratory applications. Compact and portable design makes it convenient for transportation and storage. User-friendly touch screen control interface ensures an easier and smoother operation. Special glue tank design offers enhanced convenience when using. The wide range of coating option is adjustable depending on line rod specifications.


Technical Parameters:

Parameter Description
Product Name Laboratory Coating System
Coating Volume 100-1000ml
Weight 35kg
Coating Temperature 5-35℃
Voltage Supply AC220V,50Hz
Coating Material Polymer
Power 300W
Coating Method Spray
Coating Pattern Line/ Circle/ Square/ Triangle/ Etc.
Coating Speed High
Control Type Touch Screen


PT-5000B Laboratory Mini Coating Machine

The PT-5000B Laboratory Mini Coating Machine is an ideal machine for various laboratory coating purposes. It comes with several features, making it an ideal choice for a variety of applications, including:

  • Thin film deposition.
  • Sample preparation for analysis.
  • Research and development.
  • Quality control testing.
  • Educational purposes.

The PT-5000B Laboratory Mini Coating Machine offers a great range of benefits as the machine has been designed with the user in mind. It is easy and quick to operate, and cost-effective, making it the perfect solution for any laboratory-based job requiring the application of a thin layer of material.


Support and Services:

Lab Coating Machine Technical Support and Service

At ABC Company, we provide comprehensive technical support and service for our Lab Coating Machine. Our team of experienced technicians is available to offer assistance with installation, maintenance, and repair of our equipment.

We offer both on-site support and remote technical assistance. Our on-site services include installation, maintenance, troubleshooting, and repair. Our remote technical support includes phone and email assistance and remote diagnostics.

Our experienced technicians are committed to providing the highest quality of service. They offer timely and accurate solutions to your technical problems, and strive to ensure that your Lab Coating Machine is operating correctly and efficiently.

If you need assistance with your Lab Coating Machine, please contact us at [email protected] or call us at (123) 456-7890.


Packing and Shipping:

The Lab Coating Machine is packaged in a sturdy box, lined with protective foam and filled with silica gel to ensure dryness and protection. The box is labeled with the product name and barcode. Once the product is packaged, it is shipped to the delivery destination via a reliable shipping service.



Q: What is the brand name of your Lab Coating Machine?
A: The brand name of our Lab Coating Machine is Pootab.
Q: What is the model number of your Lab Coating Machine?
A: The model number of our Lab Coating Machine is PT-5000B.
Q: Where is the place of origin of your Lab Coating Machine?
A: The place of origin of our Lab Coating Machine is Guangdong.
Q: What is the minimum order quantity of your Lab Coating Machine?
A: The minimum order quantity of our Lab Coating Machine is negotiable.
Q: What is the price of your Lab Coating Machine?
A: The price of our Lab Coating Machine is negotiable.
