Name: 1-1000 Cm2 Lab Coating Machine 3KW With Automatic Temperature Control
Brand: Pootab
SKU: PT-5000B
Rating: 4.6 (177 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Coating Area: 1-1000 Cm2

Coating Length: 100-1000 Mm

Coating Material: Powder, Liquid, Paste

Coating Method: Spray Coating

Coating Precision: ±1 μm

Coating Speed: 0-200 M/min

Coating Thickness: 0.1-10 μm

Coating Uniformity: ≥95%

Coating Width: 100-1000 Mm

Dimensions: 1000*800*1200 Mm

Max. Coating Weight: ≤10 G/m2

Max. Temperature: 200℃

Power Consumption: 3KW

Power Supply: AC220V/50Hz

Type: Lab Coating Machine

High Light:

10008001200 mm lab coater machine

Automatic Temperature Control laboratory coating machine

3KW lab coater machine

Basic Infomation

Brand Name: Pootab

Model Number: PT-5000B

Payment & Shipping Terms

Gallery

1-1000 Cm2 Lab Coating Machine 3KW With Automatic Temperature Control

Product Description

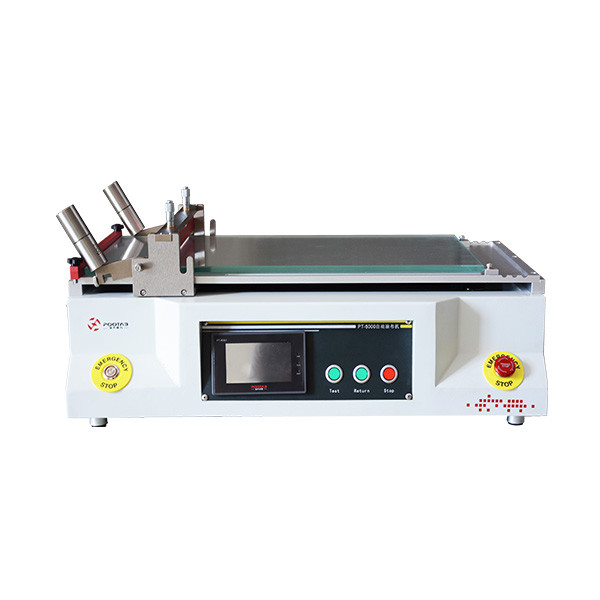

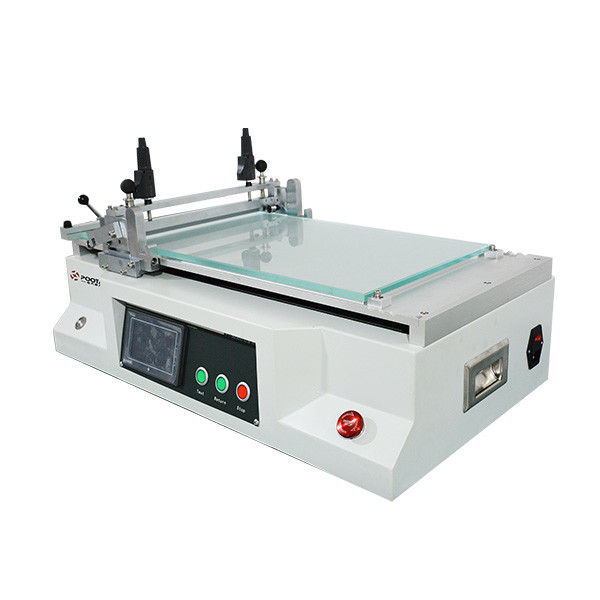

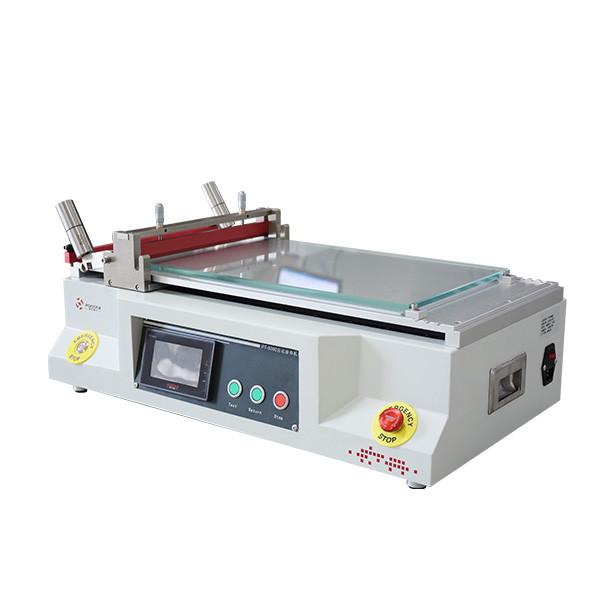

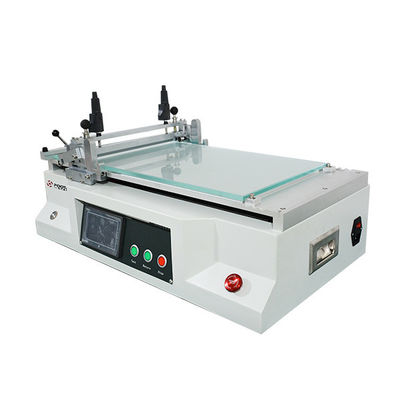

PT-5000B Lab Mini Coating Machine

Product Description:

The PT-5000B Laboratory Mini Coater is a compact and versatile coating machine designed for laboratory use. It features a combined wire rod and scraper design, offering precise and efficient coating capabilities. With its user-friendly interface and advanced control options, it provides reliable and consistent results for various coating applications.

Features:

Dual Coating Methods: The PT-5000B supports both wire rod and scraper coating methods, allowing flexibility in choosing the preferred technique for different materials and requirements.
High Coating Precision: Achieve a coating precision of 0.002mm with the wire rod method and 0.02mm with the scraper method, ensuring accurate and uniform coatings.
Adjustable Coating Speed: The machine offers a range of coating speeds from 1 to 5 meters per minute, allowing for precise control and optimization.
Large Coating Area: The effective coating size is 400x300mm (length x width), providing ample space for various sample sizes and shapes.
Compact and Portable: With dimensions of 690x460x190mm (length x width x height) and a weight of approximately 35kg, the PT-5000B is easy to transport and fits well in laboratory environments.
User-Friendly Touchscreen Control: The machine is equipped with a touchscreen interface for convenient operation and intuitive control.
Special Gel Tank Design: The PT-5000B features a unique gel tank design, enhancing coating efficiency and reducing material waste.
Wide Coating Range: The machine supports coating thicknesses ranging from 10 to 3000μm, catering to a wide range of coating requirements.

Technical Parameters:

Parameter	Specification
Model	PT-5000B
Coating Method	Wire Rod, Scraper
Coating Precision	0.002mm (Wire Rod),
	0.02mm (Scraper)
Coating Speed	1~5m/min (Linear
	adjustable)
Effective Coating	400x300mm (Length x
Size	Width)
Machine Size	690x460x190mm
	(Length x Width x Height)
Machine Weight	Approximately 35kg
Environmental	Temperature: 5°C to 35°C,
Requirements	Relative Humidity: ≤80%
Power Supply	AC220V, 50Hz
Power Rating	300W
Control Method	Touchscreen
Special Features	Gel Tank Design
Coating Range	See Wire Rod Specifications,
	Adjustable from 10-3000μm
Standard Accessories	1 x Domestic Wire Rod,
	1 set of Scraper (Width:
	400mm)

Applications:

The PT-5000B Laboratory Mini Coater is suitable for various coating applications in research laboratories, academic institutions, and quality control departments. It can be used for coating films, thin layers, conductive coatings, protective coatings, and other similar applications. Its versatility and precise coating capabilities make it an ideal choice for experimental and small-scale production settings.

Support and Services:

We provide comprehensive support and services to ensure the optimal performance and longevity of the PT-5000B Laboratory Mini Coater. Our dedicated team is available to assist with installation, training, troubleshooting, and maintenance. We also offer spare parts, accessories, and software upgrades to meet evolving customer needs.

FAQ:

What is the coating precision of the PT-5000B?
The PT-5000B offers a coating precision of 0.002mm with the wire rod method and 0.02mm with the scraper method.

Can the coating speed be adjusted?
Yes, the machine allows for adjustable coating speeds ranging from 1 to 5 meters per minute.

What are the power requirements for the PT-5000B?
The machine operates on AC220V, 50Hz power supply.

Does the PT-5000B have a touchscreen control interface?
Yes, the machine features a user-friendly touchscreen control interface for easy operation.

What is the weight and size of the PT-5000B?
The machine weighs approximately 35kg and has dimensions of 690x460x190mm (length x width x height).
