Multi-Function Lab Coating Machine 100-1000mm 20m/Min For Syrup Coating

Multi-Function Lab Coating Machine 100-1000mm 20m/Min For Syrup Coating
Features Gallery Product Description Request A Quote
Air Pressure: 0.4-0.6Mpa
Coating Area: 100-1000mm*100-1000mm
Coating Length: 100-1000mm
Coating Method: Spray Coating
Coating Precision: ±0.02mm
Coating Speed: 0-20m/min
Coating Thickness: 0.01-0.2mm
Coating Uniformity: ≥90%
Coating Width: 100-1000mm
Control System: PLC Control
Material: Stainless Steel
Name: Lab Coating Machine
Power: 220V/50Hz
Type: Coating Machine
Weight: 500kg
High Light:

Multifunction Lab Coating Machine


lab coater for Syrup Coating


lab coater 20m/min

Basic Infomation
Brand Name: Pootab
Model Number: PT-5000AZX
Payment & Shipping Terms
Product Description


Product Description:

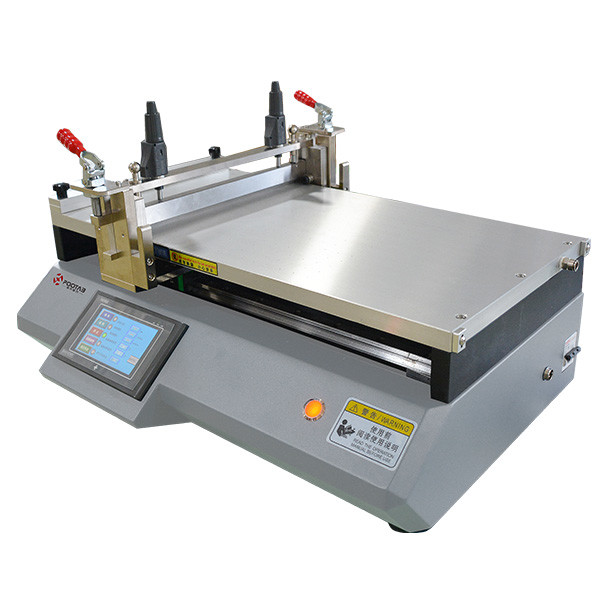

The PT-5000AZX Mini Coater (Wire Rod Scraper Vacuum Heating Type) is a versatile coating machine designed for various applications. It features a combination of wire rod and scraper coating methods, along with vacuum heating capabilities. With its precise control, adjustable coating thickness, and user-friendly design, it offers reliable and efficient coating performance for different materials and requirements.


  • Heating Temperature: Adjustable from 0 to 150°C, allowing for precise temperature control during the coating process.
  • Effective Coating Size: 400mm x 300mm (Width x Depth), providing a suitable coating area for various sample sizes.
  • Wire Rod and Scraper: The machine supports both wire rod and scraper coating methods, offering flexibility in choosing the preferred technique.
  • Adjustable Coating Thickness: Achieve coating thicknesses ranging from 0 to 5mm with the scraper method, providing versatility for different coating requirements.
  • Stainless Steel Scraper: The scraper is made of stainless steel and can be adjusted in height, ensuring uniform and precise coatings.
  • Coating Precision: The machine provides a coating precision of 0.01mm with the scraper method and 0.002mm with the wire rod method, offering high accuracy in coating applications.
  • Adjustable Coating Speed: The coating speed can be set from 0 to 200cm/min, allowing for control and optimization of the coating process.
  • Customizable Coating Length: The machine allows for adjusting the coating length based on the specific material requirements.
  • Digital Display: The coating time is displayed digitally, providing accurate control and monitoring during the coating process.
  • Vacuum Pump: The machine comes with a built-in vacuum pump, ensuring proper vacuum conditions for coating applications.
  • Compact and Portable: With dimensions of approximately 800mm x 380mm x 410mm (Width x Depth x Height) and a weight of approximately 44kg, the PT-5000AZX is compact and easy to move in laboratory environments.
  • Environmental Requirements: The machine operates within a temperature range of 5°C to 35°C and a relative humidity of ≤80%.
  • Power Supply: 1 Phase, AC220V, 50Hz
  • Power Rating: 1600W

Technical Parameters:


Parameter Specification
Model PT-5000AZX
Heating Temperature 0-150°C
Effective Coating 400mm x 300mm (W x D)
Coating Rod Length: 400mm, Material:
  Stainless Steel (Adjustable
  thickness, based on specifications)
Coating Thickness 0-5mm (Adjustable, Scraper)
Scraper Material Stainless Steel, Adjustable
Coating Precision 0.01mm (Scraper), 0.002mm
  (Wire Rod)
Coating Speed 0-200cm/min (Adjustable)
Coating Length Adjustable based on material
Coating Time Digital display, precise time
Vacuum Pump Included
Remarks Scraper included, Wire Rod
Machine Size Approximately 800mm x 380mm x
  410mm (W x D x H)
Machine Weight Approximately 44kg
Environmental Temperature: 5°C to 35°C,
Requirements Relative Humidity: ≤80%
Power Supply 1PH, AC220V, 50Hz
Power Rating 1600W



The PT-5000AZX Mini Coater is suitable for a wide range of coating applications in research laboratories, academic institutions, and industrial settings. It can be used for coating films, thin layers, conductive coatings, protective coatings, and other similar applications. Its versatility in coating methods and adjustable parameters make it ideal for experimental and production purposes.

Support and Services:

We offer comprehensive support and services to ensure the optimal performance and longevity of the PT-5000AZX Mini Coater. Our dedicated team provides installation assistance, training, troubleshooting, and maintenance services. We also offer spare parts, accessories, and software upgrades to meet evolving customer needs.


  1. What is the range of heating temperature for the PT-5000AZX?
    The PT-5000AZX Mini Coater offers an adjustable heating temperature range from 0 to 150°C.

  2. Can I adjust the coating thickness with the scraper method?
    Yes, the scraper method allows for adjustable coating thicknesses ranging from 0 to 5mm.

  3. What is the coating precision of the machine?
    The coating precision is 0.01mm with the scraper method and 0.002mm with the wire rod method. Please note that the actual precision may vary based on the selected specifications.

  4. Does the PT-5000AZX come with a vacuum pump?
    Yes, the machine is equipped with a built-in vacuum pump to provide the necessary vacuum conditions for coating.

  5. What are the power requirements for the PT-5000AZX?
    The machine operates on a 1 Phase, AC220V, 50Hz power supply.
