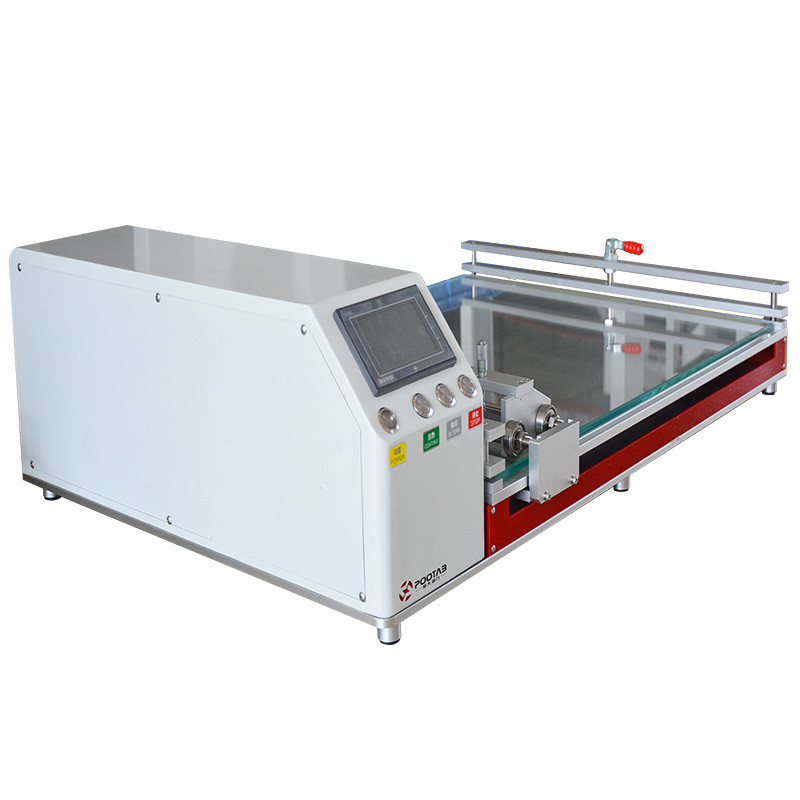

The PT-5000AG Mini Coater is a versatile and compact coating testing machine. It is designed with proprietary patents, providing space-saving features and an aesthetically pleasing design. The machine body is coated with automotive high-gloss spraying technology, ensuring corrosion resistance and durability.
Equipped with a PLC touch screen controller, the PT-5000AG allows for easy configuration and storage of multiple coating modes. The coating distance and speed can be adjusted according to specific requirements, ensuring consistent and precise coating parameters even when operated by different individuals at different times. The PLC touch screen control offers high precision and user-friendly operation, with speed units available in mm/min or in/min to accommodate various needs.
The PT-5000AG utilizes a stepper motor drive system, installed on the substrate for smoother operation, reduced noise, and minimized vibrations that could affect the coating process. This design also extends the lifespan of the machine and provides precise control over the coating stroke.
With a one-year warranty and imported components, the PT-5000AG is a reliable choice that meets various testing standards. It offers dual functionality, supporting both wire rod and scraper coating modes. The wire rod mode is compatible with all imported and domestic wire rods, while the scraper mode combines the advantages of wire rod and scraper coating, providing versatility and ease of operation.
The machine features a flip-up UV lamp (or hot air oven) design, allowing for direct curing of coatings on the machine after application. This eliminates the need to move coated products to a separate curing machine, preventing deformation of the coated substrate or coating flow, ensuring consistent coating results.
| Model | PT-5000AG |
| Control Features | |
| 1. Independent patented design | Saves space, smaller and more stylish machine |
| 2. Body with high gloss paint | Corrosion-resistant, rust-proof, sturdy and elegant |
| 3. PLC touch screen controller | Allows storage of multiple modes, adjustable coating |
| distance and speed in each mode | |
| 4. Precise and user-friendly | PLC touchscreen control with speed units (mm/min, |
| control | in/min) suitable for different needs |
| 5. Stepper motor drive | Smooth operation, lower noise, reduced vibration |
| impact on coating, longer lifespan, precise control | |
| 6. One-year warranty | Imported components for enhanced technical support |
| and compliance with various testing standards | |
| 7. Dual-purpose design | Wire rod mode suitable for all imported and domestic |
| wire rods, scraper mode combines advantages of wire | |
| rod and scraper, versatile and easy to operate | |
| 8. Integrated flip-top UV lamp | Allows curing directly on the machine after coating, |
| (or air-drying oven) design | avoids deformation of coated substrate and flow |
| of coatings during transfer to a separate curing | |
| machine, ensuring consistent coating results |
| Model | PT-5000AG |
| Effective Coating Size | 400×300mm (W×D) |
| Dimensions | Approximately 600×250×350 mm (W×D×H) |
| Coating Accuracy | ±1μm (Wire Rod), ±2μm (Scraper) |
| Coating Speed | 1~5m/min (Infinitely Adjustable) |
| Machine Weight | Approximately 20kg |
| Power Supply | 1PH, AC220V, 50Hz |
| Controller | PLC Touch Screen |
| Special Design | Optional Rubber Trough and Scraper |
| Coating Method | Wire Rod or Scraper Type |
| Coating Range | Adjustable from 1.5-3000μm |
| Configuration | One Wire Rod or One Set of Scraper (Width: 200mm) |
| Environmental Requirements | Temperature: 5°C to 35°C, Relative Humidity ≤80% |
| Model | PT-GD |
| Effective Coating Width | 55mm, 100mm, 150mm, 200mm, 250mm, 300mm |
| Blade Material | Stainless Steel, with adjustable blade height |
| Coating Thickness | Adjustable from 10-3000μm |
| Accuracy | ±2μm |
| Dimensions (W×D×H) | 112×78×100mm, 112×123×100mm, 170×115×105mm, |
| 220×115×105mm, 270×115×105mm, 320×115×105mm | |
| Blade Unit Spacing | 10μm |
The PT-5000AG Mini Coater is suitable for various coating applications, including:
Research and development projects requiring precise evaluation of coating thickness differences
Coating experiments and testing in laboratories and production environments
Quality control and assurance in industries such as electronics, optics, and materials science
We provide comprehensive support and services for the PT-5000AG Mini Coater, including:
Technical assistance and consultation
Installation and setup guidance
Training on machine operation and maintenance
Spare parts and consumables supply
Repair and maintenance services
What is the warranty period for the PT-5000AG Mini Coater?
The PT-5000AG comes with a one-year warranty.
Can I adjust the coating distance and speed?
Yes, the PLC touch screen controller allows for easy adjustment of coating distance and speed according to your requirements.
What coating modes are available?
The PT-5000AG supports both wire rod and scraper coating modes, providing versatility for different applications.
Can I cure the coating directly on the machine?
Yes, the machine is equipped with a flip-up UV lamp or hot air oven, allowing for convenient curing of coatings without the need for additional equipment.
Is technical support available?
Yes, we provide technical assistance, installation guidance, training, and repair services for the PT-5000AG Mini Coater.
Please feel free to reach out to our support team for any further inquiries or assistance.
